Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 40 ton boom and underlift seperated tow truck
The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck, etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
Quick Details
|
Chassis Brand |
HOWO |
|
Max Lifting Capacity of Under Lift |
20000kg |
|
Max Towing capacity of under Lift |
40000kg |
|
Max Pulling Force of Winch |
40000kg |
| Max Lifting Capacity of Boom | 40000kg |
Applications
Rear towing wrecker truck trucks are usually operated by private businesses, except for major highways and toll roads, where the road authority may operate the tow trucks for that stretch of road. Businesses who operate a large fleet of vehicles, such as school bus companies or package delivery services, often own one or several tow trucks for the purposes of towing their own vehicles. Government departments with large fleets (such as the police departments, fire departments, transportation authorities and departments of public works of major cities) may similarly own tow truck(s). Police department tow trucks may also be used to impound other vehicles.
Competitive Advantages
|
|
|
|
A pair of training wheels makes towing working easily when wheels are damaged |
Extra Strength Winch with 21 meters steel cable |
|
|
|
|
Manual joystick with instructions on side body of the truck makes control work easily |
The tire belt keep car stability on wrecker truck |

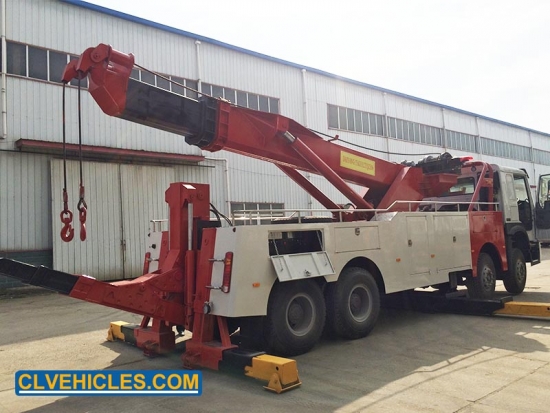

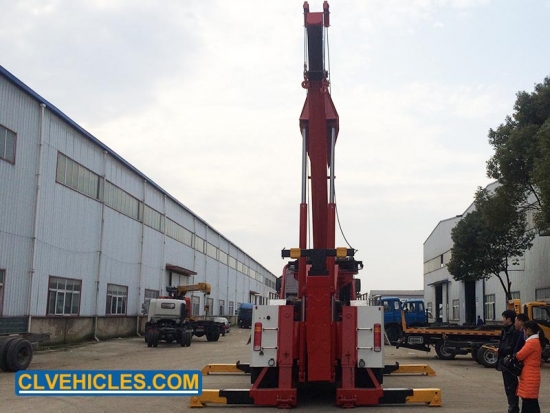

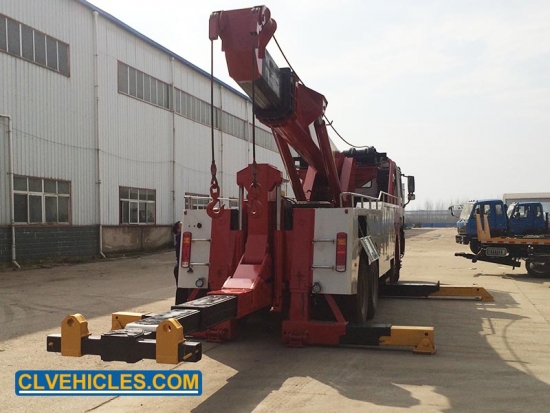

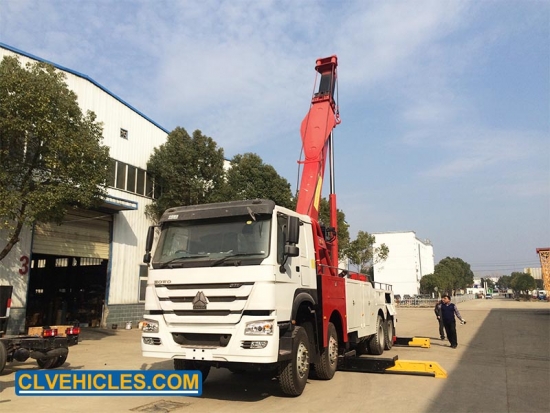

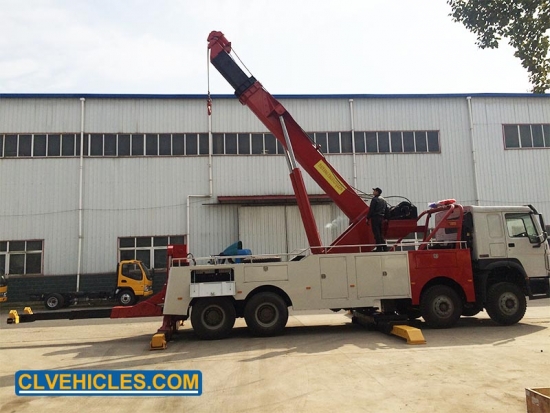

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
|||
|
Truck model |
CLW5310TQZZ4 |
||
|
Cab |
Sinotruck HOWO HW76 cabin ,, with power steering., with a/c，right hand drive |
||
|
Driving Type |
8*4 |
||
|
Max Speed (km/h) |
90 |
||
|
Overall dimension（mm） |
10685*2500＊3460 |
||
|
Mass in working order（ kg） |
19525 |
||
|
GVW（ kg） |
31000 |
||
|
Wheelbase（mm） |
1800+4600+1350 |
||
|
F/R track base（mm） |
2022/1830 |
||
|
F/R overhang（mm） |
1500/880 |
||
|
Approach/Departure Angel |
16/10 |
||
|
Tire |
12.00R20(10+1) |
||
|
Clutch |
Single plate friction type with air booster system |
||
|
Steering |
Power assisted steering. |
||
|
Gear box |
Manual Synchromesh HW19710, 10 SPEED FORWARD +2REVERSE |
||
|
Bridge |
Front axle |
HF9 |
|
|
Rear axle |
HC16 |
||
|
Enging |
Model |
WD615.47 |
|
|
Type |
cylinder water cooled diesel engine to be fitted with diesel particulate filter in-built. |
||
|
Exhaust（ml） |
9726 |
||
|
Max output power/rotate speed (hp /rpm ) |
371/2200 |
||
|
Max torque/rotate speed(N.m/rpm) |
1500/1100-1600 |
||
|
Braking system |
Service Brake |
Air over hydraulic dual circuit system |
|
|
Park Brake |
Mechanical, internal expanding acting on transfer output shaf |
||
|
Eletric system |
24v |
||
|
Upper-Body specification |
|||
|
Wrecker Type |
Hydraulic operated 3 telescope boom |
||
|
Boom structure |
Retracted - 40,000 kg |
||
|
Extended - 6,500 kg |
|||
|
Lifting height :12250mm |
|||
|
power Elevation |
|||
|
Power Extension |
|||
|
Dual Hydraulic Pump |
|||
|
360 degree sheave heads |
|||
|
Hydraulic Outriggers |
4 in-built with power elevation & extension. |
||
|
Hydraulic winches & steel cables |
Dual, 20,000 kg x 2-Planetary type Cable Type: Steel cable60m length , 20mm diameter |
||
|
Power take off |
PTO drive from transmission |
||
|
Wrecker Operation |
Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. |
||
|
Hydraulic System |
Suitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. |
||
|
Hydraulic Under Lift at Rear |
· Fully retracted 20000 kg · Fully extended 9,000 kg · Under Lift- 10° - 15 · Towing capacity : 40000kgs |
||
|
Safety Device |
|
||
|
Auto brake for winch |
Automatic safe brake in case winch / Engine fail. |
||
|
Hydraulic valves |
Necessary hydraulic pressure relief & lock valve/ valves |
||
