25 ton howo heavy duty integrated line of wrecker ​recovery truck

The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5251TQZZ5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD65500
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

25 ton howo heavy duty integrated line of wrecker recovery truck


The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck,  etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.


Quick Details



Chassis Brand HOWO

Max Lifting Capacity of Under Lift

25000kg

Max towing capacity of Under Lift

60000kg

Max Pulling Force of Winch

25000kg

Max Lifting Capacity of Boom

25000kg


Applications


Wrecker tow truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.



Competitive Advantages


A pair of training wheels makes towing working easily when wheels are damaged

Extra Strength Winch with 21 meters steel cable

Manual joystick with instructions on side body of the truck makes control work easily

The tire belt keep car stability on wrecker truck

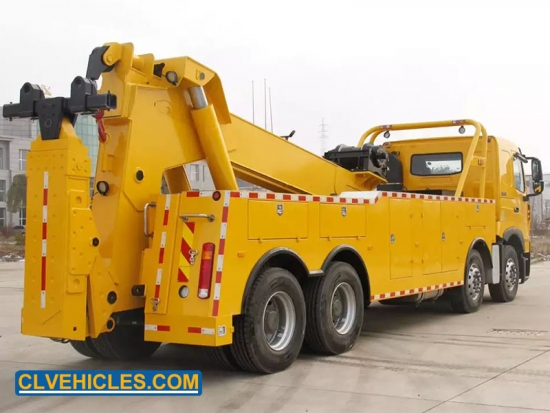

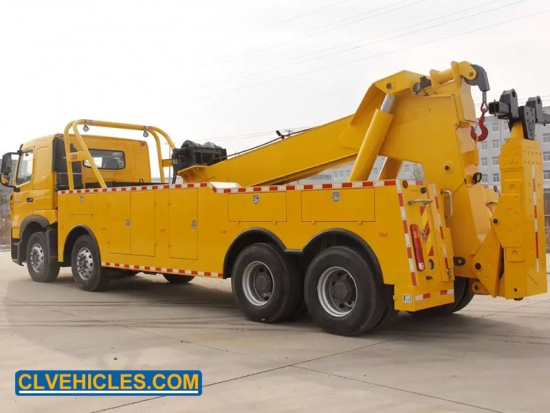

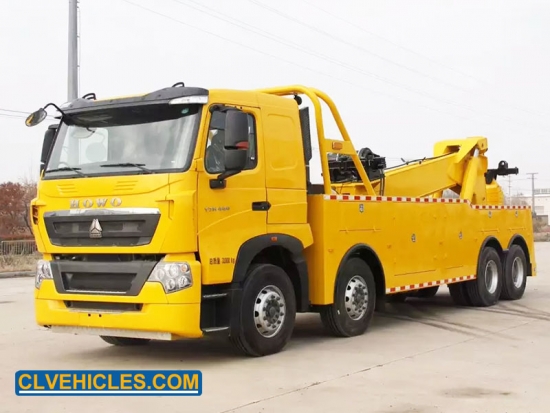

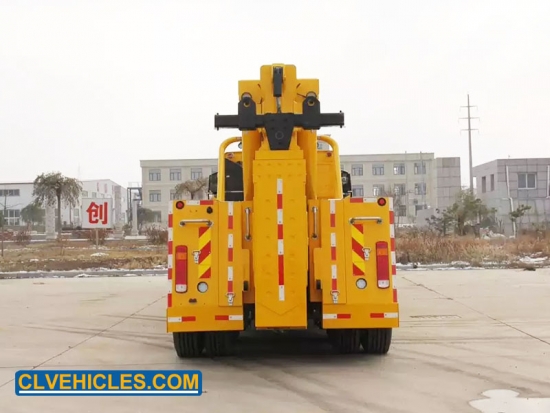

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Chassis model

CL5251TQZZ5

Cab

HOWO HW76cab, with power steering. Electronic flameout,left hand drive

Driving Type

8*4  left hand drive

Max Speed (km/h)

95

Overall dimension(mm)

11120×2500×3695

Mass in working order( kg)

33235

GVW( kg)

43000

Tank Capacity (L)

400

Wheelbase(mm)

1850+4600+1350

F/R track base(mm)

2022/1830

F/R overhang(mm)

1500/1000

Approach/Departure Angel

14/18

Tire

80R22.5

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

Manual Synchromesh

HW19710, 10 SPEED FORWARD +2REVERSE

Bridge

Front axle

HF7

Rear axle

ST16

Enging

Model

WD615.47

Horse power

370HP

Displacement

9726L

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body  specification

Hydraulic Under Lift at Rear

Fully Retracted Lifting weight(kg)

25000

Fully Extend Lifting Weight(kg)

9500

Max. Rated towing weight(kg)

60000

Max effective length of boom   (mm)

1460-3599

Extension traveling of boom     (mm)

1639

Boom structure

Maximum lifting height(mm)

6500

Fully Retracted Lifting weight(kg)

25000

Fully Extended Lifting weight(kg)

8000

Extension traveling of hoisting boom(mm)

3300

Hydraulic winches & steel cables

Type:

Planetary type

Quantity (set)

2

Max. Pulling power of winch (kN)

100

Length of steel cable(m)

60

Speed of winch (m/min)

5

Diameter of winch(cm)

0.22

Hydraulic Outriggers

Quantity

2

type

in-built with power elevation &extension

Power take off

Type

PTO drive from transmission

Wrecker Operation

Description

Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.

Hydraulic System

Description

uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.

Safety Device

Auto brake  for winch

Automatic safe brake in case winch / Engine fail.

Hydraulic valves

Necessary hydraulic pressure relief & lock valve/ valves
