8 ton FAW integrated line of wrecker towing truck

Wrecker truck basically is refitted from  the loading goods second class chassis, according to the wrecker truck's structure, it can be divided into towing, loading, lifting, rescue (single arm type and arms type) wrecker truck. It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5160TQZC5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD41500
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

8 ton FAW integrated line of wrecker towing truck


The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck,  etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.


Quick Details



Chassis Brand FAW

Max Lifting Capacity of Under Lift

8000kg

Max towing capacity of Under Lift

15950kg

Max Pulling Force of Winch

12000kg

Max Lifting Capacity of Boom

12000kg


Applications


Wrecker tow truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.



Competitive Advantages


A pair of training wheels makes towing working easily when wheels are damaged

Extra Strength Winch with 21 meters steel cable

Manual joystick with instructions on side body of the truck makes control work easily

The tire belt keep car stability on wrecker truck

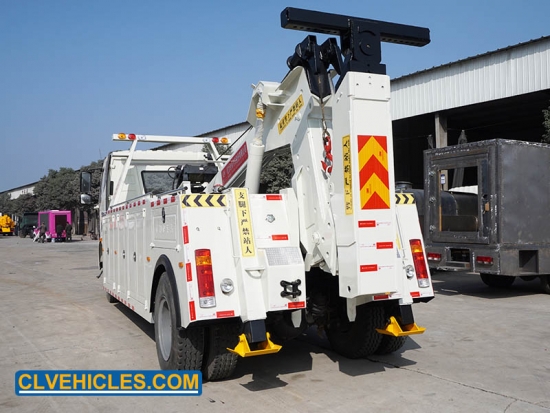

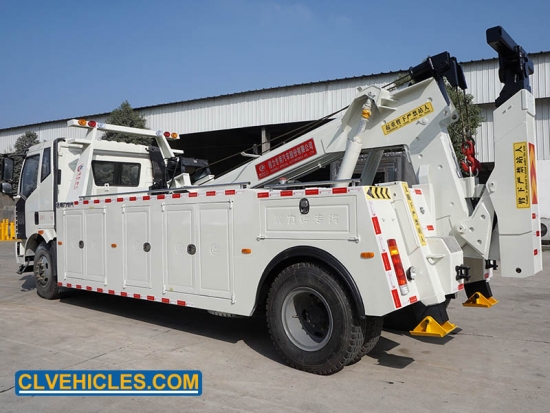

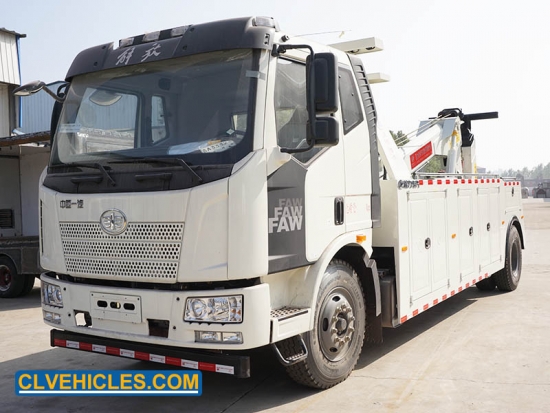

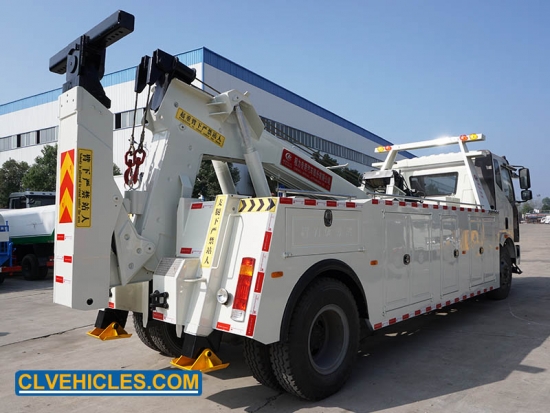

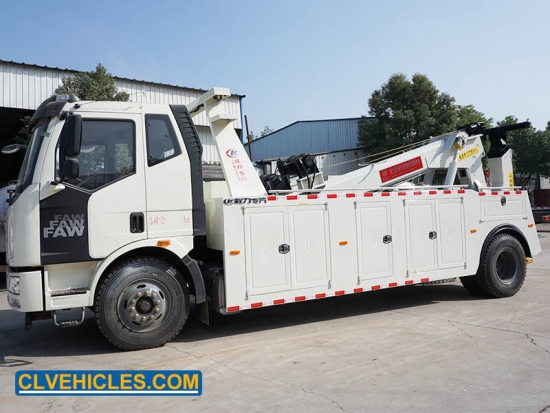

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Chassis model

CL5160TQZC5

Cab

FAWone and a half row cab, with power steering. Electronic flameout,left hand drive

Driving Type

4*2

Max Speed (km/h)

101

Overall dimension(mm)

8860×2500×2975(mm)

Mass in working order( kg)

13790

GVW( kg)

15795

Wheelbase(mm)

5800

F/R track base(mm)

1900/1800

F/R overhang(mm)

1400/1660(mm)

Approach/Departure Angel

18/8

Tire

10.00R20

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

6-speed

Bridge

Front axle

6T

Rear axle

10T

Enging

Model

CA4DK1-22E51

Horse power

220HP

Displacement

4764L

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body  specification

Hydraulic Under Lift at Rear

Fully Retracted Lifting weight(kg)

8000

Fully Extend Lifting Weight(kg)

4420

Max. Rated towing weight(kg)

15950

Max effective length of boom   (mm)

1170-2420

Extension traveling of boom     (mm)

1250

Boom structure

Maximum lifting height(mm)

4830

Fully Retracted Lifting weight(kg)

12000

Fully Extended Lifting weight(kg)

5750

Extension traveling of hoisting boom(mm)

2900

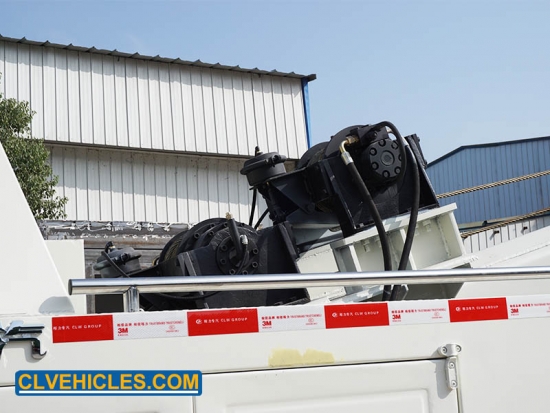

Hydraulic winches & steel cables

Type:

Planetary type

Quantity (set)

2

Max. Pulling power of winch (kN)

80

Length of steel cable(m)

30

Speed of winch (m/min)

5

Diameter of winch(cm)

0.16

Hydraulic Outriggers

Quantity

2

type

in-built with power elevation &extension

Power take off

Type

PTO drive from transmission

Wrecker Operation

Description

Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.

Hydraulic System

Description

uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.

Safety Device

Auto brake  for winch

Automatic safe brake in case winch / Engine fail.

Hydraulic valves

Necessary hydraulic pressure relief & lock valve/ valves
