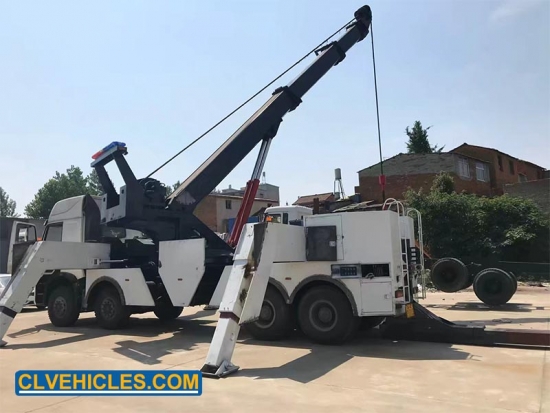

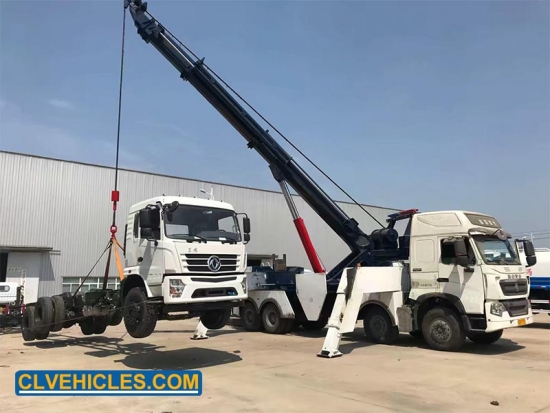

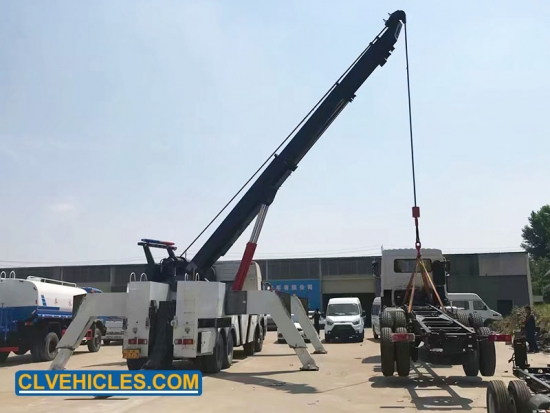

HOWO 50 ton heavy duty wrecker towing truck

This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5310TQZZ5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 105000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

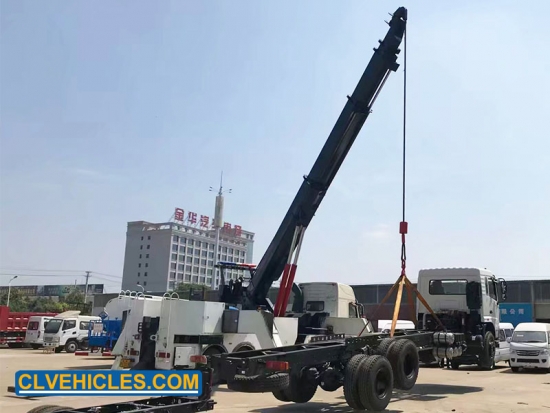

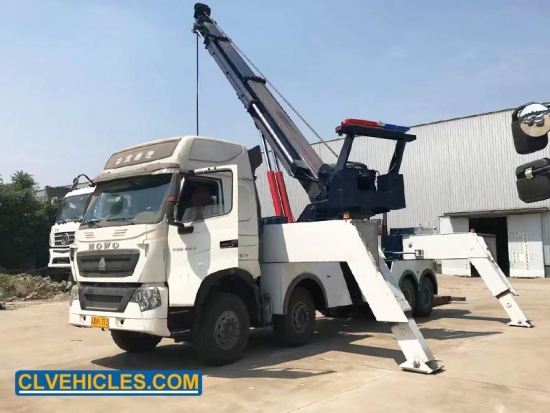

HOWO 50 ton heavy duty wrecker towing truck


The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck,  etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.

Quick Details


Chassis Brand

HOWO

Max Lifting Capacity of Under Lift

25000kg

Max Towing capacity of under Lift

50000kg

Max Pulling Force of Winch

50000kg

Max Lifting Capacity of Boom 50000kg


Applications


Wrecker tow truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.


Competitive Advantages

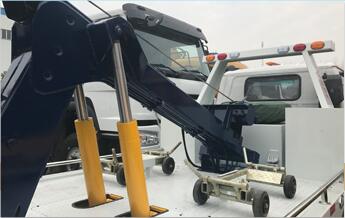

A pair of training wheels makes towing working easily when wheels are damaged

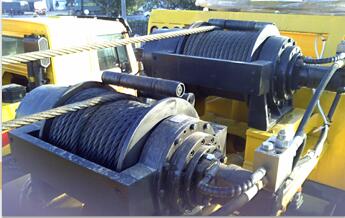

Extra Strength Winch with 21 meters steel cable

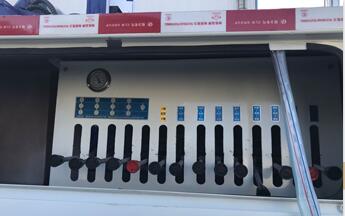

Manual joystick with instructions on side body of the truck makes control work easily

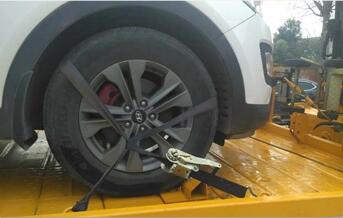

The tire belt keep car stability on wrecker truck

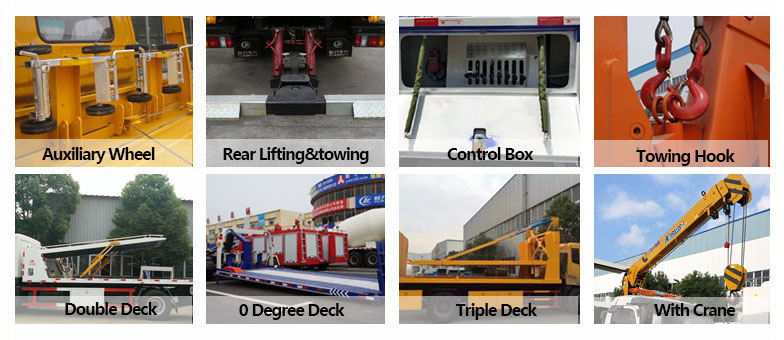

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Truck model

CLW5310TQZZ5

Cab

Sinotruck HOWO HW76 cabin ,, with power steering., with a/c,right  hand drive

Driving Type

8*4

Max Speed (km/h)

90

Overall dimension(mm)

10685*2500*3460

Mass in working order( kg)

19525

GVW( kg)

31000

Wheelbase(mm)

1800+4600+1350

F/R track base(mm)

2022/1830

F/R overhang(mm)

1500/880

Approach/Departure Angel

16/10

Tire

12.00R20(10+1)

Clutch

Single plate friction type with air booster system

Steering

Power assisted steering.

Gear box

Manual Synchromesh

HW19710, 10 SPEED FORWARD +2REVERSE

Bridge

Front axle

HF9

Rear axle

HC16

Enging

Model

WD615.47

Type

cylinder water cooled diesel engine to be fitted with      diesel particulate filter in-built.

Exhaust(ml)

9726

Max output power/rotate speed (hp /rpm )

371/2200

Max torque/rotate speed(N.m/rpm)

1500/1100-1600

Braking  system

Service Brake

Air over hydraulic dual circuit system

Park Brake

Mechanical, internal expanding acting on transfer   output shaf

Eletric system

24v

Upper-Body  specification

Wrecker Type

 Hydraulic operated 3  telescope boom

Boom structure

Retracted - 50,000 kg

Extended - 6,500 kg

Lifting height:12230mm

power Elevation

Power Extension

Dual Hydraulic Pump

360 degree sheave heads

Hydraulic Under Lift at Rear

Fully retracted 25000 kg

Fully extended 125000 kg

Under Lift- 10° - 15

Towing capacity :50000kgs

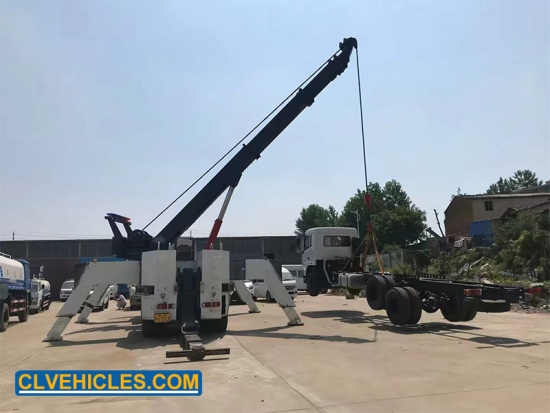

Hydraulic Outriggers

4 in-built with power elevation    & extension.

Hydraulic winches & steel cables

Dual,

25,000 kg x 2-Planetary type

Cable Type: Steel cable  60m length ,20mm diameter,

Power take off

PTO drive from transmission

Wrecker Operation

Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.

Hydraulic System

Suitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.

Safety Device



Auto brake  for winch

Automatic safe brake in case winch / Engine fail.

Hydraulic valves

Necessary hydraulic pressure relief & lock valve/ valves
