ISUZU FVR 18000 liter petrol tank truck
Very suitable for transporting and refueling gasoline and diesel for cars, big vehicles, motor, and other engineering mechanism.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The Fuel tanker truck is used for example to transport gasoline to filling stations.Tank trucks are constructed of various materials depending on what products they are hauling. These materials include aluminium, carbon steel, stainless steel, and fiberglass reinforced plastic (FRP).
Brand:
CLVEHICLES.COMModel No.:
CL5070GYYQMinimum Order Quantity:
1 UnitPrice:
USD 26000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

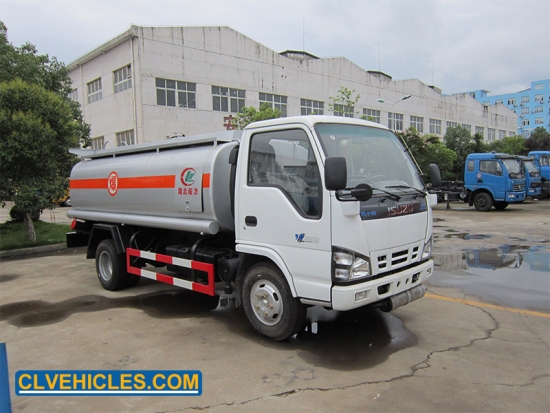

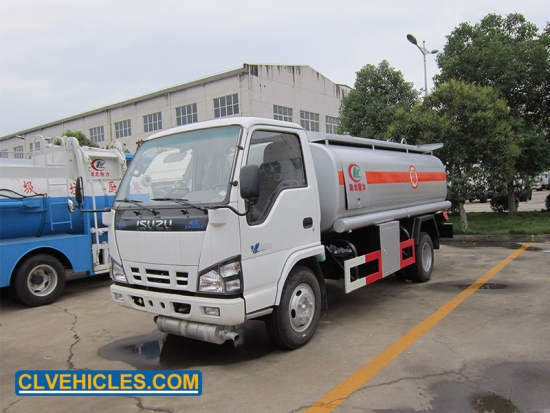

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcISUZU 600P 5000 liter oil tanker truck
The fuel tank truck is equipped with oiling machine, fueling gun, sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,safeguard system and so on.
Quick Details
Chassis Brand |
ISUZU 600P |
Fuel Tank Capacity |
5000L |
Material of Tank |
carbon steel ( stainless and aluminum optional ) |
Horsepower
|
120hp
|
Storage |
oil ,fuel ,diesel |
Filling system |
Bottom filling system |
Applications
Fuel tank truck (also called fuel dispensing truck ,oil transfer truck ,diesel truck ,petrol fuel tanker ,crude oil tanker truck , refueler tanker truck ,diesel fuel tanker ,oil tanker ) is used to transport oil , diesel , gasoline ,kerosene,etc. It can be divided into many compartments to transport different types of fuels ,lubricant ,crude oil ,alcohol. Oil pump equipped ,with pump in pump out function
|
|
The material of tank body is made of 4-6mm thick carbon steel with high quality . Other stainless steel or aluminum alloy is available. |
Can be designed to an independent sub-warehouse to transport different oil with the same time. |
|
|
All tankers can be equipped with computer and flow-meter |
European standard equipment for option. |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
Truck Specification |
||
Truck model |
CL5070GYYQ |
|
Cab |
ISUZU 600P CABIN |
|
Driving Type |
4*2 Left hand driving |
|
Max Speed (km/h) |
95 |
|
Overall dimension(mm) |
5990*2050*2650 |
|
GVW(kg) |
6435 |
|
Mass in working order(kg) |
3450 |
|
Tank Capacity (L) |
5000 |
|
Wheelbase(mm) |
3360 |
|
F/R track base(mm) |
1504/1425 |
|
F/R overhang(mm) |
1015/1890 |
|
Approach/Departure Angel |
24/14 |
|
Tire |
6.50-16 (6+1) |
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
Steering |
Hydraulic steering with power assistance |
|
Gear box |
MSB 5-speed |
|
Bridge |
Front axle |
2T |
Rear axle |
3.5T |
|
Enging |
Model |
4KH1-TCG4O |
Fuel Type |
Diesel fuel |
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
Exhaust(ml) |
2999 |
|
Max output power/rotate speed (hp /rpm ) |
120/2900 |
|
Max torque/rotate speed(N.m/rpm) |
290/1500-2900 |
|
Braking system |
Service Brake |
Oil brake |
Park Brake |
Spring energy |
|
Eletric system |
24v |
|
Upper-Body specification |
||
Volume of tank |
5m3 |
|
Tank shape |
Quadrate |
|
Material of tanker |
5mm carbon steel |
|
Color of the tanker |
According your demands |
|
Transport medium |
Diesel oil, gasoil or others |
|
Fittings |
PTO oil pump |
|
An aluminum alloy European standard manhole |
||
Fuel hose box fitted on both side of tank |
||
An aluminum alloy sea valves |
||
Two Fire extinguisher |
||
One spare tyre |
||
Ladder: For access to top of tank complete with cat walk on top of tank |
||
Heavy-duty rear bumper |
