Dongfeng KINGRUN 15000 liter refueler truck

Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5150GYYD3
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 22100
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

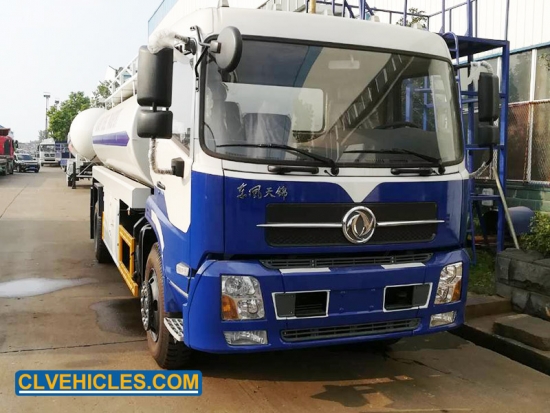

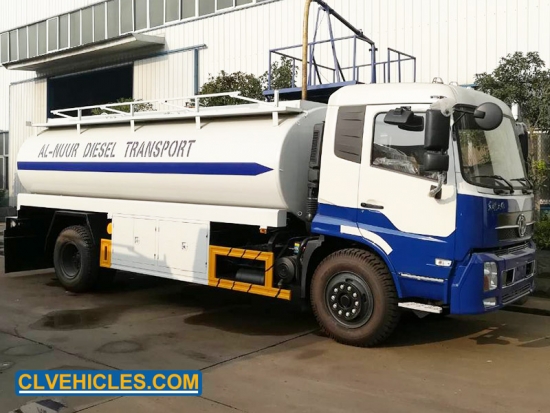

Dongfeng KINGRUN 15000 liter refueler truck


The fuel tank truck is equipped with oiling machine, fueling gun, sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,safeguard system and so on.


Quick Details


Chassis Brand

DONGFENG KINGRUN

Fuel Tank Capacity

15000L

Material of Tank

carbon steel ( stainless and aluminum optional )

Horsepower


190hp

Storage

oil ,fuel ,diesel

Filling system

Bottom filling system


Applications



Fuel tank truck (also called fuel dispensing truck ,oil transfer truck ,diesel truck ,petrol fuel tanker ,crude oil tanker truck , refueler tanker truck ,diesel fuel tanker ,oil tanker ) is used to transport oil , diesel , gasoline ,kerosene,etc. It can be divided into many compartments to transport different types of fuels ,lubricant ,crude oil ,alcohol. Oil pump equipped ,with pump in pump out function




Competitive Advantages


The material of tank body is made of 4-6mm thick carbon steel with high quality . Other stainless steel or aluminum alloy is available.

 Can be designed to an independent sub-warehouse to transport different oil with the same time.

All tankers can be equipped with computer and flow-meter

European standard equipment for option.


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Chassis model

CL5150GYYD3

Cab

Dongfeng KINRUN  cab, with power steering.

Driving Type

4*2 Left hand driving

Max Speed (km/h)

99

Overall dimension(mm)

8500*2480*3100

GVW(kg)

16000

Mass in working order(kg)

7805

Tank Capacity (L)

15000

Wheelbase(mm)

4700

F/R track base(mm)

1900/1800

F/R overhang(mm)

1205/2905

Approach/Departure Angel

25/14

Tire

10.00R20 (6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

DF6S9000D

Bridge

Front axle

6T

Rear axle

10T

Enging

Model

B190-33

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

5900

Max output power/rotate speed (hp /rpm )

190/2500

Max torque/rotate speed(N.m/rpm)

640/1500

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Upper-Body  specification

Volume of tank

15m3

Tank shape

Quadrate

Material of tanker

5mm carbon steel

Color of the tanker

According your demands

Equipment

Oil pump

Transport medium

Diesel oil, gasoil or others

Fittings

PTO oil pump

An aluminum alloy European standard manhole

Fuel hose box fitted on both side of tank

An aluminum alloy sea valves

Two Fire extinguisher

One spare tyre

Ladder: For access to top of tank complete with cat walk on top of tank

Heavy-duty rear bumper
