20 40 feet skeleton container skeletal semi trailer

This series container semi trailers are mainly used in the port for containers or bulk cargo's transportation.The suspensions can be: Air suspension, mechanic (leaf spring suspension),bogie suspension, etc.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL9350TJZZ2
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 14500
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

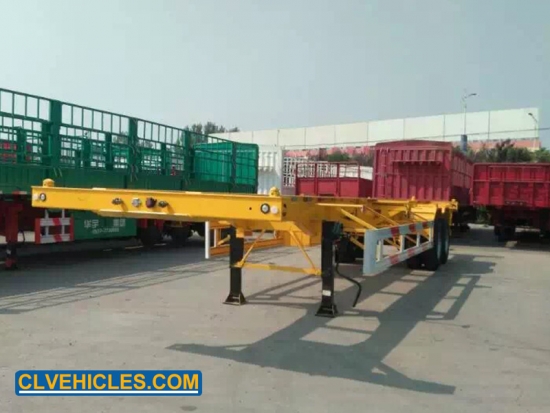

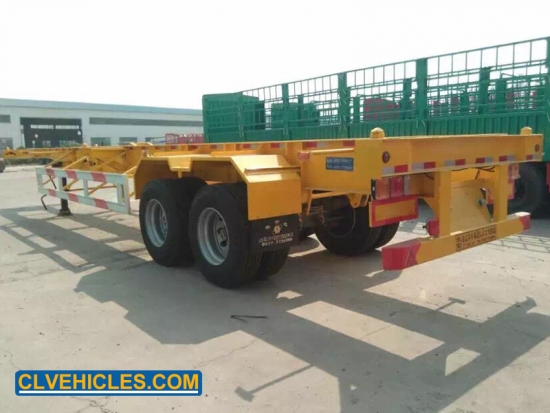

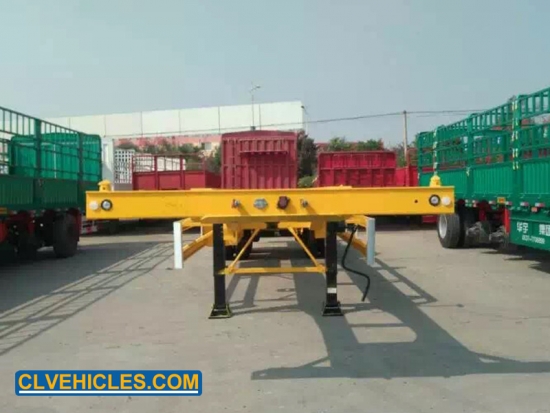

20 40 feet skeleton container skeletal semi trailer


Container skeleton truck semi trailer is using to transport containers, such as 20ft,40ft, it can carry up to 60tons, the frame is heavy duty and extra durability designed l beam; opting for high tensile steel with T700, welded by automatic submerged-Arc processes. guarantee the quality and stability.


Quick Details



Semi-trailer type Skeleton Semi Trailer
Length 12450mm
Loading capacity 45000kg

Axle

FUWA


Applications


The skeleton semi trailer is specially designed to carry various cargo containers.You can choose to use you load trailer transport one 20 inch ,40inch or 45 inch container or two 20 inch containers at one time.The only difference that your choice makes is the number of locks required for specific transportation applicatio


CLVEHICLES.COM Semi-trailer


Competitive Advantages

1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2>The most skilled workers make welding of this flatbed trailer more frequent and strong.

3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.



Product Details


 Semi-trailer


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Product

skeleton semi-trailer

Tare Weight

About 5.5T

Dimension
(The exact size depends on final design)

Length: 12450mm(outside dimension)

Width:2490mm(outside dimension)

Height:1557mm(outside dimension)

Loading Capacity

45t

 Container   specification

Twist locks

Type

Lifting type or twist screw type

Number

12

Running mechanism

Side beam

Thickness

16mm

Material

Q235Carbon steel

Main beam

Height

500mm

Plate

upper plate is 16mm, middle plate is 8mm, down plate is 16mm

Material

Q235Carbon steel

Axle

Brand

FUWA

Type

13T

Number

2 pcs

Rim

Type

9.0-22.5

Number

8pcs

Tyre

Brand

Doubles star

Type

12R22.5

Number

8pcs

Suspension

American type mechanical suspension for 3 axle

Spring leaf

Leaf width

90mm

Leaf thickness

13mm

Layer/set

10 Layer

King pin

Type

Bolts type

Diameter

2.0 inch

Brake system

Air tank

45L air tanks

Brake chamber

WABCO  6RELAY VALVE  double Spring brake chamber

ABS

Without

Landing gear

Brand

ZHONGXING BRAND

Type

Two speed manually operating , heavy duty landing gear 28T

Accessories

Spare tyre carrier

1 set

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness) and quick change type

Tool box

One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
