Heavy Duty Tri Axle 40Ton Removable Dump Semi Trailer
High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Self-discharging semi-trailer is suitable for the transportation of loose bulk goods such as coal, ore and building materials.
Brand:
CLVEHICLES.COMModel No.:
CL9400Z3Minimum Order Quantity:
1 UnitPrice:
USD 26000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

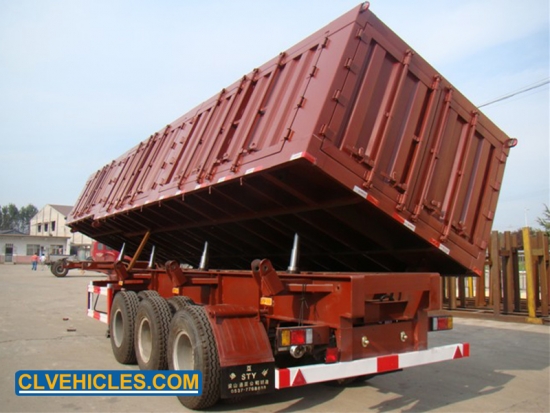

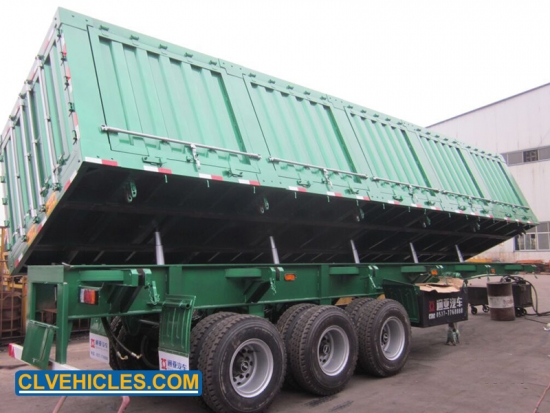

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc3 Axle 60ton Coal Side Lifting Dump Semi Trailer
The self-unloading semi-trailer, also known as the dump truck and engineering vehicle, consists of an automobile chassis, a hydraulic lifting mechanism, a suction device and a cargo compartment.
Quick Details
| Semi-trailer type | Tipper semi-trailer |
| Length | 9200mm |
| Loading capacity | 70000kg |
|
Axle |
FUWA |
Applications
Dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. One type belong to heavy duty dump trailer, undertake the transport of large mining and engineering task, usually matched with excavator. The other type belong to light and ordinary dump trailer, mainly undertakes the transport of sand, soil, coal and other loose goods, usually matched with wheel loader.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this flatbed trailer more frequent and strong.
3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Product |
Carbon steel dumpSemi trailer |
|||
|
Loading capacity |
70T |
|||
|
Size |
9200x2740x3600mm |
|||
|
Chassis (I beam)
|
Top flange plate |
Material and thickness |
Q345B 14mm |
|
|
Bottom flange plate |
Material and thickness |
Q345B 16mm |
||
|
Middle flange plate |
Material |
Q345B |
||
|
Thickness |
10mm |
|||
|
Height |
500mm |
|||
|
Side beam height |
Type |
U steel |
||
|
Bending parts |
||||
|
Height |
|
|||
|
Box
|
Thickness |
4mm |
||
|
Height |
1600mm |
|||
|
Material |
Q345B |
|||
|
Floor |
Material |
Carbon steel Q345B |
||
|
Thickness |
6mm |
|||
|
Floor type |
Plate |
|||
|
Running mechanism
Running mechanism
|
Cylinder |
HYVA 196-7300 |
||
|
Axle |
Brand |
Fuwa |
||
|
Type |
13 Ton |
|||
|
Number |
3pcs |
|||
|
Rim |
Type |
9.00 |
||
|
Number |
13pcs |
|||
|
Tire |
Brand |
Trianglebrand |
||
|
Type |
12R22.5 |
|||
|
Number |
13pcs |
|||
|
Suspension |
Mechaniacal suspension |
|||
|
Spring leaf |
Leaf width |
90mm |
||
|
Leaf thickness |
16mm |
|||
|
Layer/set |
10 Layer |
|||
|
King pin |
Type |
Bolts type |
||
|
Diameter |
2 or 3.5 inch |
|||
|
Brake system |
Air tank |
45L air tanks |
||
|
Brake chamber |
6 double spring brake chamber |
|||
|
ABS |
Without |
|||
|
Landing gear |
Brand |
FUWA |
||
|
Type |
28T two speed |
|||
|
Accessories
|
Spare tire carrier |
2sets |
||
|
Light |
LED light |
|||
|
Voltage |
24v |
|||
|
Receptacle |
7 ways(7wire harness)and quick change type |
|||
|
Tool box |
One piece |
|||
|
Paiting |
Polyurethane paint&anti-rust primer&sand blasting |
|||
|
Tools for trailer |
Head wrech ;spare wheel crank ; onefire extinguisher; Operation Manual |
|||
High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
Dump box dimensions and U-shape, box thickness, hydraulic cylinder and optional accessories are all customized by different cargo needs which build modern transportation.
Dump trailer adopts the rollover and the back-turning self-unloading mode, which can effectively transport the bulk goods in bulk
Dump trailer use high-strength international steel, light weight, guarantees deformation resistance (no permanent deformation), and shock resistance.
Dump trailer has a simple structure, convenient disassembly and maintenance, and reduced maintenance costs
