With the development of the city scale and the acceleration of urbanization nationwide, the demand for fire engines in various places is gradually increasing. As the main force of fire trucks, the main fire trucks have always been the largest fire trucks in terms of production and sales. As a well-known manufacturer of special vehicles in the country, CLVEHICLES has a variety of fire truck production qualifications. Below, we analyze a HOWO single-bridge water tank fire truck manufactured by CLVEHICLES.COM for you to see what features it has.

●The main battle fire truck is the most commonly used heavy fire truck

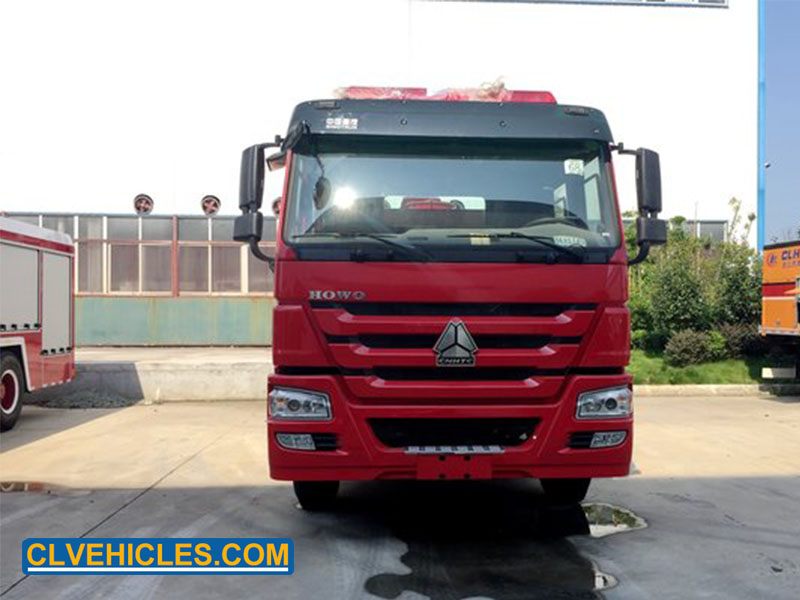

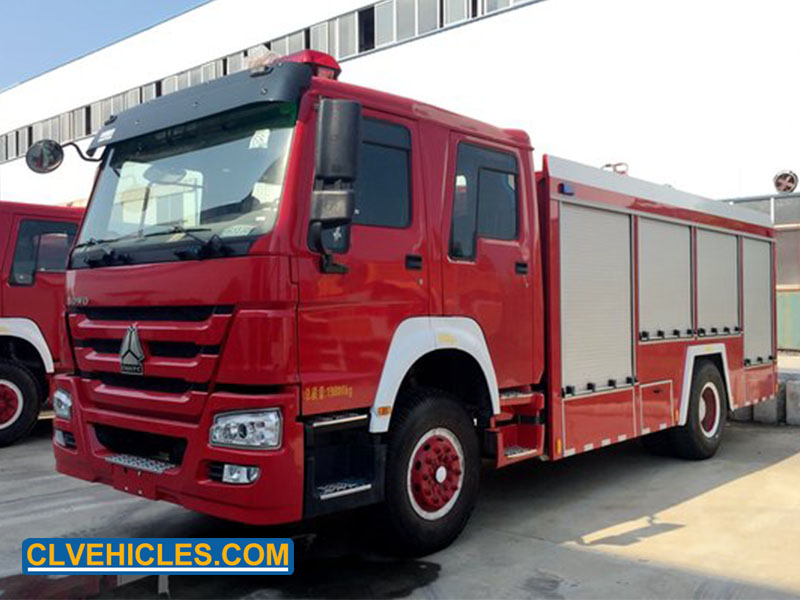

This fire truck is modified from the HOWO chassis. The whole vehicle is composed of two parts, the fireman's crew room and the body. The liquid-carrying tank is made of high-quality carbon steel and has a water capacity of 8000 kg. It uses a CB10 / 60 vehicle fire pump and a PS50 fire gun mounted on the roof.

As a main fire fighting vehicle, this vehicle has the characteristics of high power, high speed, and large liquid carrying capacity; it has a longer cab, comfortable seating, centralized operation, and easy maintenance. It is an ideal large-scale fire-fighting equipment for factories, mines, enterprises, ports, wharfs and other places to extinguish large-scale oil fires and general material fires.

The fire performance of the vehicle meets the requirements of GB7956; the chassis passes the national compulsory product certification; the engine emissions meet the requirements of the GB17691-2005 phase IV limit; all fire pumps and fire monitors are tested by the national fire equipment supervision and inspection center; It conforms to the GB12514-2006 standard; the entire vehicle has passed the 3C certification, and it complies with the relevant regulations on motor vehicle license plates.

●Main vehicle parameters

Length × Width × Height: 8780 × 2500 × 3460 mm

Maximum total mass: 19800kg

Liquid capacity: 8000kg of water

Maximum speed: 90km / h

Passing angle: approach angle ≥16 ° departure angle ≥13 °

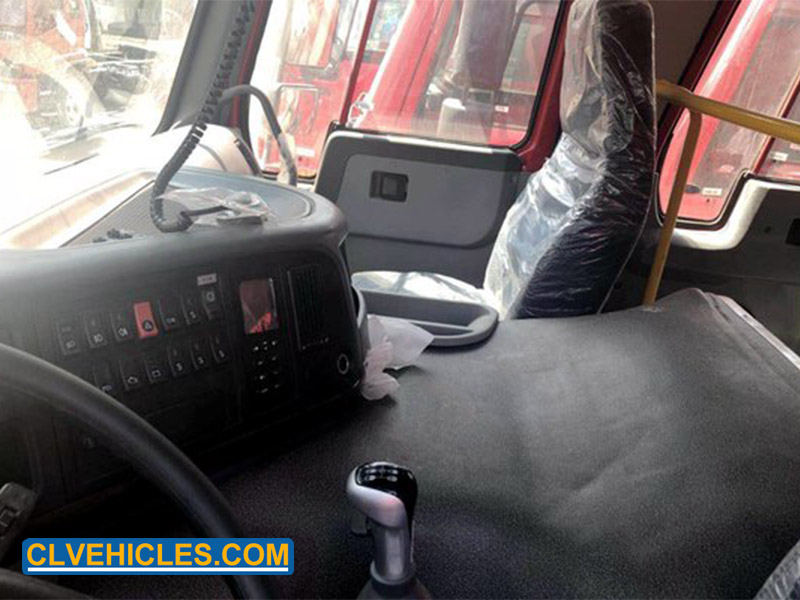

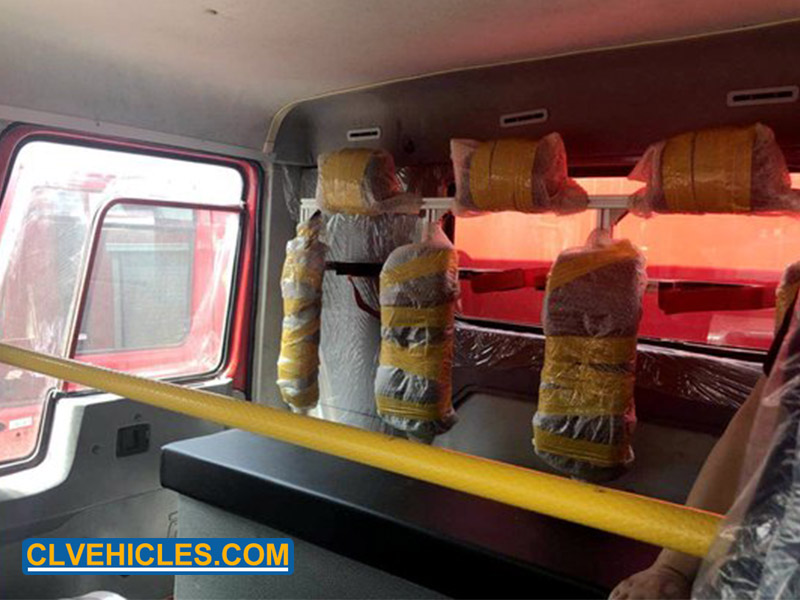

The passenger compartment has been restructured into a double row, with two rows of seats in the front and back, which can seat 6 people (including 1 driver). The dashboard of the original car is equipped with a fire control instrument panel and a police light control box; the back seat backrest is provided with 4 air breathing apparatus dedicated backrests and fixing fixtures. The cab can be flipped to facilitate engine maintenance. It uses a full-power sandwich-type power take-off, which enables the vehicle to fetch water while walking.

●Pump room and equipment box

The main frame structure adopts Q235 high quality porous steel fully welded structure, and the outer decorative plate is welded with carbon steel plate or smooth aluminum plate is bonded with high strength adhesive.

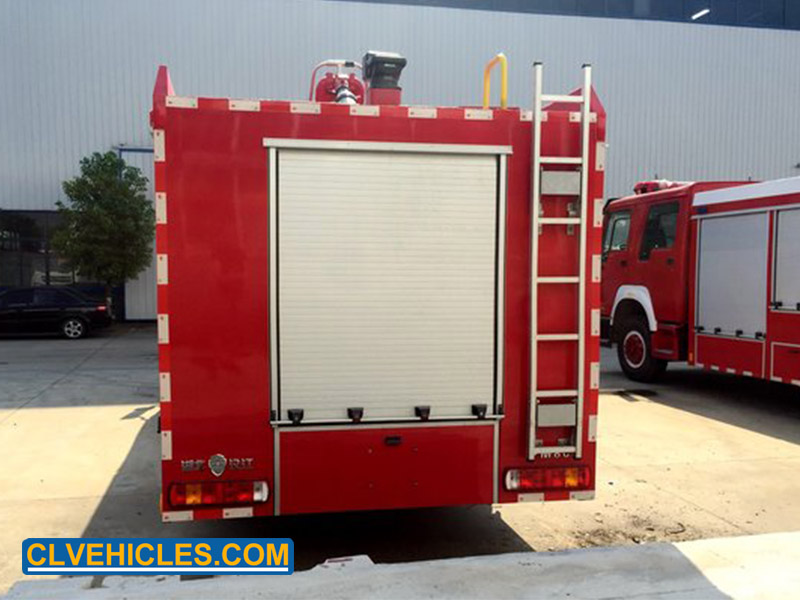

The pump room is located at the rear of the car, with aluminum alloy roller shutter doors on both sides and rear, with lighting inside. There are footboards on both sides, non-slip design. The pedal boxes on both sides of the pump room can put some commonly used equipment, and the rear part is equipped with a car climbing ladder, and the position is appropriate.

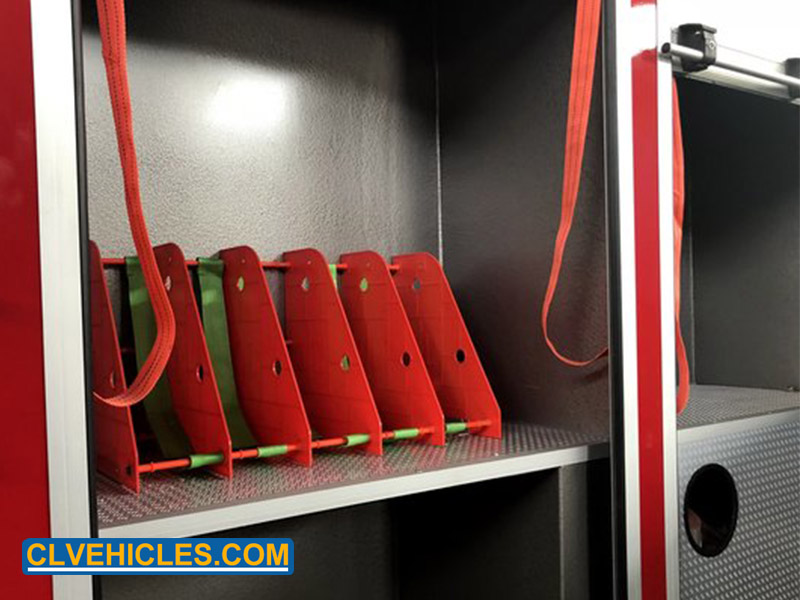

The equipment box is located at the rear of the crew room, with aluminum alloy rolling shutters on both sides, with lighting inside. There are footboards on the lower part of both sides, non-slip design. The pedal box on both sides of the equipment room and the equipment room are equipped with push-pull trays and storage boxes. The porous steel structure is convenient for equipment clamping and position adjustment, and there is a lot of space reserved. Users can place the required equipment according to their needs.

The roof is non-slip and walkable. The heating device uses an independent fuel generator (optional according to customer requirements).

A water tank with a capacity of up to 8 tons is used. The material of the water tank is carbon steel that has undergone overall phosphating treatment. The design thickness is 4: 4: 3mm (bottom plate: side plate: anti-sloshing plate). The tank body and chassis frame are fixed with a rigid connection.

Manhole: One DN430 manhole, with quick lock.

Overflow port: Set one DN50 overflow port.

Residual water outlet: set a DN40 water tank drainage water outlet, with ball valve.

Water injection port: Connect a DN80 interface on the left and right sides of the car with a stuffy cover.

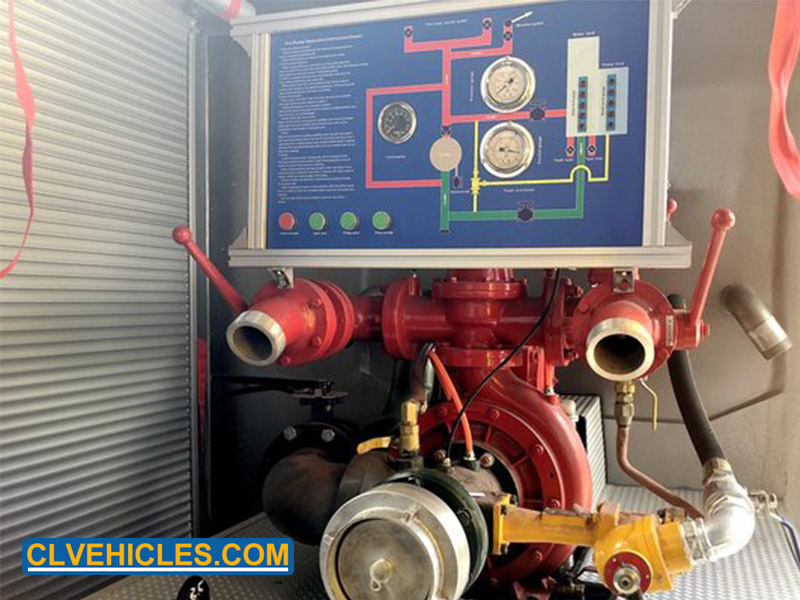

For water system, the water pump uses CB10 / 60 vehicle fire pump, which belongs to low pressure pump.

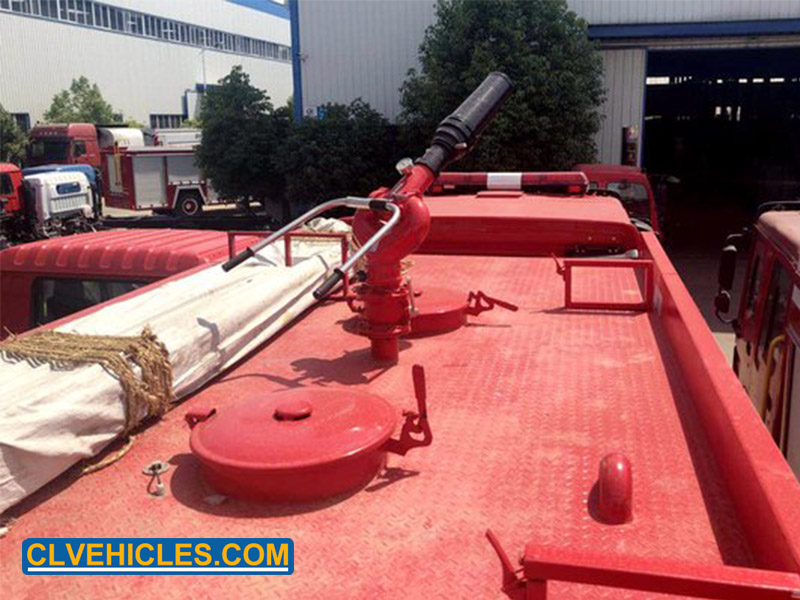

The fire extinguishing device is a PS50 vehicle fire cannon, which can realize 360 level rotation. The elevation angle of the fire monitor is ≥ + 70, and the depression angle is ≤-15. The flow can reach 48-64 liters / second. When water is used as the medium, the head is up to 60 meters.

●Fire control system

In terms of fire control system, its control panel mainly includes two parts: cab control and pump room control:

Cab control: body electrical switch, body air switch, pump off gear, police light alarm, lighting and signal device control.

Pump room control: control valve switch, parameter display, status display, etc. The parameter display has a Chinese logo.

For electrical equipment, the additional electrical appliances are set as a stand-alone circuit. Electric and pneumatic control system uses domestic high-quality components. Vehicle lighting uses 24V voltage. The fireman's room, pump room and equipment box are respectively equipped with lighting, and the operation instrument panel is equipped with lighting and indicator lights, which are convenient for the operator to operate and observe. Two red and blue strobe lights are installed on each side.

The cab signaling device has one long row of warning lights, which is installed on the top of the cab, and its control box is under the driver's front and bottom. There is also an electronic siren with continuous frequency modulation.

For fire scene lighting, a fire searchlight is used at the rear of the bodywork.

LED lights, safety boxes and pump room curtain door edges are equipped with LED lights at both ends after stepping over, which improves the practicality of vehicle equipment at night and can serve as a warning to the pedal position at night. Prevent bumps and scratches caused by darker sight, causing unnecessary injuries.

The surface treatment adopts imported topcoat, and the main body color is big red.

The layout and equipment standard of the on-board fire-fighting equipment are reasonable, compact, and firmly clamped. Any equipment can be used in two actions. According to the actual needs of fire fighting, according to the fire fighting operation procedures, pick and place nearby. Multi-person operation without interference. Easy to pick and place, with eye-catching markings. It is fixed with a special fixture which is anti-rust, anti-vibration, anti-fall, anti-scratch, rotation, push-pull or pull-out.
