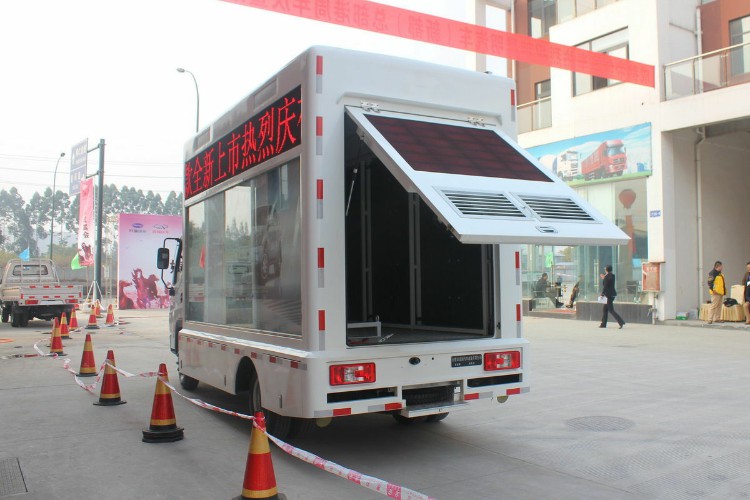

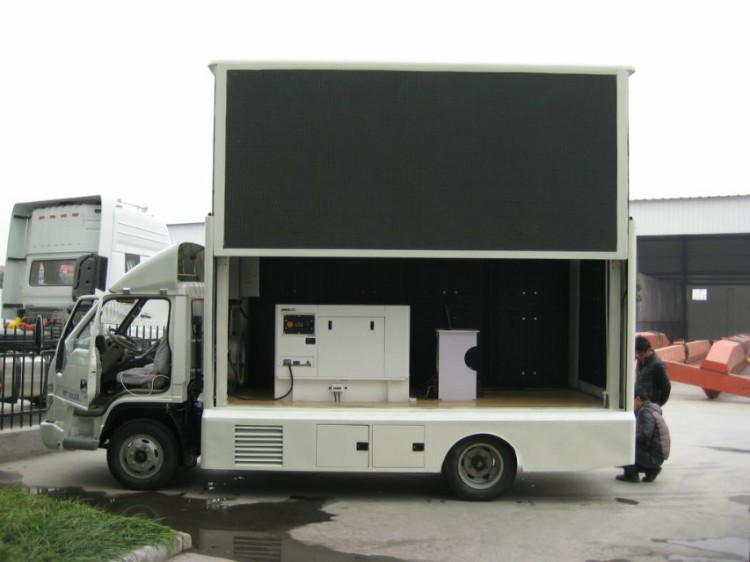

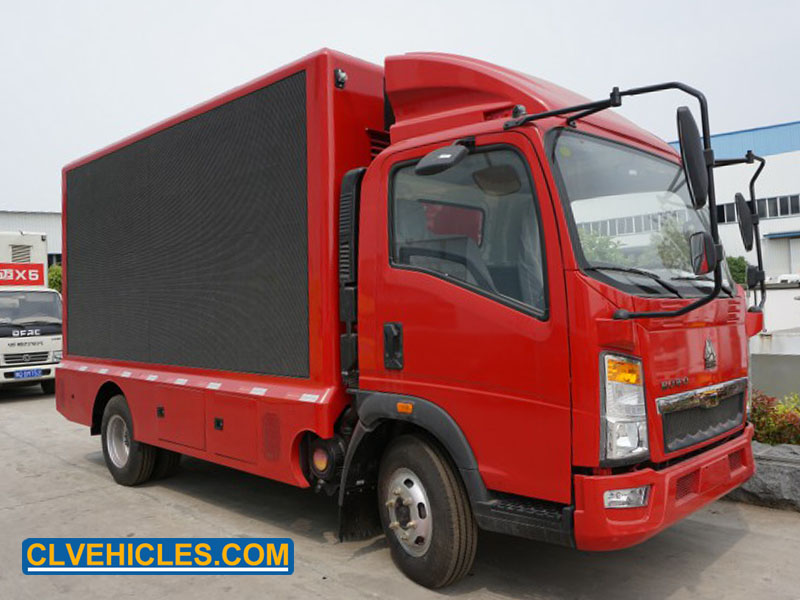

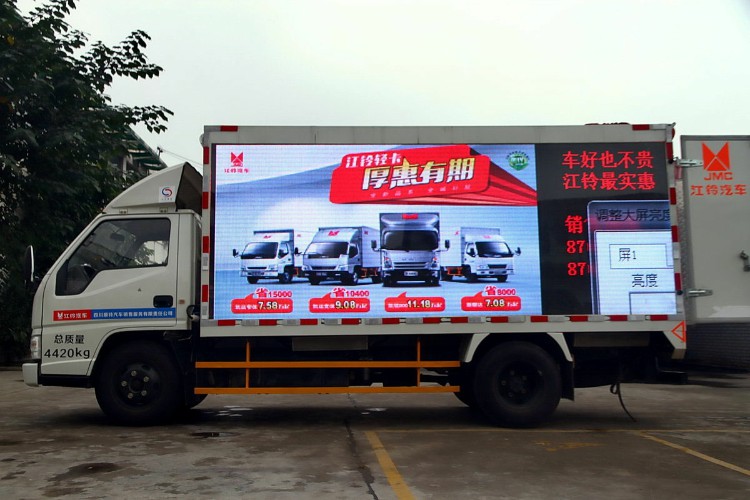

Mobile stage trucks are still relatively common in our lives. We will see mobile stage trucks in some commercial performances, campaign rallies and other places. Its appearance has greatly enriched our lives. Many people will ask about it when buying stage trucks. The question is, what accessories does the mobile stage truck have? Today we will introduce to you the common configuration and function of the stage truck.

1. First of all, we need to know that the mobile stage vehicle is a performance stage with a ceiling and a stage board that is unfolded and built by mechanical devices, and is equipped with special equipment such as stage lighting, audio, etc., and power interfaces, etc. .

2. The stage ceiling, which is located above the stage, is mainly used for hanging lamps and scenery, as well as a structural device that can block wind, rain and sunlight.

3. The top board is the top board of the truck body, which is used as the fixed part of the stage ceiling after being raised.

4. The side panel is the side panel of the truck body, which can be unfolded or raised as an integral part of the stage.

5. The stage of the stage truck is mainly composed of a bracket, a wooden keel and a wooden floor. It is suitable for performances and is divided into a fixed stage board and a movable stage board.

6. The outrigger of the stage truck. The outrigger is a supporting mechanism installed on the frame or sub-frame of the whole truck. It is used to support the truck body of the stage during the performance. It can form a foundation with no settlement, no shaking, and good stability. Stage plane installation.

7. The slideway of the stage platen, which can cooperate with the slideway of the movable stage platen to expand and close.

8. Stage plate support rod, which can be used to support the mechanical device of the movable stage platen, and can adjust the height.

9. Light poles, which are generally arranged on the ceiling, are used as a special mechanism for hanging lamps.

10. Scenery pole, which is also arranged on the ceiling and used to hang special structures such as scenery for performances.

11. Electric control box, electric control box is mainly used to prevent power distribution equipment and dimming equipment needed for performances.

12. The stage proscenium, which is relatively close to the audience, is a rectangular area between the upper surface of the stage platen and the lower surface of the ceiling.

13. The clear height of the stage refers to the distance between the upper surface of the stage table and the lowest point of the ceiling.

14. The lifting guide frame is a frame structure that is fixedly connected to the frame or sub-frame to prevent the roof from tilting during the vertical lifting process, and can stabilize the vehicle and the stage during driving and performance.
