This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.

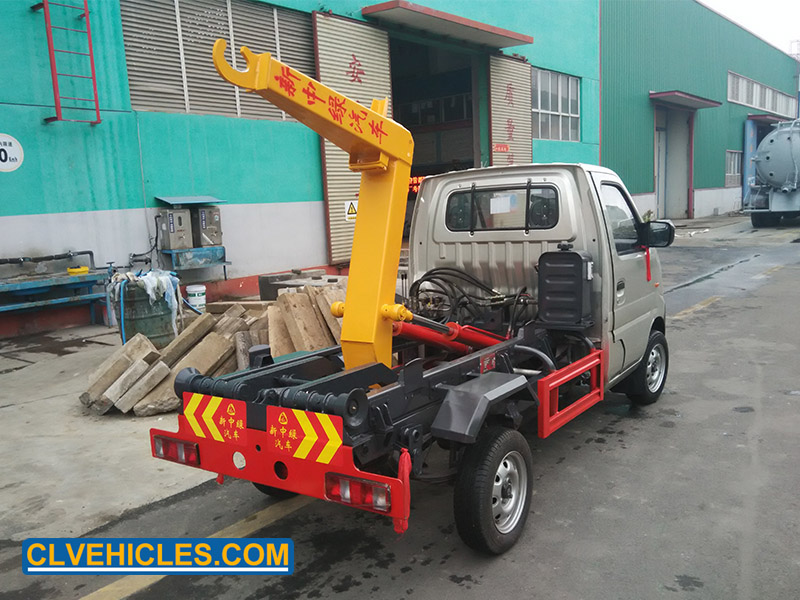

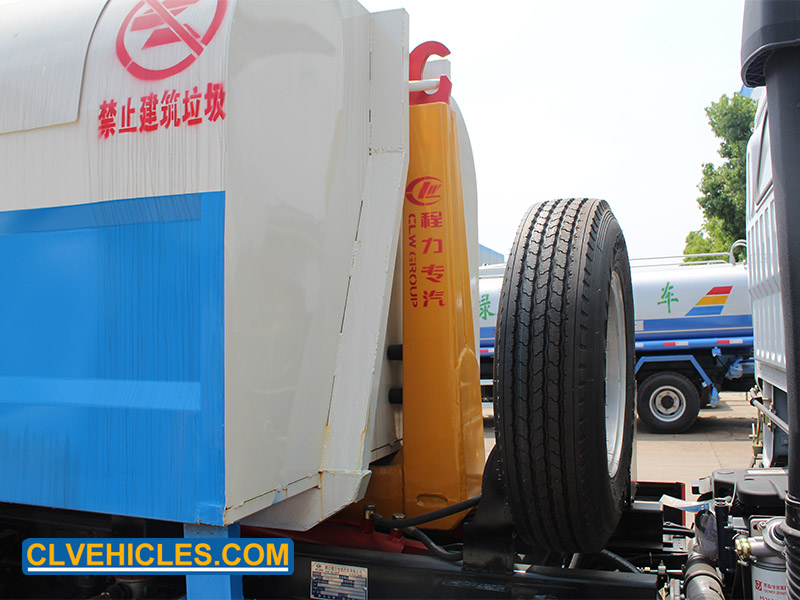

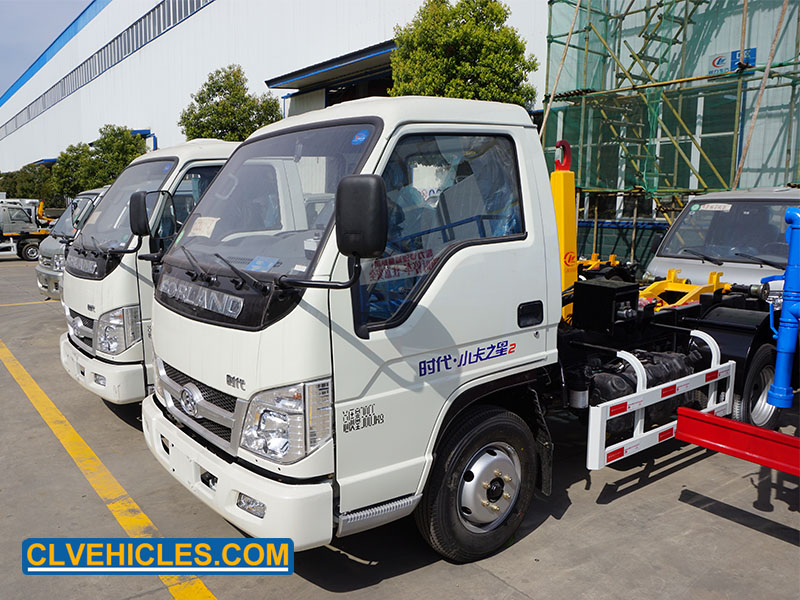

Hook-arm garbage trucks are loved by companies such as municipal sanitation, property management, and large coal mines because of their special functions! Each of CLVEHICLES.COM hook-arm garbage trucks is delivered to customers, and the operators will be trained. In order to let everyone better use the hook-arm garbage truck, today I will analyze the specific operation methods of the hook-arm garbage truck:
1. The operation method of pulling up the garbage bin of the hook arm garbage truck:
A. Push the locking hook operating handle to the retracted position, retract the locking cylinder, retract the locking frame, and lock and fix the turning frame with the attached frame;
B. Pull the handle of the pull arm to the extended position, the cylinder of the pull arm is extended, the movable pull arm rotates around the front hinge axis of the flip frame, the pull arm is in the hook box position, adjust the height of the pull arm hook appropriately and bend with the box body Hook alignment
C. When the pull arm hook is hooked to the box hook, continue to push the pull arm operating handle to the down position to make the trash box continue to get on the truck;
D. After the garbage truck box is dropped on the attached frame, loosen the pull arm operating handle to return it to the neutral position, and then pull the locking hook operating handle to the locked position, and the locking cylinder extends to make Turn over the locking frame and lock and fix the turning frame with the garbage bin. Loosen the handle to return it to the center position; complete the loading of the garbage truck and release the power take-off, the whole vehicle can be transported.
2. Operation method for lowering the garbage bin of the hook-arm garbage truck;
A. Hook up the power take-off after starting the car, push down the locking hook operating handle to the retracted position, and retract the locking cylinder to turn the locking frame down. The turning frame and the trash can will be unlocked, locked, fixed and attached. The frame is locked and fixed, and the handle is loosened to return it to the neutral position;
B. Pull the handle of the pull arm to the extended position, the cylinder of the pull arm is extended, the movable pull arm rotates around the front hinge axis of the flip frame, and the trash can flips and falls with the movable pull arm; when placing the trash can , It is strictly forbidden to stand at the rear of the carriage.
C. After the pull-arm type garbage truck box is placed, adjust the position of the movable pull-arm hook and the hook of the box body to make it unhook, push the pull-arm operating handle down to the down position, retract the pull-arm cylinder, and turn the movable pull-arm around the flip frame The front hinge axis rotates, the movable pull arm is put back on the attached frame, and the power take-off trash can is released and placed, the whole vehicle can be transported.
