DFAC 4x2 Manual Controlled Telescopic Lift Bucket Tree Pruning Truck

The Manual Controlled Telescopic Aerial Truck Equipment is used to provide temporary access for people or equipment to inaccessible areas, usually at height.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLW5063JGKEQ16T
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 42000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

DONGFENG Manual Controlled Telescopic Aerial Truck Equipment

DONGFENG Manual Controlled Telescopic Aerial Truck Equipment is a Aerial Platform Truck. It has three telescopic arms and supports people to work in 16 meters high and the arm shaft is compact,flexible and it needs small operating range, supports to work in narrow places. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.


Quick Details



Chassis Brand

DONGFENG

Horsepower

115hp

LHD/RHD

LHD/RHD

Type

Telescopic Type

Working Height

16 meters

Color

As requirements


Applications


Bucket Truck is mainly used for municipal engineering,municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.




Competitive Advantages


1.It uses DONGFENG chassis, which has choices for both LHD and RHD. And the cab has advanced design with fully automatic welding manipulator ABB.


2.It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 16 meters . And the bucket loading capacity is about 200KG with non-slip body.


3.Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.


4.Computer controlled, automatic limit, alarming when in dangerous work, excellent safety performance.


5.Slewing mechanism adopts adjustable type, which is easy to adjust.

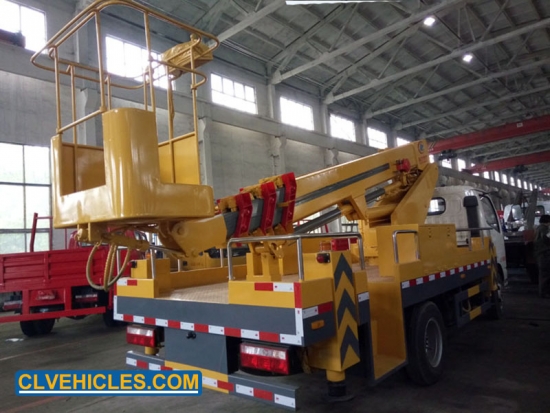

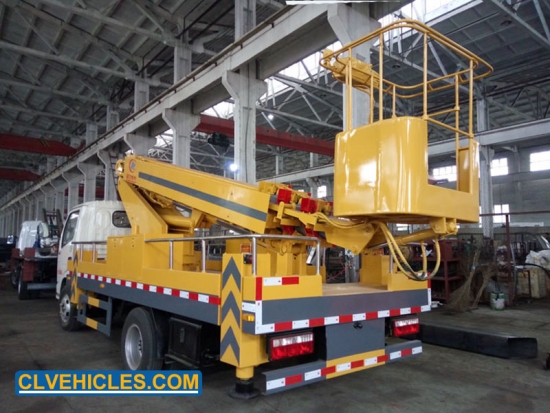

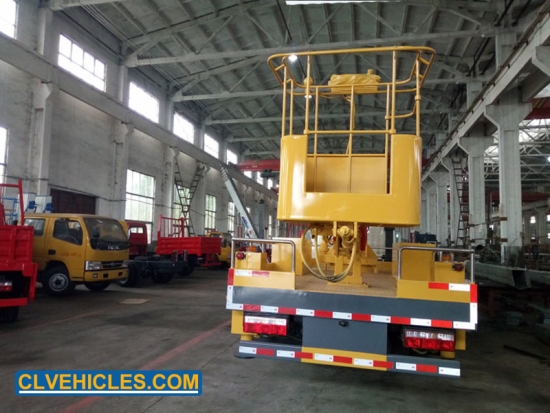

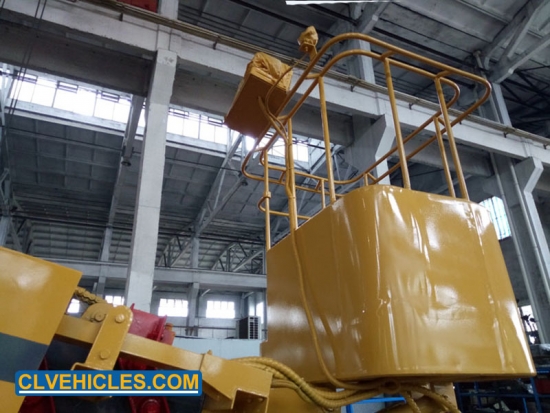

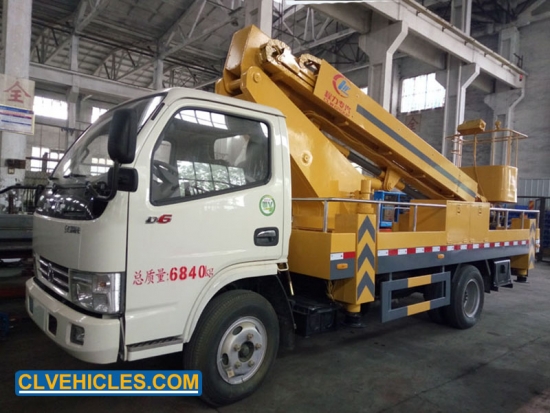

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Chassis Specification

Truck model

CLW5063JGKEQ16T

Cab

DONGFENG single rows of seats, with A/C

Driving Type

4*2 Left hand driving

Max Speed (km/h)

95

Overall dimension (mm)

Appro.7350*1980*3100

GVW (kg)

Appro. 5450

Mass in working order( kg)

Appro. 5060

Wheelbase (mm)

3300

Tire

7.00R16

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

WLY 5 forward speed and 1 reverse speed

Bridge

Front axle load-bearing

2.4 tons

Rear axle load-bearing

4.2 tons

Engine

Brand

YUCHAI

Model

YC4F115-30

Fuel Type

Diesel fuel

Emission Standard

Europe III

Type

Water-cooled four-stroke, supercharged inter-cooling, turbo charged

Exhaust (ml)

2659

Max output power/rotate speed (hp /rpm )

115/3200

Max torque/rotate speed (N.m/rpm)

285/2200

BrakingSystem

Service Brake

Air brake

Park Brake

Spring energy

Electric system

24V

Special Function

Working height (m)

16

Max working radius (m)

8

Boom type

Four sections telescopic boom

Rated loading in the bucket(kg)

250

Bucket size (mm)

1300*1000*1000

Rotating speed (r/min)

0-2

Rotation Angle

360°continuously

u Span of supporting legs

Horizontal

Appro. 3500mm

longitudinal

Appro. 4000mm

Boom Control mode

1.Bucket control

2.Manual operation

Supporting legs

Four hydraulic supporting legs with manual operation

Working Condition:

1.Altitude: 0-4500m

2.Temperature: -350C~+450C

3.Relative humidity: 80%

4.Wind force: ≤8 degree
