Brand:
CLVEHICLES.COMModel No.:
CL1160DLQX10Minimum Order Quantity:
1 UnitPrice:
USD 49900Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDongFeng KINGRUN 10CBM High Pressure Water Sprinkler Truck

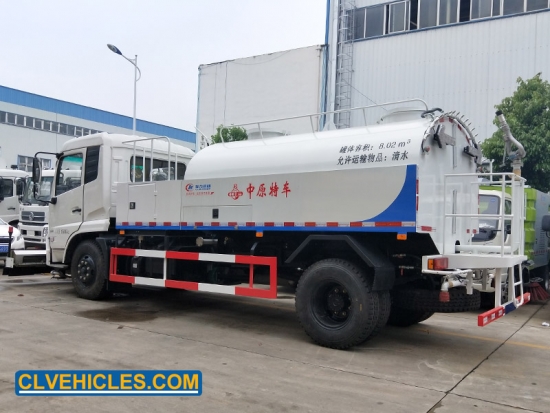

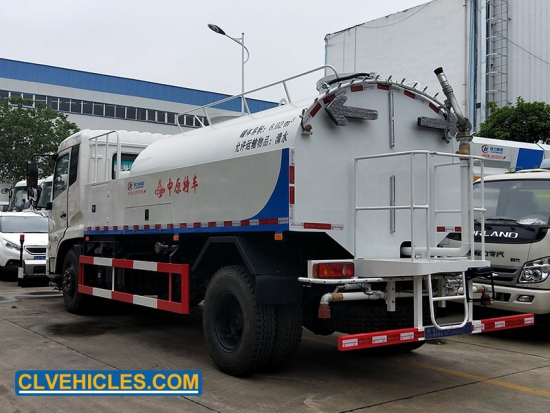

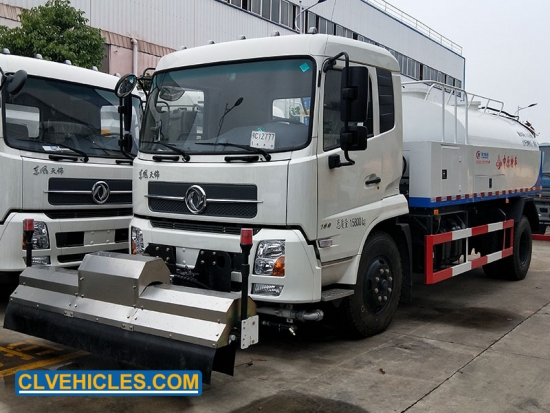

The high pressure water sprinkler truck is a dual-engine, dual-pump washing truck. It is a special-purpose truck that is equipped with a high-pressure flushing system and a low-pressure flushing system on the basis of truck chassis. This truck has independent high and low pressure two sets of water system to provide pressure water source for the truck.
Quick Details
|
Chassis Brand |
DONGFENG KINGRUN |
|
Payload Capacity |
10ton |
|
Material of Tank |
carbon steel |
|
Horsepower |
190hp
|
| Application |
Road cleaning |
Applications

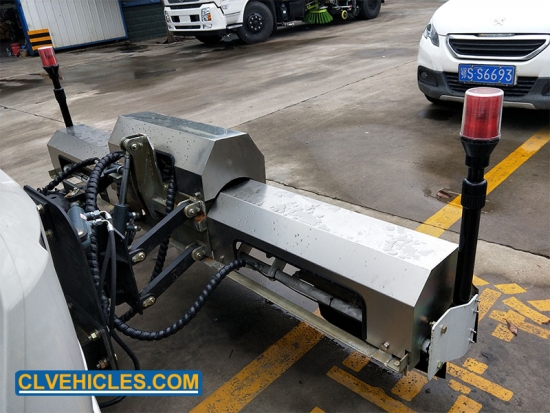

Its working principle is: the high-pressure water produced by the high-pressure water pump is sprayed through the high-pressure nozzles of the water spray frame, and the kinetic energy of the high-pressure water flow is used to clean with high pressure and low flow, powerful decontamination, efficient water saving, and clean the old dirt on the road surface; or spray high-pressure water through the left (right) corner to clean the curb, sidewalk and guardrail isolation area; use high-pressure spray guns to clean road signs, billboards, elevated roads, etc.

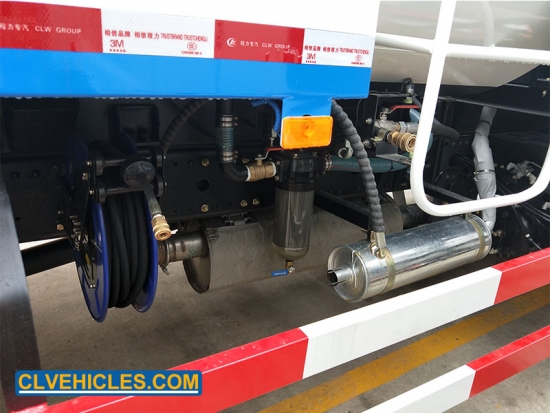

1. The high and low pressure water system with two independent power sources can work independently or at the same time without affecting each other. The water pressure and water flow can be kept constant;
2. It adopts Italian famous brand high-pressure water pump, which has high water pressure, reliable performance and long service life, which can ensure the cleaning effect. A full set of imported nozzles, constant spray traces, no scattering, and low pressure loss; nozzles are made of stainless steel, with long service life;
3. After the front spray cleaning operation, the original color of the road can be seen;
4. The effective physical volume of the tank is 7-9 cubic meters, the capacity is large, the operation time is long, there is no need to add water frequently, and the work efficiency is high;
5. Centralized control of electricity, liquid and gas, the whole vehicle has a good man-machine interface, convenient and flexible operation, the driver can complete various actions in the cab, and the operation is safe and comfortable.
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||
|
Chassis brand |
DONGFENG KINGRUN |
|
|
Cab |
Sleeper cab, with power steering. Electronic flameout, with A/C |
|
|
Driving Type |
4*2 right hand driving |
|
|
Max Speed (km/h) |
90 |
|
|
Maximum climbing angle |
30% |
|
|
Overall dimension（mm） |
9000*2495*2930 |
|
|
GVW（kg） |
16000 |
|
|
Mass in working order（kg） |
8640 |
|
|
Wheelbase（mm） |
4700 |
|
|
F/R track base（mm） |
1880/1860 |
|
|
F/R overhang（mm） |
1430/162 |
|
|
Approach/Departure Angel |
10/11 |
|
|
Tire |
10.00R22.5 (6+1) |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
6-speed |
|
|
Bridge |
Front axle |
4500kg |
|
Rear axle |
9000kg |
|
|
Enging |
Model |
EQB180-20 |
|
Fuel Type |
Diesel fuel |
|
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
|
|
Exhaust（ml） |
5900 |
|
|
Max output power/rotate speed (hp /rpm ) |
180/2500 |
|
|
Horse power |
180hp |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Eletric system |
24v |
|
|
Upper-Body specification |
||
|
Vice generator |
||
|
Model |
JE493G3 |
|
|
Rated power (kw/r/min) |
57/3600 |
|
|
Rated rotating speed (r/min) |
1500-1700 |
|
|
Electromagnetic clutch |
DLK-125 |
|
|
Coupling |
TGLA9 |
|
|
Working function |
||
|
Spray rack cleaning width(m) |
2.5-3.5 |
|
|
Spray rack declination |
30˚ left/right |
|
|
High pressure cleaning capacity（m²/h） |
25000(8km/h ) |
|
|
Maximum washing water pressure (Mpa) |
10 |
|
|
Washing water flow（l/min） |
134 |
|
|
Spray water flow（l/min） |
134 |
|
|
Low pressure water flow（l/min） |
600-800 |
|
|
Low pressure flush width (m) |
≥24 |
|
|
Sprinkle width (m) |
≥16 |
|
|
Gun range (m) |
38 |
|
|
Water tank body |
||
|
Rated capacity（m³） |
10 |
|
|
Hydraulic system |
||
|
Model |
Open, electrical control |
|
|
The main element |
Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve |
|
|
Pressure (Mpa) |
16 |
|
|
Hydraulic oil tank capacity (l) |
60 |
|
|
Hydraulic oil temperature (˚C) |
60 |
|
|
Electrical system |
||
|
type |
Unidirectional DC 24V (chassis) and unidirectional DC 12V (Vice-hair), negative Ground |
|
|
Battery |
7-QW-100MF(CHASSIS ) 75D31R(VICE GENERATOR) |
|
|
High pressure water system |
||
|
Type |
Piston pump |
|
|
Model |
German PF36 |
|
|
Pressure (Mpa) |
10 |
|
|
Rotating speed (r/min) |
800 |
|
|
Valve type |
Pilot pressure valve |
|
|
Pressure for valve (Mpa) |
10 |
|
|
Nozzle type |
High pressure cleaning |
|
|
Water filter |
Strainer |
|
|
Low pressure water system |
||
|
Type |
Two-stage centrifugal impeller pump |
|
|
Model |
80QZB(F)-60/90 |
|
|
Raise distance (m) |
90 |
|
|
Rotating speed (r/min) |
1480 |
|
|
Diameter (mm) |
200 |
|
