FUWA 3 Axle Cargo Stake Fence Semi-trailer

Fence semi trailer is based on flatbed semi trailer design and built with side walls and container twistlocks, which can transport not only containers, but also bulk cargos.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL9401CCY
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD10880
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

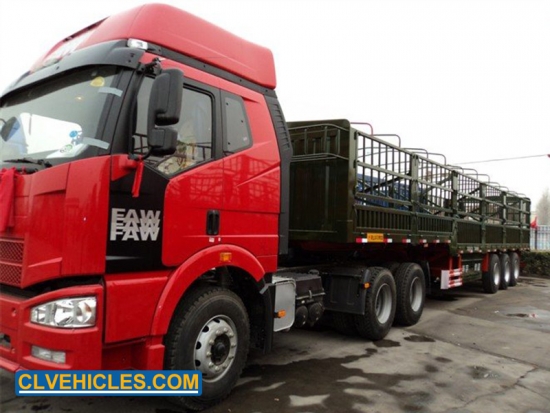

FUWA 3 Axle Cargo Stake Fence Semi-trailer


Fence semi trailer is designed with fencing structure,which is mainly used in the transportation of farm and sideline product,livestock and other light goods.

The utility model has the advantages of simple structure,convenient application,convenient disassembly,reduced investment cost for customers and more profit. And we can also make the double deck according to the special needs of our customers.

Quick Details



Semi-trailer type Stake cargo transport
Length 13000mm
Loading capacity 60000kg

Axle

FUWA


Applications


The stake bed semi trailer generally has a flat bled enclosed by fence-like exterior. It is widely used to transport animals, steel coils, coals, and other light puffy cargoes.




Competitive Advantages

1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2>The most skilled workers make welding of this flatbed trailer more frequent and strong.

3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customised with options.

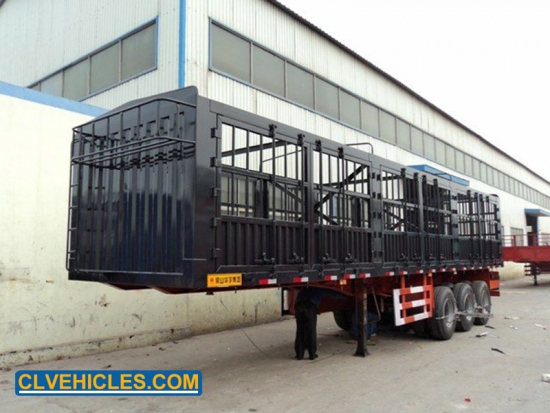

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Product

side wall  semi-trailer

Tare Weight

About 7.6T

Dimension
(The exact size depends on final design)

Length: 13000mm(outside dimension)  12800mm( side wall dimension )

Width:2400mm(outside dimension)   2300mm( side wall  dimension)

Height:2860mm(outside dimension)   800mm( side wall dimension )

Loading Capacity

60T

 Special function

Side wall

Height

600mm-1800mm

Open door

Can be choose freely

Running mechanism

Side beam

Thickness

16mm

Material

Q235Carbon steel

Main beam

Height

500mm

Plate

upper plate is 16mm, middle plate is 8mm(double and there plate), down plate is 18mm

Material

Q235Carbon steel

Axle

Brand

FUWA

Type

13T

Number

3 pcs

Rim

Type

9.0-22.5

Number

12pcs

Tyre

Brand

Doubles star

Type

12R22.5

Number

12pcs

Suspension

American type mechanical suspension for 3 axle

Spring leaf

Leaf width

90mm

Leaf thickness

13mm

Layer/set

10 Layer

King pin

Type

Bolts type

Diameter

2.0 inch

Brake system

Air tank

45L air tanks

Brake chamber

WABCO  6RELAY VALVE  double Spring brake chamber

ABS

Without

Landing gear

Brand

ZHONGXING BRAND

Type

Two speed manually operating , heavy duty landing gear 28T

Accessories

Spare tyre carrier

1 set

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness) and quick change type

Tool box

One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
