HOWO 5ton Small Thermo King Freezing Cold Delivery Truck


Refrigerator truck is a van truck designed to carry perishable freight at specific temperatures,such as fruit,vegetable,milk,medicine,meat and so on


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5047XLCF2
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 17900
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

HOWO 5ton Small Thermo King Freezing Cold Delivery Truck

Refrigerator truck is mainly consists of chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage.For special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel etc.According to the different chassis model, we have mini type,middle-sized,large-scale etc refrigerator trucks for your choice with different brands.


Quick Details



Length of Van box

4100mm

Van box material

Glass fiber reinforced plastics

Chassis brand

HOWO

Horsepower

102hp

Refrigeration unit

THERMO KING RV-380

Temperature

-15℃


Applications


The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
It is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.

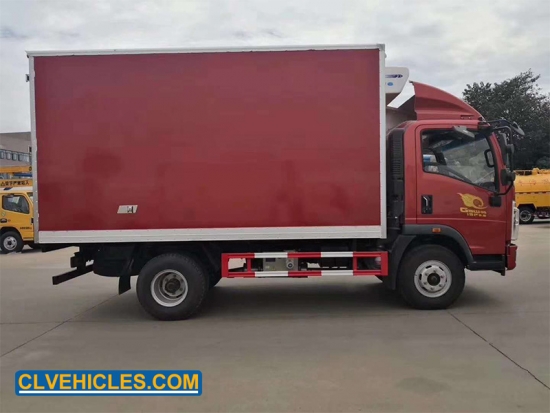

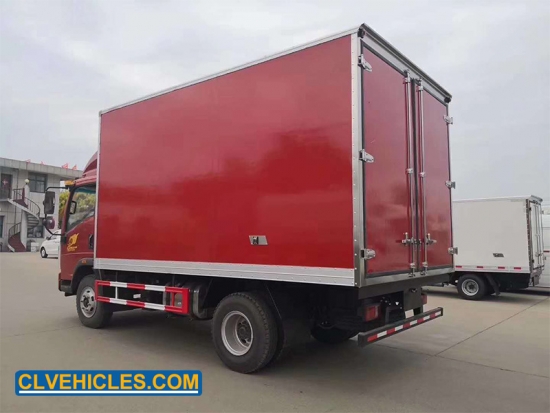

refrigerated truck

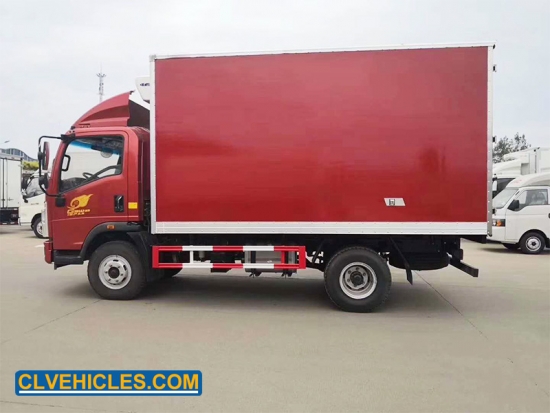

refrigerated truck

Competitive Advantages


1.The “sandwich” board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.

2.Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.

3.The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane;

4.Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.

5.Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.).

Product Details

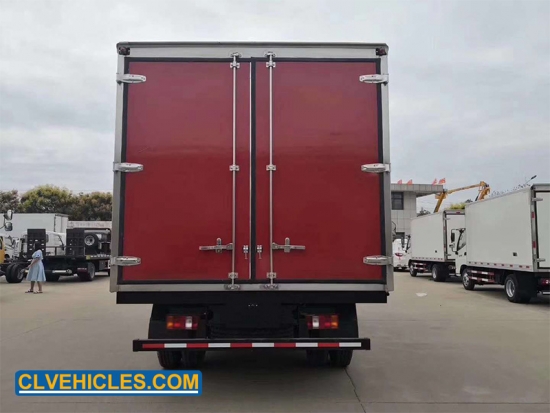

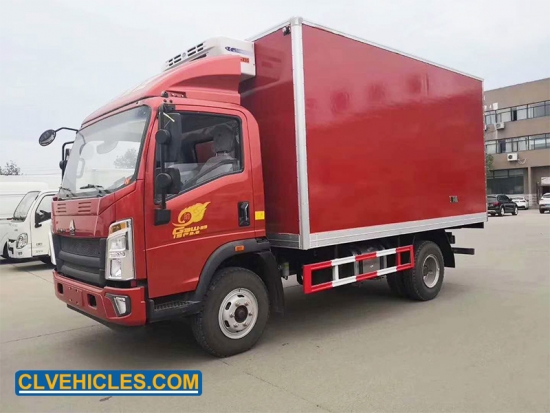

 refrigerated truck


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Chassis Specification

Chassis Brand

HOWO

Cab

Single row cab with power steering, electronicflame-out, A/C

Driving Type

4*2

Max Speed (km/h)

110

Overall dimension(mm)

5995*2070*29606980×2070,2130×3050(mm)6980×2070,2130×3050(mm)6980×2070,2130×3050(mm)

GVW(kg)

4495

Mass in working order(kg)

3210

Wheelbase(mm)

3360

F/R track base(mm)

1505/1525

F/R overhang(mm)

1015/2150

Approach/Departure Angel

24/16

Tire

7.00R16 14PR

Clutch

Single-plate dry diaphragm spring clutch

Gear box

5speed+1reverse

Bridge

Front axle

2000kg

Rear axle

3500kg

Engine

Fuel Type

Diesel

Model

JE493ZLQ3A (EURO 3)

Exhaust(ml)

2770

Max output power (hp)

102hp

Braking  system

Service Brake

Air brake

Park Brake

Spring energy

Electric system

24v

Upper-Body Specification

Van boxdimension(mm)

4100×1900×1800

Material of van box

Glass fiber reinforced plastics

Insulation thickness(mm)

80

Refrigeration units

THERMO KING RV-380

Type

Independent unit

Temperature setting range

-25℃—+30℃

Refrigerant Type

R404A

Refrigerant Filling quantity (kg)

1.8

Compressor Model

TK16

Compressor Cylinders

6

CompressorDisplacement (cm3)

163

RefrigeratingCapacity (W)

Ambient temperature 30℃  (A.T.P.)

0℃  4050

-25℃  2300

Ambient temperature 38℃  (A.R.I.)

0℃  3800

-25℃  2200

Air Volume(@0 static pressure)(m3/h)

1500

Air speed(m/s)

3.3

Current consumption

12 VDC/ 36A

 24VDC/ 18A

Weight (kg)

Condenser

30

Evaporator

18

Compressor

4.7
