ISUZU ELF 190HP RHD Refrigerator Insulation Transportation Van Truck

The insulated van body maintains stable temperatures, making it ideal for transporting perishable goods, pharmaceuticals, or chilled/frozen products.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLW5120JSQD19
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 38990
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters


ISUZU ELF 190HP RHD Refrigerator Insulation Transportation Van Truck


The ISUZU ELF 190HP RHD Refrigerator Insulation Transportation Van Truck is a reliable solution for temperature-controlled cargo transport. Powered by a 190HP engine, it delivers strong performance and fuel efficiency. Designed with a right-hand drive (RHD) configuration, it suits various regional driving requirements. Built for durability and ease of operation, this truck offers excellent mobility, safety, and cargo protection, meeting the demands of modern logistics and cold chain transportation needs.


Quick Details



Length of Van box

4800mm

Van box material

Glass fiber reinforced plastics

Chassis brand

ISUZU

Horsepower

190hp

Refrigeration unit

THERMO KING KV-500

Temperature

-15℃


Applications


The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
It is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.

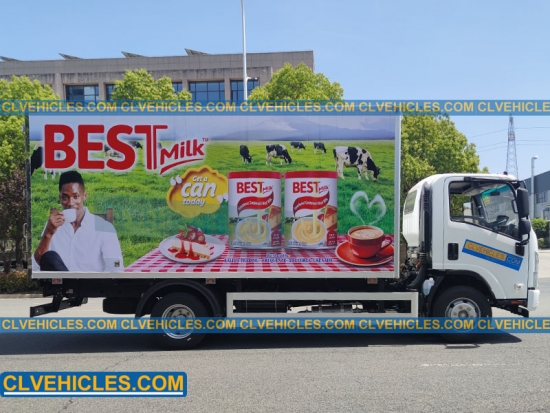

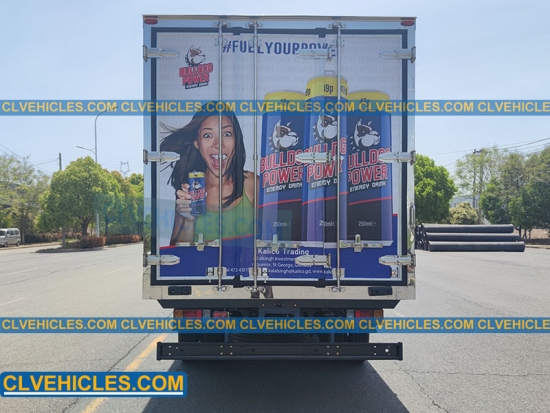

refrigerated truck

refrigerated truck

Competitive Advantages


1.The “sandwich” board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.

2.Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.

3.The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane;

4.Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.

5.Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.).

Product Details

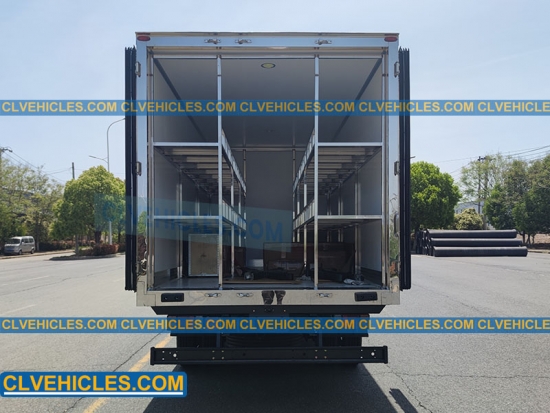

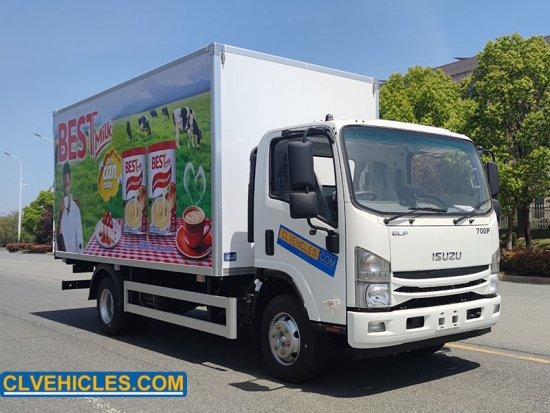

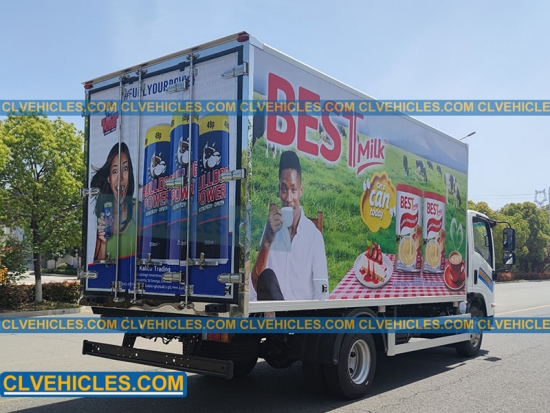

 refrigerated truck


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Size
Parameters

Overall Dimensions L×W×H)(mm

7950*2450*3360

Box size (inner) L×W×H)(mm

4800*2100*2100

Wheelbasemm

3815

Wheel Tread (front / rear ) FT/RT mm

1504/1425

Overhang FF/RF mm

1015/1525

Approach / Departure Angle

24/16

Quality
Parameters

GVWKg

9,800

Curb Weight Kg

3,700

Play loadKg

5,000

Performance
Parameters

Max speedKm/h

105

Main Configuration

Engine

Model

4HK1-TCG60 ISUZU Brand

Emission

EURO 4

Type

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Displacement cc

5193

Horsepower hp

96/190

Clutch

Type

Dry single plate with diaphragm spring, power assist

Diameter

Φ395

Clutch assistance type

×

Transmission

Model

MLD  ISUZU 6-speed forwarder & 1 reverse

Type

5 forwarder & 1 Reverse

Front & Rear axle

Front axle capacityKg)

4000

Rear axle capacityKg)

7000

Steering

Steering Type

recirculating ball-type

Power steering

Suspension

Type

front/rear leaf spring

Leaf spring number(front/rear)

Parapolic leaf spring

Fuel Tank

Fuel tank capacity L

140

Tire

Model

8.25R20 (6+1) With one spare tire,totally 7 pcs

Electrical

Batteries

12V-100Ah

Alternator

14V  60A

Starter

12V  2.8kw

Safety configuration

Reverse alarm

Seat Belt warning

Central locking

Common seat belts

Acoustical equipment

Radio+MP3

CD

×

Air Condition

Air Condition

Warm air

Interior

Manual window

Power window

Roof ventilator

×
