MINI 4x2 Diesel Hydraulic Arm Hook Lift Garbage Truck

 Arm-roll garbage truck also named hook lift garbage truck , roll-lift garbage truck  and detachable container garbage truck.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLW5030GBLJ1
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD9890
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

MINI 4x2 Diesel Hydraulic Arm Hook Lift Garbage Truck


The hook-arm garbage truck is a special vehicle used for garbage transfer and unloading operations in urban garbage compression stations. It consists of a car chassis, a dump cylinder, a rear door cylinder, an attached frame, a garbage bin and a rear door swing lever. The operation is completed by the hydraulic control system, and the control mode can be manual or electrical control. It is mainly used for garbage removal in urban and rural garbage compression stations.

Quick Details



Chassis Brand FOTON Forland
Carriage body volume  2-3CBM
Filling Cycle Time 50-60s/once

Hydraulic Pressure

20Mpa


Applications


Hydraulic hooklift hoists are mounted on heavy duty trucks to enable hauliers to change out flatbeds, dumpster bodies, and similar containers. Primarily used in conjunction with tilt frame bodies and specialised containers, generally designed for the transportation of materials in the waste, recycling, scrap and demolition industries.

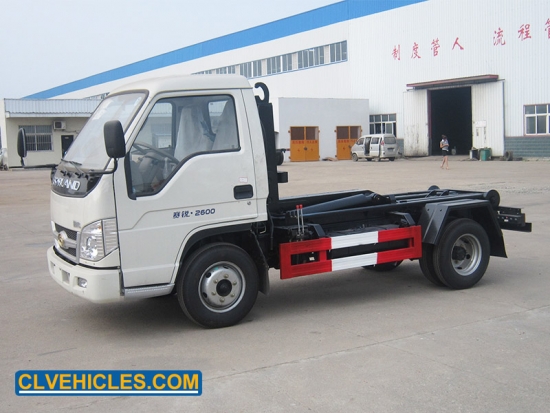

hook arm garbage truck

Competitive Advantages

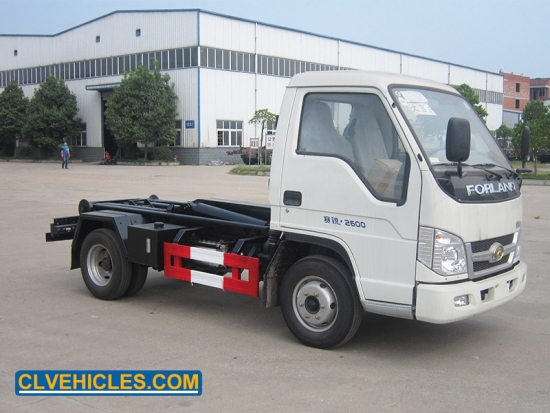

removable garbage truck with hook arm



Product Details

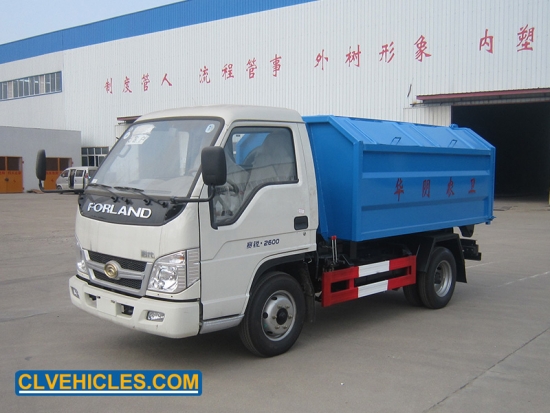

arm roll off garbage truck

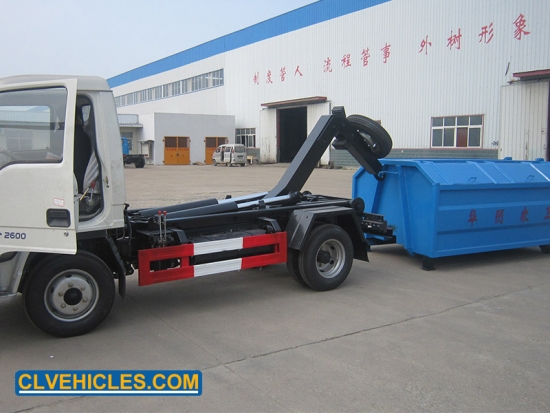

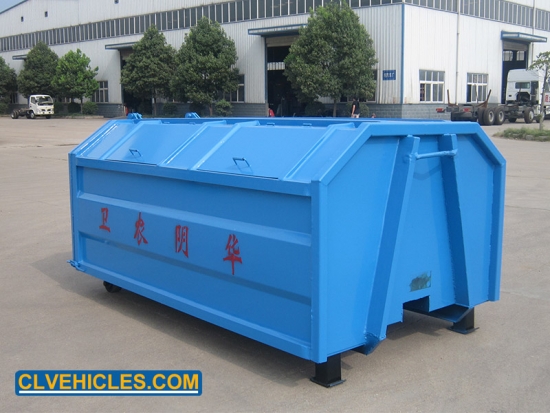

Hook Lift Garbage TruckGarbage bins for arm hook truck

Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Chassis brand

FOTON

Cab

Single row cab

Driving Type

4*2 Left hand driving

Max Speed (km/h)

90

Overall dimension(mm)

5780×1900×2000

GVW( kg)

4000

Mass in working order( kg)

2835

Wheelbase(mm)

2600

F/R track base(mm)

1569/1530

F/R overhang(mm)

1068/1997

Approach/Departure Angel

22/25

Tire

6.00-15

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

5-speed

Bridge

Front axle

1.5T

Rear axle

3.5T

EngiNE

Model


N485QA


Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

1865

Max output power/rotate speed (hp /rpm )

48/3000

Braking  system

Service Brake

Oil brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Upper-Body  specification

Material of tank

material : Q235,Thickness :3mm (side) 4mm(bottom)

Operation control system

Electrically hydraulic control

Container load time

50-60s

Container unload time

40-50s

Garbage unloading way

Lifting and dump

Hydraulic system pressure

20Mpa

Standard configuration

Hook lift system , sub frame, lock cylinder, multiple valve, operating handle
