This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Vehicle Type: Fire Fighting truck
Number of Units: 1
Export Country: Thailand
Chassis Configuration: DONGFENG, 4*2 type, Left hand driving, Single cab, YSC06300-50 engine（300hp), 11R22.5 tires
Superstructure Configuration: 5,000 Liters water tank （tank material carbon steel），CB10/60 fire pump, PS50 fire monitor, Aerial working platform with PS40 wireless fire monitor

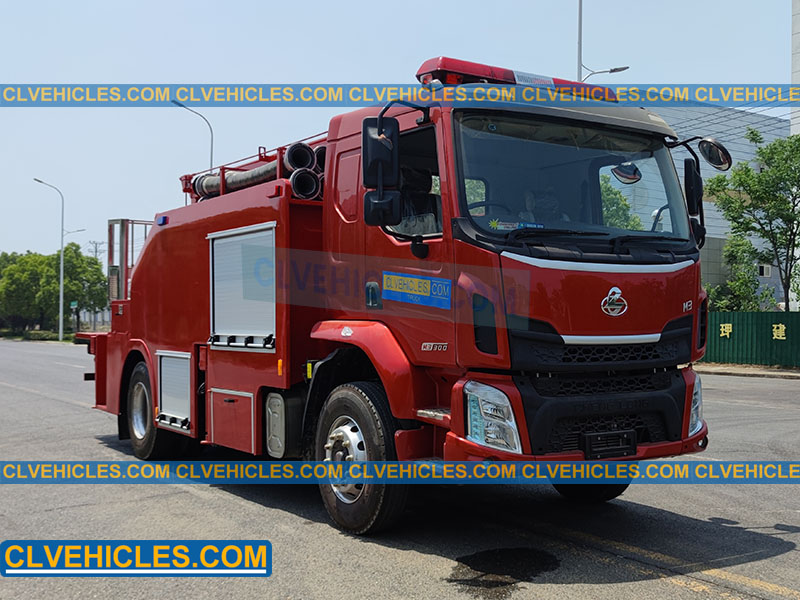

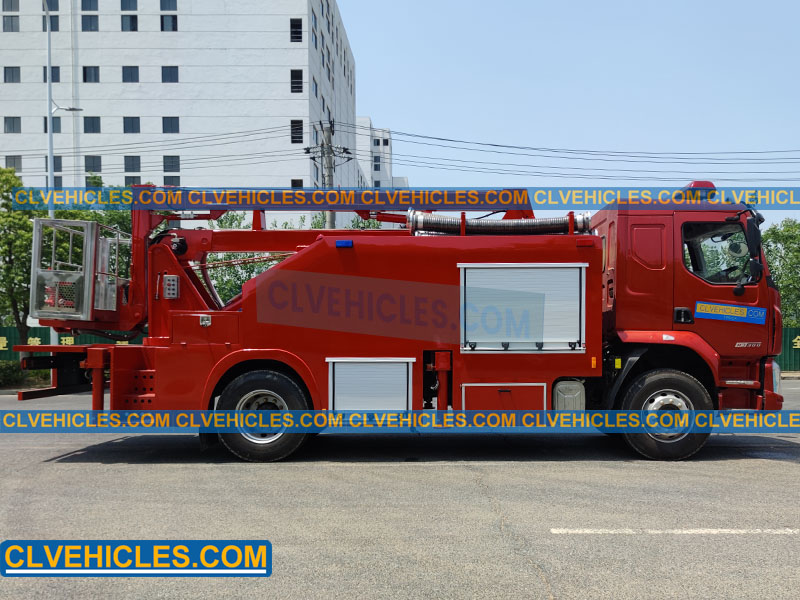

This advanced firefighting and rescue vehicle combines a powerful firefighting system with a folding boom aerial work platform, designed for high-altitude firefighting operations.
1. Water tank and firefighting system
- 5-ton water tank: Made of durable Q235 carbon steel, it is durable and corrosion-resistant.
- CB10/60 fire pump: Provides high-pressure water flow for effective firefighting.
- Dual fire monitor:
- West PS50 fire monitor (mounted on the water tank)
- Additional PS40 electric fire monitor (mounted on the front of the basket) for enhanced directional control.
- Exposed water tank design: Easy maintenance and inspection.
- Standard internal connector: Compatible with fire hose system.

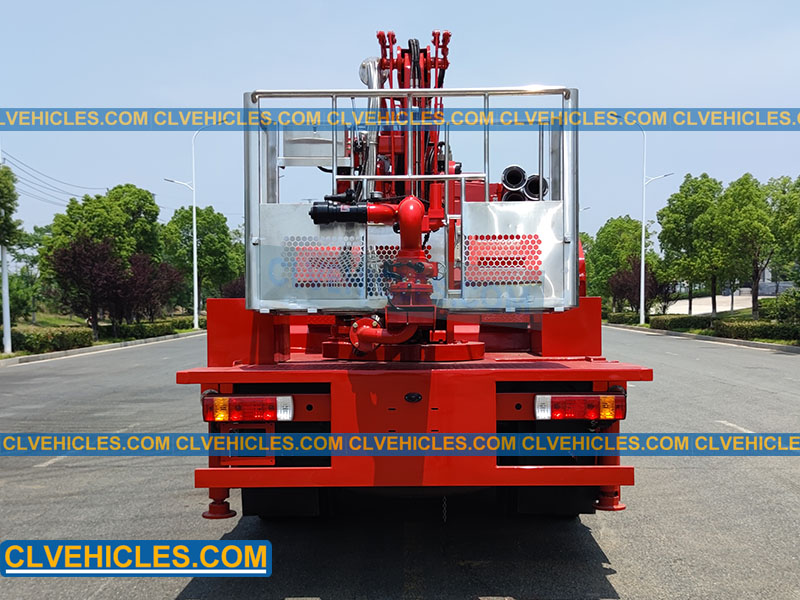

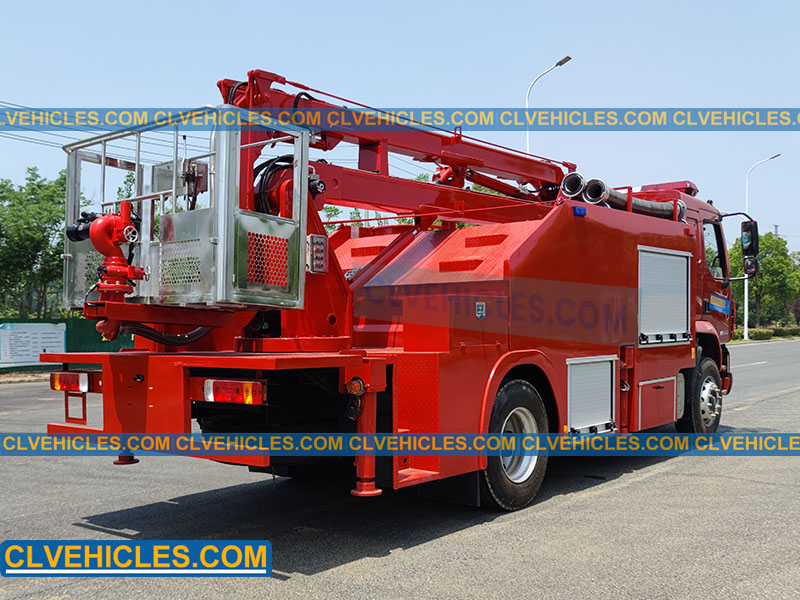

2. Aerial work platform (maximum working height 13.7 meters)
- Heavy duty reinforced structure: Supports simultaneous operation - People in the basket + fire monitor spraying water.

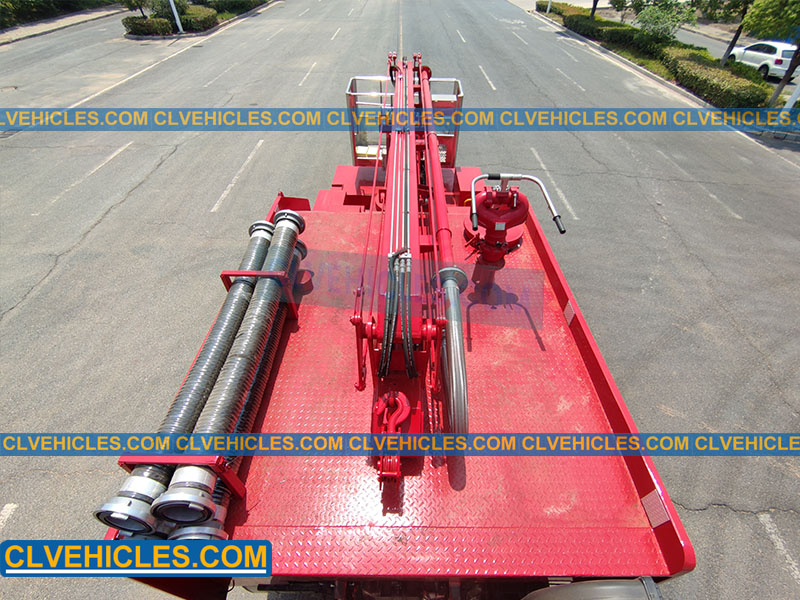

- Three-section boom Reinforced with fixed welded round tube for greater stability.
- Flexible metal hose connection at folding joints: Ensure uninterrupted water supply during boom movement.
3. Enhanced safety and visibility
- Long row of LED warning lights + speakers: Increase alertness in emergency situations.
- High-intensity strobe lights: Enhance visibility in low-light conditions.
- Fire red body: Standard emergency color for quick identification.
4. Chassis and cab
- Single-row cab: Optimized for personnel transportation.
- Compatible with customer-supplied chassis:
- 4,500 mm wheelbase
- 300 hp engine, powerful performance.
5. Additional equipment
- Sandwich power take-off (PTO): Efficiently distributes power between driving and firefighting systems.

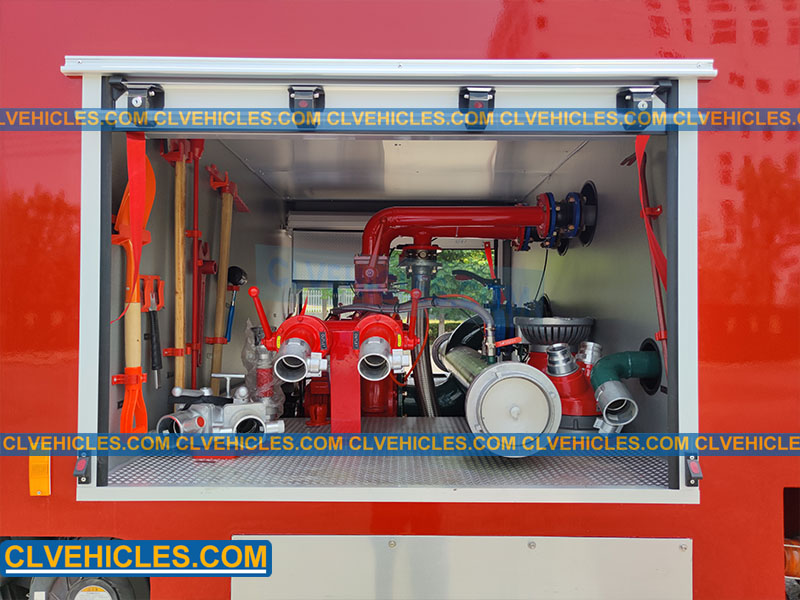

- Onboard firefighting tools: See the attached equipment list.
