Rotatable Cab Double Way Driving 2CBM Self-loading Concrete Agitator

Self-loading mixer truck multiple functions self-shoveling, cement mixing, material transportation, material loading and unloading.
  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLZSJB20
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 23,700 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

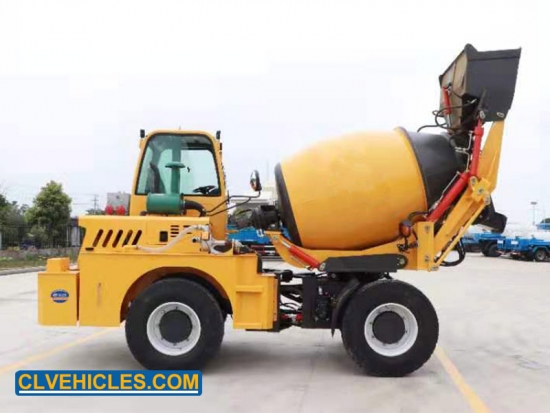

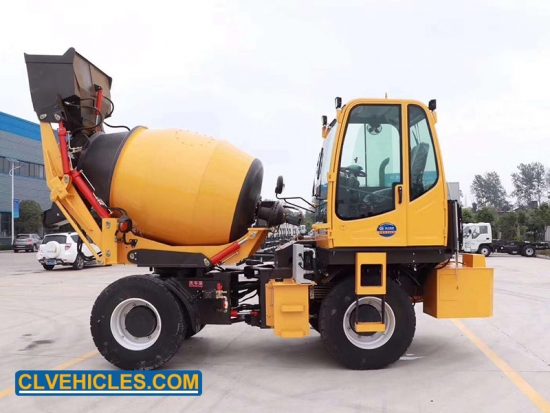

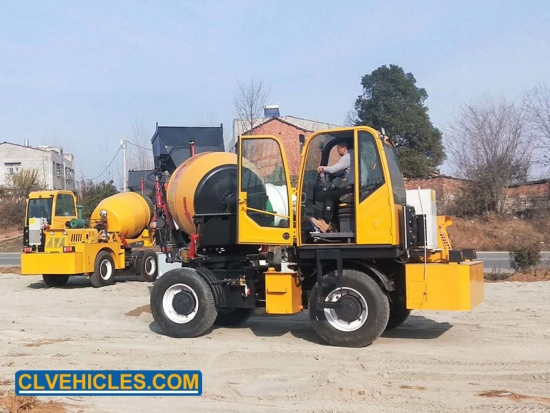

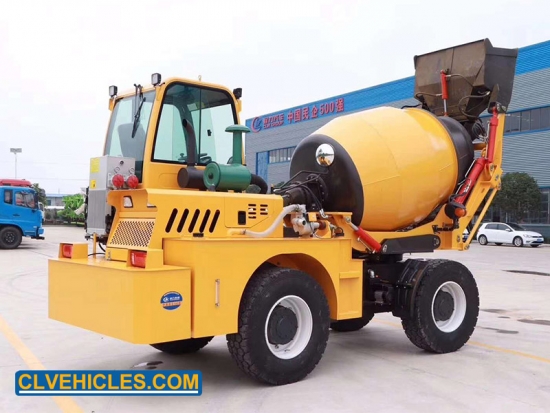

Multifunctional 2000L Self-loading Transit Mixer Truck


The self-loading mixer truck integrates various functions into one. A vehicle can complete the operations of concrete production, mixing, and transportation. The body is equipped with an electronic scale. The specific values can be clearly seen in the cab. The ratio can be adjusted at any time and added. Water is not difficult, because it has a large-capacity water tank, the body is equipped with Yuchai engine, and many terrains can easily handle it.


Quick Details


Condition

New

Driving Wheels

4*4

Overall size

5300*2300*2900mm

Wheelbase

2300mm

Mixing capacity

2CBM

Fuel Type

Diesel


Applications


Large mixer trucks have always been the main means of transporting concrete in urban and rural construction, with a single delivery volume between 10-20 square meters. The advent of self-loading cement mixer trucks, thus ending the past history of rural construction relying on manpower to mix concrete.

For the market value of self-loading cement mixers, the most important thing is to rely on its small size, convenience and flexibility, less labor and low construction costs. Therefore, its market is mainly concentrated in counties and township markets below the county, and the purchasers are mostly individuals. And for the local construction project small and medium boss, contractor.

Self-loading cement mixers will definitely occupy an important position in the construction of counties and towns. In the future, in the construction of streets, squares and workshop floors, self-loading cement mixers will be more and more used in the delivery of commercial concrete After the industry's market is subdivided, self-loading cement mixers are the superior products for the construction of concrete mixing operations in counties and towns.




Competitive Advantages

1. This product solves a variety of problems, more flexible design, easier operation, simpler use and lower cost. It is a perfect combination of "four-in-one" which combines self-shoveling, cement mixing, material transportation, material loading and unloading.


2. Equipped with 12.00 type loader steel tire, the diameter is larger than that of similar products by nearly 30mm. It has strong climbing ability and walking stability. It is suitable for construction operations in various geographical environments in urban and rural areas. When running, it is more stable and safe.


3. Using a sealed gear slewing system, the advantage of this type of turntable is that it will not be worn due to dust and stones, and it has a long service life.


4. The vehicle is a full-time four-wheel drive with sufficient horsepower and good passability.


5. The engine has more brand advantages than similar products, with light weight, low noise, and high power.


6. If the vehicle is selected to be equipped with heating and cooling air conditioning, suction pump, high-pressure car wash pump, cement bucket, etc., it is more comfortable and convenient to use.


7. The vehicle adopts the advanced electronic operating system for the first time among similar products in the country, and is equipped with front and rear view mirrors, cameras, touch screens, etc., which makes the operation more convenient.



Product Details


Cab details:


Superstructure details:



Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Boddy
Suppy only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Model

CLZSJB20

Overall size (mm)

5300*2300*2900

Wheelbase (mm)

2300

Curb weight (kg)

7350

Loading capacity (kg)

4500

Max. Speed (km/h)

40

Driving type

4*4

Engine model

YC4102 Turbocharger

Engine Power (kw)

78

Gearbox

280 component

Rear axle (kg)

2000

Tires

12.00R20

Bucket capacity (CBM)

0.5

Roller capacity (CBM)

3.0

Mixing capacity (CBM)

2.0

Reduction ratio

1:24

Rotating speed

≥15 r/min
