This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Good cargo body structure, high rigidity, high loading capacity. Good sealing structure has the better sealing effect. Lower fuel consumption.
Brand:
CLVEHICLES.COMModel No.:
CL3255JM384Minimum Order Quantity:
1 UnitPrice:
USD 49000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

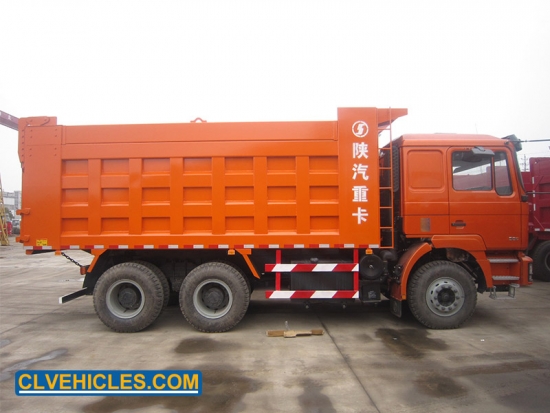

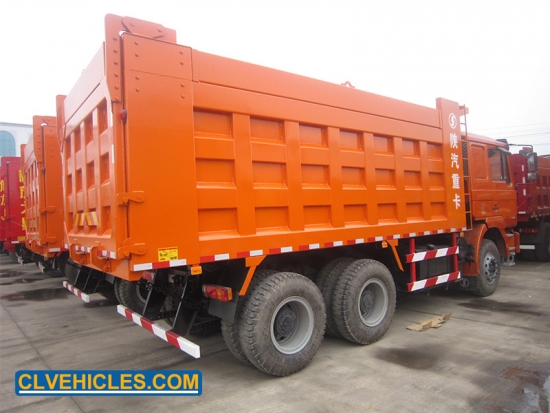

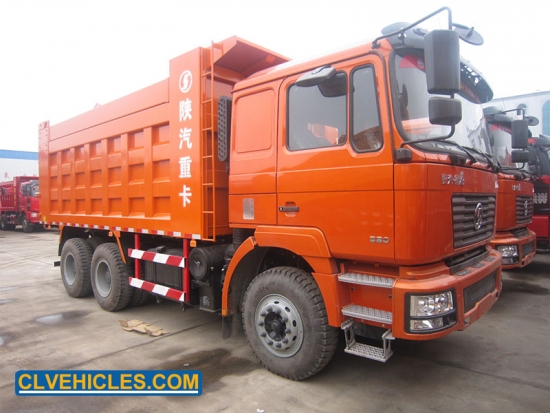

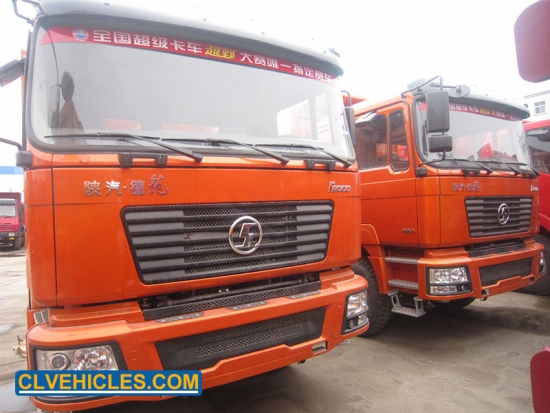

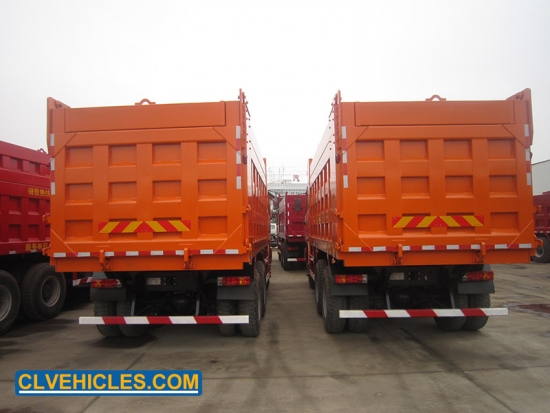

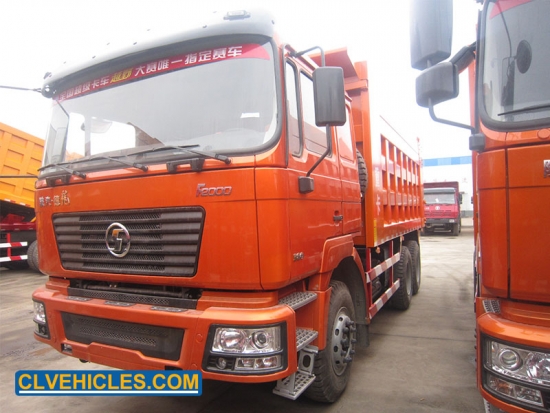

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcSHACMAN 290hp Euro2 6x4 16CBM Dump Truck
Tipper truck is vehicles that could discharge by itself through the hydraulic or mechanical hoisting system.It is also called the tipper. It is consisting of the chassis, hydraulic hoisting structure, cargo box, power take-off device, and other spare parts.
Quick Details
|
Chassis Brand |
SHACMAN |
|
Payload Capacity |
25ton-40ton |
|
Material of Tank |
carbon steel |
|
Horsepower |
290hp
|
| Application |
Construction project, heavy duty transportation |
Applications
A transfer dump is a standard dump truck pulling a separate trailer with a movable cargo container, which can also be loaded with construction aggregate — gravel, sand, asphalt, klinkers, snow, wood chips, triple mix, etc.
|
|
|
|
Unique metal support ring welded structure allowing good cylinder stability and high cylinder expanding resistance. |
High strengthen steel compartment. |
|
|
|
| New & modern cab with big space and more comfort, all electrical equipment are controlled by ECO, can be left or right side. |
Driving axle has big loading capacity, each axle is good stability, high safety factor and ability to work under high level pressure |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Model |
|
|
Cab |
MAN F3000 Cab Single bed Air conditioner |
|
Dimension(Lx W xH)(mm) |
8275×2500×3450mm |
|
Total mass(kg) |
25000kg |
|
Kerb mass(kg) |
11200kg |
|
Rated mass(kg) |
13670kg |
|
Payload(kg) |
25000kg |
|
Approach / departure angel |
16/66 |
|
Front/rear suspension(mm) |
1525/1600 |
|
Max. gradeability (％) |
28 |
|
Engine brand |
Weichai Engine |
|
Engine model |
WP10.290E32，290hp |
|
Rated output power |
213kw |
|
Torque(N.m r. p.m) |
1160N.m/1200-1600rpm |
|
Rated speed(rpm) |
2200rpm |
|
Emission Standard |
E-II |
|
Displacement(L) |
9.726L |
|
Driving type |
6×4 |
|
Axle number |
3 |
|
Wheel base(mm) |
3775+1400mm |
|
Clutch |
φ430 diaphragm spring |
|
Gearbox |
FAST 10JSD120，10 Forward&2 Reverse，Manual |
|
Front axle |
7.5T MAN 7500kg |
|
Rear axle |
16T STR 2×16000kg |
|
Ratio |
5.73 |
|
Steering |
ZF technology Left-hand drive(LHD) |
|
Type |
12R22.5,10+1pc |
|
Tank capacity(L) |
380L |
|
Max. speed(km/h) |
77km/h |
|
Color |
Optional |
|
Cargo box size(mm) |
5200×2300×1350mm(16m³)bottom8mm,side4mm |
|
Lifting style |
Middle lifting |
These trucks can be used in construction of large industrial structures and hydraulic facilities, in construction of highway systems as well as in technological departments of the enterprises of processing industry.
Greatly save time and labor for unloading. Shorten transportation cycle and improve production efficiency.
The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency,the whole truck structure has characteristics lower center of gravity,with higher security when lifting the cargo body.
All parts are well-maintenance, original. can be inspected. Low working hours, original paint, cheap and high quality. Spare parts available, best working machine for you
Shacman designed mature dumper truck chassis, rebuilding dump special device, easy loading and fast unloading.High efficiency, low cost, new technique, low fuel consumption, enduring service life.
A standard dump truck is a truck chassis with a dump body mounted to the frame. The bed is raised by a vertical hydraulic ram mounted under the front of the body.
