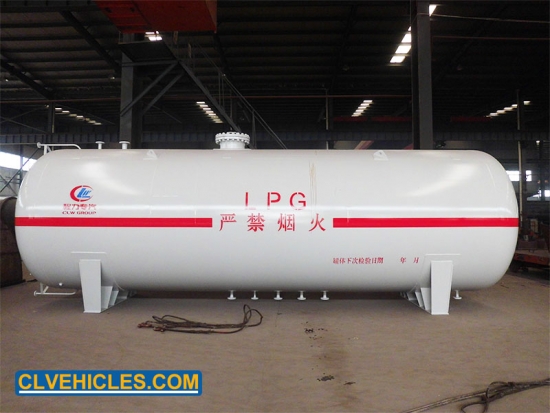

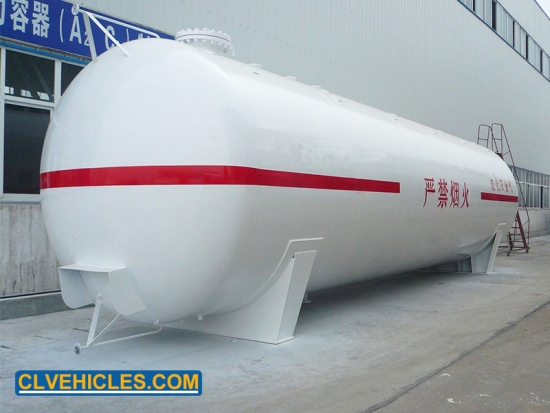

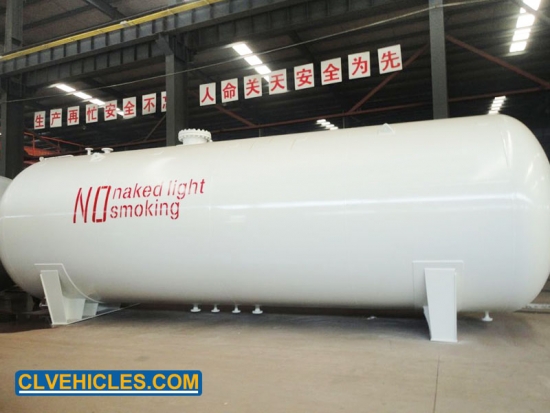

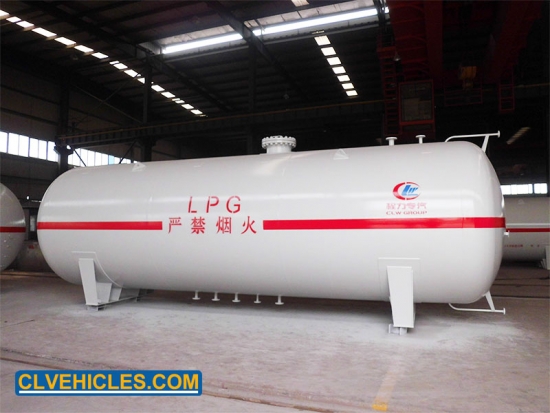

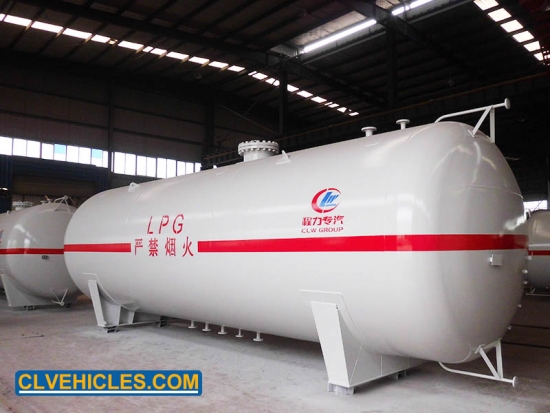

25000 liter lpg storage tank

Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    25000 liter LPG TANK
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD13900
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

25000 liter lpg storage tank


Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape.
Storage tank is a double cylinder structure, tube and pipe were used austenitic stainless steel manufacturing, outer cylinder with Q235-B/Q345R manufacturing, sandwich filled with perlite, and vacuum pumping, and setting the after special treatment of the adsorbent to extend the life of vacuum tank.


Quick Details



LPG tank size 7008*2224*2814

Propane tank capacity

25000 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


LPG storage tank is widely used in the gas industry, hospitals, metal smelting,filling stations and liquefaction plants and other large gas users, is to achieve the best central air supply products.




Competitive Advantages



Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



9.975T(25M3)LPG storage tank

Filling gas

LPG (propane)

Design Specific Gravity

0.42 Kg/L

capacity

25M3

External Dimensions (length*width*height)

7008*2224*2814mm

Tank dimension (length*diameter)

L7008*D2200mm

tank weight (nominal)

6020kg

max payload weight

99750kg

tank material

Q345R

Tank body design thickness

11.35mm

End cover design thickness

11.33mm

design temperature

500C

working temperature

-20~500C

Corrosion allowance

1.0 mm

design pressure

1.77 MPa

Hydraulic test pressure

2.22MPa

leak test pressure

1.77 MPa

Heat treatment type

Wholly get rid of tress

Main partsspecification

Liquid level meter

Type

UZFAL-2.5FM

Model

Magnetic level gauge

Nominal pressure

PN2.5Mpa

Surveying range

50~2300mm

Precision

2.5Grade

Safe valve

Type

A42F-2.5-80

Model

Inner full lift

Nominal pressure

PN2.5 MPa

Nominal diameter

DN80mm

Opening pressure

1.68-1.76 MPa

Closing pressure

1.51~1.59MPa

Complete opening pressure

<2.12 MPa

Loading and unloading device

Model

Quick tie-in

Nominal Diameter

Inlet Gas phase

DN50mm

Outlet gas phase

DN50mm

Drain outlet phase

DN50mm

Inlet Liquid phase

DN50mm

outlet Liquid phase

DN50mm

Pressure meter

YN-100T

Temperature gauge

WTQ-280
