This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
LPG storage tank is a professional product for storing liquefied petroleum gas (LPG). It is a special equipment, a type of pressure vessel, Q345R material.
Brand:
CLVEHICLES.COMModel No.:
40,000LiterMinimum Order Quantity:
1 UnitPrice:
USD16500Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

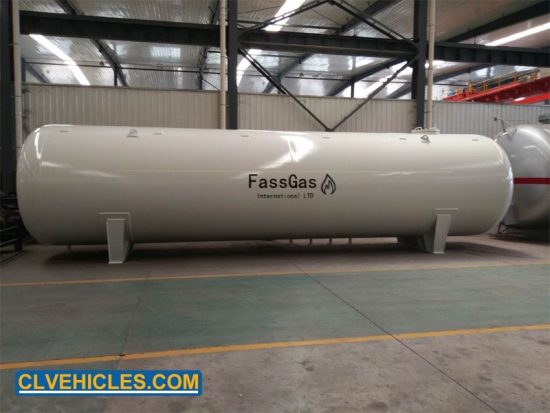

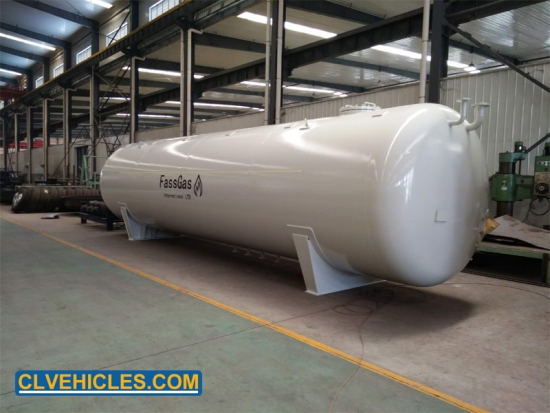

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc40M3 LPG Horizontal Tank 40CBM LPG Gas Storage Tank
Liquefied petroleum gas (LPG) storage tanks include compressed gas storage tanks or liquefied gas storage tanks, etc. The LPG storage tanks can be divided into fixed volume storage tanks and movable volume storage tanks according to the volume change of the containers. Large fixed volume LPG storage tanks are made into spherical shape, while small ones are made into cylindrical shape.The movable volume storage tank is also known as the low pressure gas storage tank, commonly known as the gas cabinet. Its geometric volume can be changed, and it is sealed tightly without air leakage. It has the function of balancing the air pressure and regulating the air supply, and the pressure generally does not exceed 60MPa.
Quick Details
| Material of tank | Carbon steel Q345R |
|
Propane tank capacity |
40000 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
LPG storage tank is widely used in the gas industry, hospitals, metal smelting,filling stations and liquefaction plants and other large gas users, is to achieve the best central air supply products.
1.Perfect raw material with certificates, automatic submerged arc welding technology ensure perfect welding. 100% Nondestructive inspection insure perfect quality. A, B Class 100% ray weld inspection, II level qualified C, D Class welds100% magnetic particle inspection, I level qualified.
2.The nozzle of pressure gauge and thermometer is flange type, make the replacement more convenient and the nozzle more safety, the support is saddle type, convenient installation and uniformity force exertion when loading LPG, so be able to increase the tanks life.
3.3 layer anti-rust painting, Beautiful appearance and corrosion resistance,

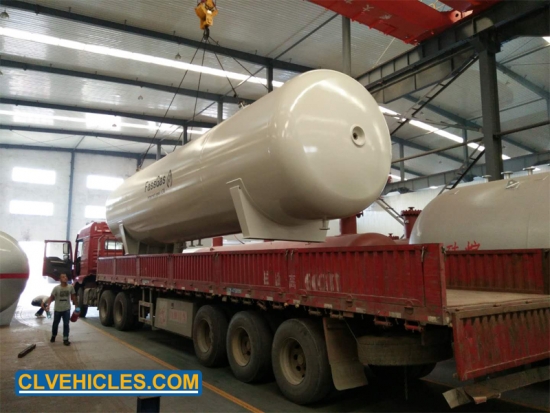

Perfect packaging ensures protection during transportation without damage
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
List Of Safety Accessories |
|||
|
Model |
Item |
Qty |
Junction surface |
|
J41N-2.5-50 |
Stop Valve DN50 |
6 |
RF |
|
J41N-2.5-25 |
Stop Valve DN25 |
2 |
RF |
|
J41N-2.5-80 |
Stop Valve DN80 |
1 |
RF |
|
J24W-320-DN6 |
J24W Needle Valve M20*1.5 |
1 |
|
|
HG21584-95 |
Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 |
1 |
RF |
|
A42F-25-100 |
Safety Valve DN80 |
1 |
RF |
|
Y-100T |
Pressure Gauge M20*1.5 1.5degree 0~4Mpa |
1 |
|
|
WTQ-280 |
Thermometer M33*2 2.5 degree |
1 |
-40℃~60℃ |
Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition.
The lpg storage tank is made of special material Q345R. As a professional lpg storage tank manufacturer in China, we have the aptitude to design and manufacture A2 type of pressure vessel,the manufacturing processing of lpg storage tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.
The lpg storage tank is also called LPG gas tank for sale, lpg tank, lpg gas tank, lpg gas storage tank,bulk lpg storage tanks, etc. The lpg storage tank is belong to pressure vessel.It mainly used to store up liquid petrolum gas, propane.
CLVEHICLES has the design and fabrication capability of household storage tank and stationary storage tank, including above-ground storage tank, underground storage tank, horizontal storage tank, and vertical storage tank etc., which is customized according to the customers' requirement.
Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication.We have the biggest LPG trailer in the world, the valid volume is 58.5cbm, low transport costs, more profit.
LPG storage tank it`s used to storage the liquefied petroleum gas, and it can set up the LPG skid filling station.
