The LPG skid mounted station is an integrated equipment integrating LPG storage tanks, pumps, motors, pipelines, valves and filling equipment. The skid mounted station can fill LPG into steel cylinders or LPG tankers just like a large LPG station.
Brand:
CLVEHICLES.COMModel No.:
CL2019LP25Minimum Order Quantity:
1 UnitPrice:
USD23600Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
25CBM LPG Filling Station 20CBM LPG Cylinder Station 25M3 LPG Gas Plant
LPG electronic filling scale is an ideal filling equipment for LPG filling station to replace traditional mechanical scales or replace ordinary electronic filling scales. The core control instrument is designed and developed with international advanced electronic components, and the important components such as solenoid valve and sensor are selected from domestic and foreign high-quality supporting manufacturers. It has the characteristics of advanced technology, convenient operation, stable quality and accurate filling. The successful development of this series of equipment has brought great convenience to the operation and management of liquefied gas stations and improved the management level of the gas filling industry.
Quick Details
| Material of tank | Carbon steel Q345R |
|
Propane tank capacity |
25000 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
LPG skid station equipped with two hydrocarbon pumps, one unloading pump, one twin screw pump, can be used interchangeably to meet the dump truck, car filling, cylinder filling, flip, sewage, emptying, emergency cut off , Level alarm, leak alarm and other functions.
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|

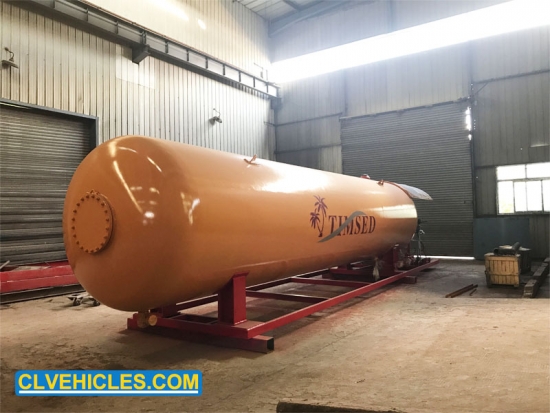

25M3 LPG TANK DIMENSIONS |
|||||
|
Volume of Tank |
25CBM |
||||
|
Filling Weight |
9975 kg |
||||
|
Tank Weight |
5970 kg |
||||
|
Thickness of Shell (mm) |
12 mm |
||||
|
Thickness of Endplate (mm) |
12mm |
||||
|
Tank Diameter (mm) |
2100 mm |
||||
|
Tank Dimensions (mm) (length x width x height) |
7594 x 2124 x 2714 mm |
||||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||||
|
Design Pressure |
1.77 MPa |
||||
|
Corrosion Allowance |
1 mm |
||||
|
Medium Density |
500 kg/ M3 |
||||
|
Manufacturing Standard:Pressure vessels,Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||||
|
Main parts of LPG Tank |
|||||
|
Item |
Specification |
Quantity |
|||
|
Discharge Pipe |
DN80 |
1 |
|||
|
Inflow Pipe |
DN80 |
1 |
|||
|
Outlet |
DN50 |
1 |
|||
|
Gas phase balance pipes |
DN50 |
2 |
|||
|
Manhole |
DN450 |
1 |
|||
|
Drain Hole |
DN50 |
1 |
|||
|
Main accessories：Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||||
|
LPG Skid Part list |
|||||
|
Item |
Model Number |
Quantity (PCS) |
|||
|
LPG Tanker |
40CBM |
1 |
|||
|
LPG Filling scale |
/ |
1 |
|||
|
Filling pump (Chinese Brand) |
/ |
1 |
|||
|
Motor (Chinese Brand) |
/ |
1 |
|||
|
Cut-off Valve |
J41N-40 DN50 |
25 |
|||
It can add Mass Flow Meter for measuring unloading data, LPG compressor for speeding up unloading, Sun Shield for protection and connect with our management system to monitor the live data of tank's stock, unloading quantity and sales quantity.

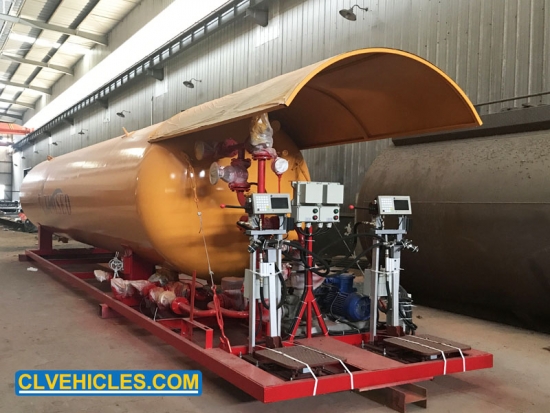

It contains LPG tank, LPG dispenser/ LPG filling scale, LPG pump, Control box, Leakage detection system, water cooling system, level meter and valves as complete set on the skid.
LPG skid storage tank is a series of products about pressure vessels manufactured by our company, the products strictly in accordance with standard to design, manufacture, inspect and accept.

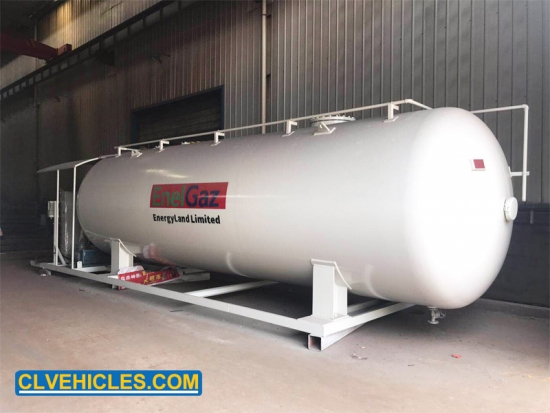

Skid mounted station make the lpg storage tanks, pumps, valves, instruments, equipment, etc. assembled on the formation of the overall filling station. As long as the user leveling the floor, hoisting in place, the tank filling liquid, access to power, immediately will open to use.
LPG skid station it have 2 types : integrated type and split type for optional.
LPG skid station consist of a 20CBM LPG tank, LPG pump&motor, LPG filling scales etc. Carbon steel material , with sunshade.
