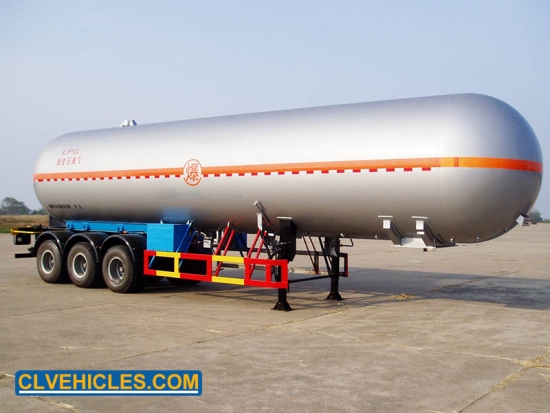

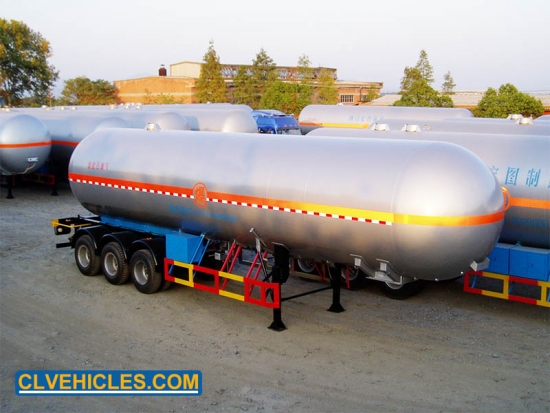

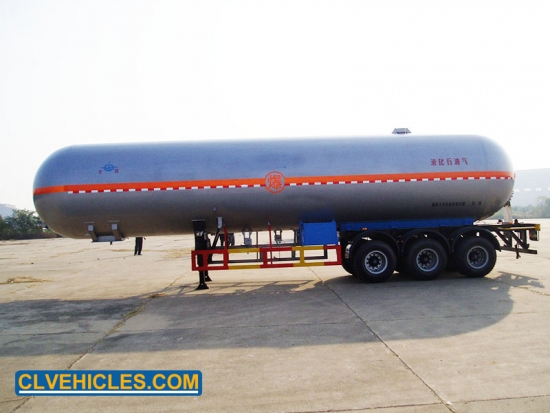

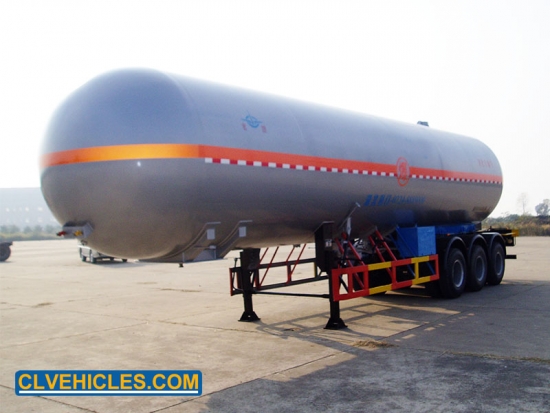

3 axle 58500 liter lpg transport semi trailer

The tanker can be ODM&OEM customized by our professional technician team with best solutions and free logo painting.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL9400GYQ
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD40500
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

3 axle 58500 liter lpg transport semi trailer


LPG semi trailer takes advantage of compression resistant tank for transporting the liquefied ,which is the special vehicles(For example propane, propylene, liquid ammonia, liquid nitrogen, liquid hydrogen, liquefied natural gas, liquid sulfur dioxide and so on) .
The LPG tanker material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.


Quick Details



LPG tank trailer size 13200*2500*3980

Propane tank capacity

58500 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


LPG tank semi trailer  (also called propane storage tank semi trailer , lpg storage tank truck semi trailer ,lpg semi trailer ,lpg tank semi trailer ,lpg road tank semi trailer , propane semi trailer ,lpg gas semi trailer ,lpg transport semi trailer ,propane delivery semi trailer ) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dim-ethyl ether (DME), isobutene, etc




Competitive Advantages



Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



LPG tanktrailer specification

Filling gas

LPG

Loading weight

24570kg

Overalldimension

13000*2500*3977mm

Axles

BPW brand & three axles &13T

Wheel base

7092+1310+1310(mm)

Tire

12.00R22.5 & 12units

Pin

Jost Brand & 50# or 90#

Loading leg

Jost Brand & 25T

Suspension

Leaf springsuspension

Max speed (km/h)

85

LPG tankspecification

Design specific gravity

0.42 Kg/L

Tankcapacity

58500L

Tankmaterial

Q345R

TankDesigned thickness

End cover

13mm

Tank body

13mm

Design temperature

500C

working temperature

-20~500C

Corrosion allowance

1.0mm

Designed pressure

1.77Mpa

Hydraulic test  pressure

2.3MPa

Leak test pressure

1.77Mpa

Heat treatment

Wholly get rid of stress

Use Years

Ten years

Main partsspecification

Liquid level meter

Type

YWG-25

Model

 Hand rotary type

Nominal pressure

PN2.5Mpa

Surveying range

50~2475mm

Precision

2.5Grade

Emergencycutting valve

Type

Gas phase

QGJ43F-2.5-8

Liquid phase

QGJ43F-2.5-7

Nominal pressure

PN2.5Mpa

Nominaldiameter

Gas phase

DN25mm

Liquid phase

DN50mm

Operation way

Fluid pressure

Closing time

≤10 Sec

Melting switch temperature

70±5°C

Safe valve

Type

A412F-2.5--16

Model

Inner full lift

Nominal pressure

PN2.5 MPa

Nominal diameter

DN100mm

Opening pressure

1.73 MPa

Turning  pressure

≤1.93 MPa

Loading and unloading device

Valve type

Gas phase

YKAG-3.3-6

Liquid phase

YKAG-3.3-7

Model

Quick tie-in

Nominal Diameter

Gas phase

DN25mm

Liquid phase

DN50mm

Pressure meter

YN-100T

Temperature gauge

WTQ-280

Lpg gas pump and motor(YQ15-5)

Flow (m³/h)

15.5

Inlet  pressure (MPa)

≤2.0

outletpressure difference (Mpa

0.5

Pump rotate speed (r/min)

780

motor power

(KW)

5.5

Inlet aperture (mm)

50

Outlet aperture (mm)

50

temperature range

(℃)

-40~40

Weight(kg)

108

explosion-proof flow meter

Nominal diameter(mm)

50

Nominal pressure(mpa)

4.0

medium temperature(℃)

-40~150

Body material

1Cr18Ni9Ti

Allow the vibration acceleration

1.0~2.0g

precision

±1%,

supply voltage

DC +12V,DC +24V

explosion-proof sign

flame-proof type:ExdⅡCT2-T5

environmental conditions

temperature-20℃~55℃,relative humidity5%~90%,

applicable medium

gas,liquid,steam

Other equipment

1.double tool box

2.double valve box

3.doubleEmergency Cut-off Valve

4.single pipeliquid out

5.single side loading andunloading
