2 Axles 40,000Liters LPG Tank Trailer 20Tons LPG Tank Trailer 40CBM LPG Tank Semi Trailer


LPG propane tank trailer it can be modified and designed according to the needs of customers. 40cbm to 60cbm available.


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL20190P40
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD34300
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

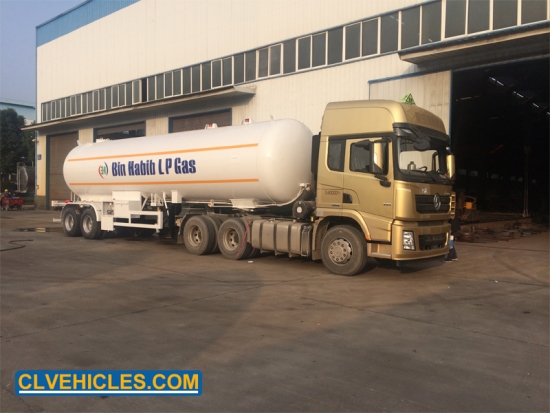

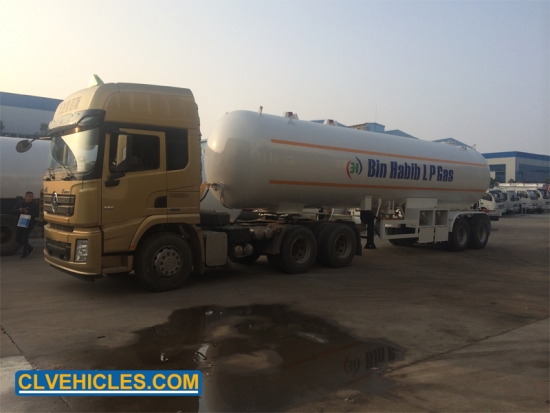

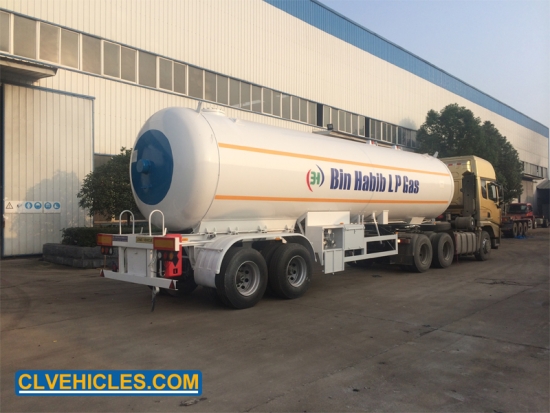

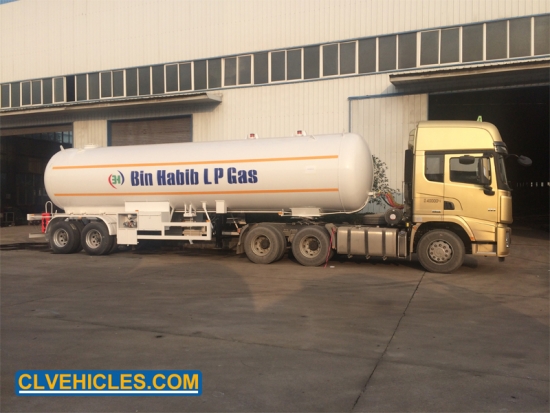

 LPG Tank Trailer 20Tons, 40CBM LPG Propane Tanker Trailer


Liquefied petroleum gas (LPG) tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, level gauge, fire-extinguishing appliance, toolbox, anti-static tape, spare tire frame, plastic tire fender, etc.


Quick Details



Material of Tank

Carbon Steel Q345R

Propane tank capacity

40000 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


Liquefied petroleum gas (LPG) tank trailer include LPG tank body (made of Q345R steel plate), axle, tire, support leg, traction pin, double outlet double valve box (pressure gauge, thermometer, tight cut valve, ball valve), iron anti-wave plate, safety valve, level gauge, fire-extinguishing appliance, toolbox, anti-static tape, spare tire frame, plastic tire fender, etc.




Competitive Advantages



Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Tank Essential Information

Volume of Tank

40 CBM (40,000Liters / 20Tons)

Overall Dimensions(L*W*H)

11324*2500*3730mm

FillingWeight

17010 kg

Tare Weight

13415 kg

Total Weight

30425 kg

Wheelbase

6720+1320mm

Shell of tank

Products

Liquefied petroleum Gas(propane)

Fluid Property

Flammable

Design Temperature

-20~50℃

Design Pressure

1.61 Mpa

Corrosion Allowance

1 mm

Major Materials of Bearing Pressure

Tanker body:Q345, 12mm

End plate:Q345R, 12mm,double ellipse

Main beam:16Mn

Detection

Heat Treatment

Overall treatment in a furnace,600℃to 640℃

Flaw Detection

100% Flaw detection

Test Pressure

1.61Mpa

Hydraulic Test

2.1Mpa

Magnaflux inspection

Aim at welding place thatflaw detection can not cover

Manhole(As customer’s requirement)

1, on top

Safety Valve(As customer’s requirement)

1, on top

Running system

Axles

2*13TFuwa brand

Suspension

Mechanical suspension

Tire

12R22.5 Tubeless tire

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Landing leg

JOST brand, two-speed, manual operating

King Pin

3.5 inch
