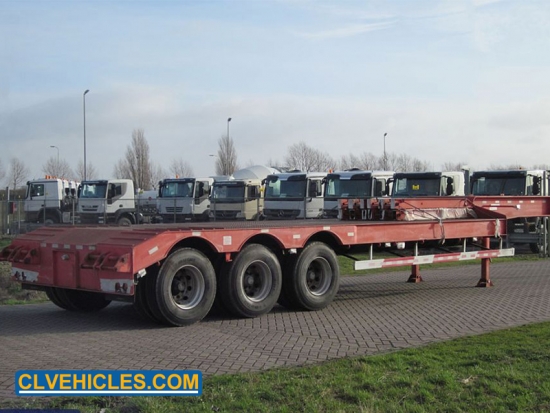

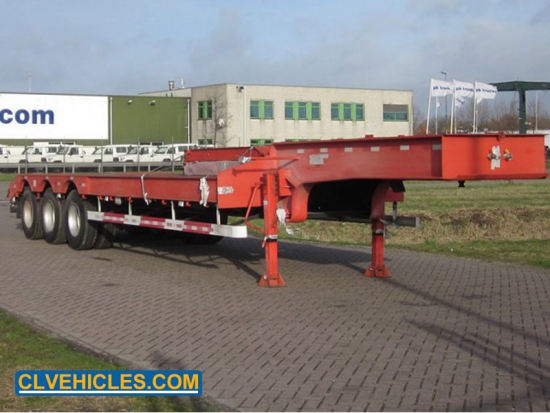

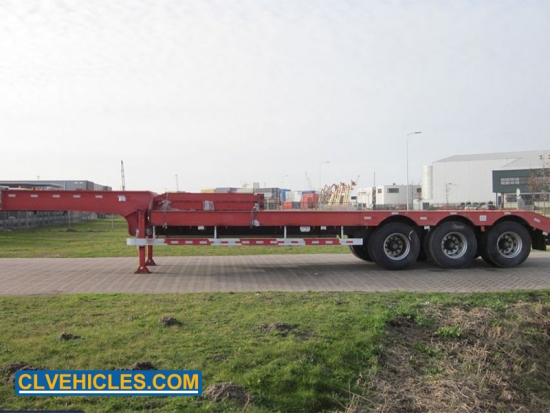

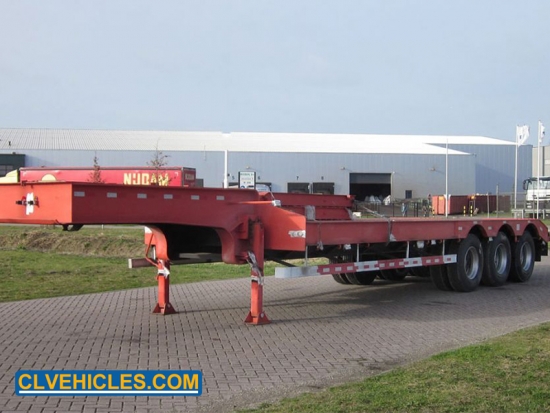

3 Axle 60 Tons Extendable Lowboy Loader Low bed Semi Trailer

3 / 4 axle low bed trailer is generally used for carrying 60-120 Tons capacity loads. These 3 / 4 axle low bed trailer can be platform and pool type according to your demand.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL9400TDP
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 17000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

3 Axle 60 Tons Extendable Lowboy Loader Low bed Semi Trailer


Low bed semi trailer can be delivery for excavators , road rollers , tankers, water trucks and other equipment .some body want 40 tons low bed semi trailer ,50 tons low bed semi trailer,60tons low bed semi trailer ,The size can be design as customer requirements or according to the size of equipment.


Quick Details



Semi-trailer type Low bed semi-trailer
Length 12500mm
Loading capacity 60000kg

Axle

FUWA


Applications


Flatbed semi trailer dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.


CLVEHICLES.COM Semi-trailer


Competitive Advantages

1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2>The most skilled workers make welding of this flatbed trailer more frequent and strong.

3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.



Product Details


 Semi-trailer


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Product

Flat bed semi-trailer

Tare Weight

About7.1T

Dimension
(The exact size depends on final design)

Length: 12500 mm(outside dimension)

Width: 2500 mm(outside dimension)

Height: 3500 mm(outside dimension)

Loading Capacity

60 t

 Van  specification

Twist locks

Type

Lifting type or twist screw type

Number

4.8 or 12

Bottom  platform

Thickness

3mm

Material

diamond steel plate

Running mechanism

Side beam

Thickness

16mm or 18mm

Material

Q235Carbon steel

Main beam

Height

450mm-520mm

Plate

upper plate is 14mm-25mm, middle plate is 8mm-12mm,

down plate is 16mm-25mm

Material

Q235Carbon steel

Axle

Brand

FUWA

Type

13T

Number

3 pcs

Rim

Type

9.0-22.5

Number

13pcs

Tyre

Brand

Triangle brand

Type

12R22.5

Number

13pcs

Suspension

American type mechanical suspension for 3 axle

Spring leaf

Leaf width

90mm

Leaf thickness

13mm

Layer/set

10 Layer

King pin

Brand

JOST brand

Type

Bolts type

Diameter

2.0 inch

Brake system

Air tank

45L air tanks

Brake chamber

6 double Spring brake chamber

ABS

Without

Landing gear

Brand

JOST brand

Type

JOST C200T

Accessories

Spare tyre carrier

2 set

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness) and quick change type

Tool box

One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
