This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
This fuel tanker semi trailer with 4 compartments can transport fuel, oil, diesel and other liquids. High quality steel makes trailer itself lighter but strong enough for heavy cargoes, so that transport company can load more tons.
Brand:
CLVEHICLES.COMModel No.:
CL9409GYY1Minimum Order Quantity:
1 UnitPrice:
USD 25000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

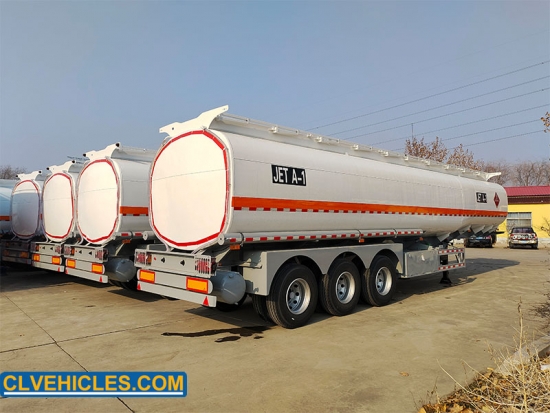

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc3 Axles 48000L JET A1 Fuel Tank Semi Trailer
A tanker is a motor vehicle used to transport liquid and gas fuels on the road.
It is mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel oil, crude oil, lubricating oil and coal tar. Generally, the capacity is relatively large, and it is divided into thermal insulation or non-thermal insulation, pressure-resistant or non-pressure-resistant.
Such vehicles are generally more difficult to drive due to the effects of gravity.
According to the size of the model and capacity, tanker trucks can be divided into large, medium and small types. Larger vehicles typically carry 5,500 to 9,000 US gallons (21,000 to 34,000L). The general carriage is cylindrical or oblate.
Quick Details
| Semi-trailer type |
Fuel Tank Semi Trailer |
| Length | 12800mm |
| Loading capacity | 48000L |
|
Axle |
BPW |
Applications
Oil tanker semi trailer is suitable for transporting liquid oil such as gasoline, kerosene, diesel oil, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products. The tank is equipped with multi-channel anti-wave bulkheads, which makes the tank body strong, stable and the vehicle carried safely and steadily.
World's famous axle brand!——BPW and FUWA.
Various modes of suspension for your choice!—— air suspension, mechanical suspension, single point suspension.
Various kinds of tank material for your choice!—— Q235/carbon steel/CS/stainless steel/SS304/aluminium alloy.
European standard device available!—— oil and gas recovery device, emergency shutoff valve, anti-overflow device, overflow alarm, loading and unloading in the bottom of the tank, exhaust pipe, anti-static zipper, API valve, flow meter.
Division compartments available!
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Main dimensions |
||
|
Product name |
Fuel tank semi trailer |
|
|
Overall dimension Length*width*height |
12800x2500x3500mm |
|
|
Loading capacity |
48000L 48m3 |
|
|
curb weight(kg) |
10800 |
|
|
Gross weight(kg) |
70000 |
|
|
Tank body |
||
|
Material |
Q345B |
|
|
Shape |
Gooseneck body,Square or round (option,according your needs ) |
|
|
Total volume(m3) |
48CBM |
|
|
NO.compartment |
4 |
|
|
Tank body |
5mm |
|
|
Seal head |
6mm |
|
|
Wave proof plate |
4mm |
|
|
Ladder |
Front manual ladder |
|
|
guardrail |
Folding guardrail on top of tank, pneumatic cylinder operated hand rail |
|
|
Manhole cover |
4 euro standard manhole covers, DN500mm 4sets，DN500mm |
|
|
Discharge pipe |
4”rubber hose,2 pieces 6 meters long |
|
|
Outlet |
DN100, 4 sets, self flow, include bottom safety valve with pneumatic controller |
|
|
Drinking water tank |
50L, aluminum |
|
|
Reserve fuel tank |
300L, steel |
|
|
chassis |
||
|
Carbon height stress steel frame |
||
|
Axle |
3 |
|
|
BPW |
||
|
Landing gear |
Jost A300
|
|
|
Suspension |
German Type Mechanical suspension |
|
|
Leaf Spring |
Taiyue brand, 90(W)mm*16mm(thickness)*10layer |
|
|
King pin |
(3.5" 90# Removable) |
|
|
Suspension |
Leaf spring Suspension |
|
|
Braking System |
Pneumatic, WABCO brand, 6 double spring brake |
|
|
Tire |
12+1pieces 12R22.5 9.0R22.5 |
|
|
Painting |
Tank inside: Epoxy paint; Tank outside: normal paint, white color |
|
|
Accessories |
1.One standard tool box 2.fire extinguisher 2 pieces 3.spare tire rack 1 pieces 4.ABS 5.EBS(including RSS system) |
|
High quality carbon steel oil tank trailers made in China for export. With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.
According to users' needs, the tank can be designed as a single compartment or several compartments to contain different oils.
The tanker is made of 4mm or 6mm high-quality carbon steel produced by iron and steel companies according to national standards,and the shape is divided into oval or circular tank, which can hold 1-4 kinds of oil products. Can also produce heating and insulation series tank.
The fuel truck is a vehicle for transporting oil materials. The fuel truck is equipped with a tanker that can move with the truck and a vehicle that distributes fuel to oil-receiving equipment.
The tank is all made of aluminum steel, and the best hygienic level is achieved by automatic welding and surprise polishing. Polyurethane overall thermal insulation layer, ensure 24 hours is greater than or equal to 2 ℃ temperature rise.
Design multiple compartments or single compartment according to requirements. Reliable safe breathing valve prevents dust entering, reduces material loss and improves safety of the whole tank.
