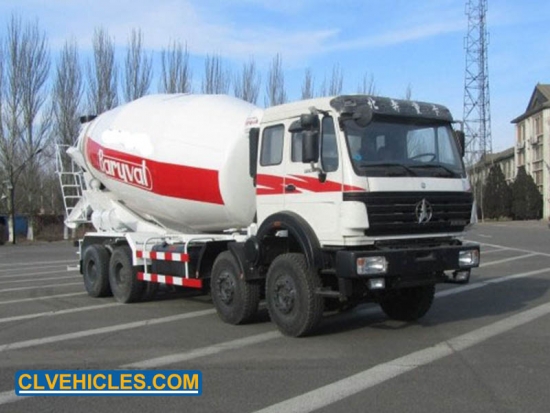

BEIBEN 16 CBM cement mixer truck

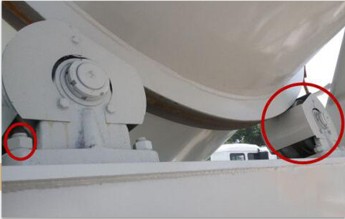

The front end of the mixing tank is connected with the reducer and installed on the front end of the rack. The rear end is supported by two supporting wheels installed on the back end of the rack through the raceway.
  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5250GJBN1
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD65000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

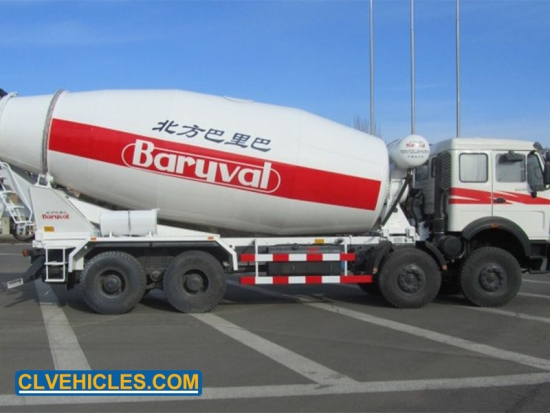

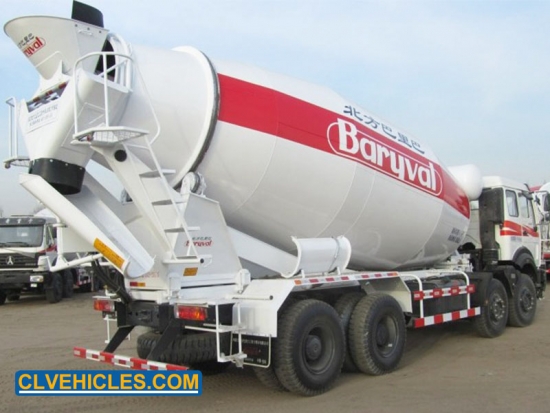

BEIBEN 16 CBM cement mixer truck


Agitator truck is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has  limited height and width  requirements for the vehicle, small concrete mixer trucks (2m³  to 6 m³)  that are perfect for the demands.


Quick Details


Product name

Concrete mixer truck

Drum mixing volume

10CBM

Chassis Brand

IVECO

Reducer brand

Italy brand, BONFIGLIOLI

Hydraulic pump brand

American brand sunny

Hydraulic motor brand

American brand sunny


Applications


Cement mixer truck can be used to transport,and during transport, it will remain mixing drum rotation to ensure the delivery of concrete not being solidified.

High Pressure Road Washing Truck


Competitive Advantages

1.Nice shape and rational structure

2.High-intensity drum material

3.Famous brand hydraulic system

4.Customized product according to the height and width limit

5.It is with FOTON chassis ,perfect performance!

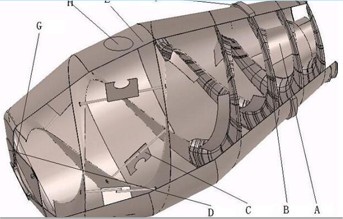

B520JJ Alloy Steel,mixing tank life 50000-80000CBM, mixing blade life 30000-40000CBM, 3D mixing technology

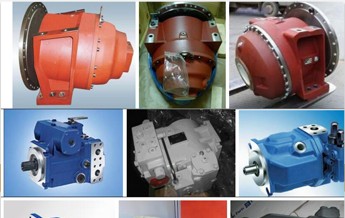

Reducer Italian Bonfiglioli, PMP, Gemany ZF / Hydraulic pump and motor , American Fation and Saurer


Supporting roller imported form Japan
Cover for preventing corroded by falling concrete

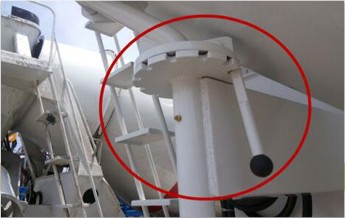

Output hopper can be rotated 270 degrees and fixed in any slot

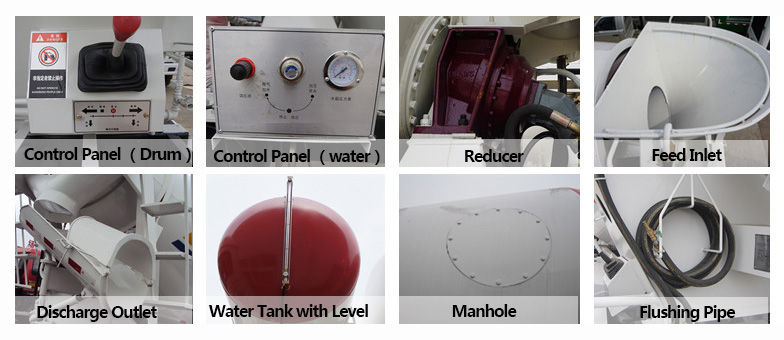

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Boddy
Suppy only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Truck Specification

Chassis model

CLW5312GJBN1

Cab

NG80B

Driving Type

8*4 Left hand driving

Max Speed (km/h)

80

Overall dimension(mm)

10550×2500×3980(mm)

GVW( kg)

31000

Mass in working order( kg)

17220

Wheelbase(mm)

1500+3550+1450

F/R track base(mm)

1995/1880

F/R overhang(mm)

1410/2590

Approach/Departure Angel

26/20(°)

Tire

12.00R20

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

10+2 speed

Bridge

Frontaxle

6.5T

Rear axle

13T

Enging

Model

WP10.375

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

9726

Max output power(hp)

375

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Upper-Body  specification

Drum mixing volume (m3)

16





Input rate (m3/min)

≥2.8

Output rate (m3/min)

≥1.2

Filling rate

65%

Residual rate

<0.5%

ReducerDescription

Reducer brand

Italy brand, PMP7.5

Gear ratio

1:130

Torque (N . m)

75000

Max input speed(r/min)

2500

· Output flange Angle(°)

-3 - 3

Hydraulic PumpDescription

Hydraulic pump brand

America brand, SAUER(R-100)

Max Flow rate (L/min)

330

Rated pressure (MPa)

420

Max output speed (rpm)

134

Max torque/Rated pressure (N.m)

970

Hydraulic MotorDescription

Hydraulic motor brand

America brand,  SAUER

Max Flow rate (L/min)

280

Rated pressure (MPa)

40

Weight(kg)

18

Max torque/Rated pressure (N.m)

970

Water Supply System Description

Water supply type

Air pressure

Working pressure (MPa)

0.25-0.3

Water tank volume (L)

450

SEND A MESSAGE
CLVEHICLES is one of the experienced truck manufacturer, export various special trucks, accept custom srevice, welcome to visit our factory and showroom to know more about us.
( This * is Required )
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
Related Product
cement mixer truck

FOTON 5 CBM cement mixer truck with SUNNY pump

Small mixer can be widely used in mines, tunnels, township, village, town road, water conservancy projects, the end of large projects, short-term, small projects, micro-small mixing station, subway, national defense and other engineering construction.

agitator truck

FOTON 4 CBM agitator truck with SUNNY pump

Self-loading aggregate, cement and water, mix and transport.Our product is the top-choice for the concrete transportation for rural construction,urban construction,tunnel,airport,seaport,high-speed rail,beam field,bridge construction projects and so on.

concrete mixer truck

FOTON 3 CBM concrete mixer truck with SUNNY pump

These trucks are equipped with cylindrical mixing drums to carry mixed concrete.During transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify.

concrete mixer truck

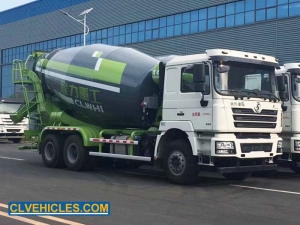

SHACMAN 10 CBM concrete mixer truck

Concrete mixer truck is a special truck used to transport concrete for construction; because of its shape, it is often referred to as a field snail truck.After the concrete is transported, the inner part of the mixing drum is usually flushed with water to prevent the hardening of the concrete from occupying space, so that the volume of the mixing drum becomes smaller and smaller.

cement mixer truck

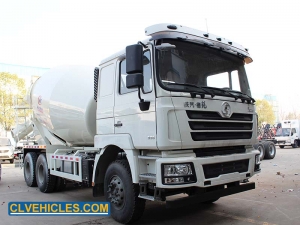

SHACMAN 9 CBM cement mixer truck

Easy to operate, a handle to achieve centralized control of mixing tank, the configuration mature and reliable, easy maintenance.

cement transmit vehicle

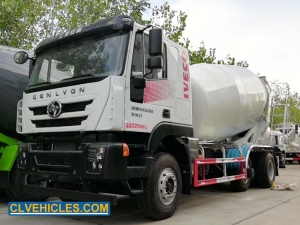

IVECO 10 CBM cement transmit vehicle
