A. Cleaning work

 1 Turn on the power of the control box and point the control valve to the position of the auxiliary valve.

 2 Start the auxiliary machine.

 3 Turn the auxiliary engine clutch control button to the closed position, and the fan starts to work.

 4 Turn the vacuum box control button to the lowered position.

 5 Turn the left or right pan control button to the down position.

 6 Turn the swipe left or swipe right control knob to the forward position (clockwise on the left and counterclockwise on the right).

 7 Turn the left spray, right spray, and rear spray control buttons to the on position.

 8 Turn the water pump control knob to the on position.

 9 The vehicle drives at an appropriate speed and starts the cleaning action.

B. After cleaning work

 1 Stop the vehicle.

 2 Turn the water pump control button, left spray control button, right spray control button, and rear spray control button to the off position.

 3 Turn the broom control button to the middle position.

 4 Turn the sweep control knob to the raised position, and then to the middle position.

 5 Turn the vacuum box control button to up, and then to the middle position.

 6 Turn the sub-engine clutch control knob to the minute position, and then to the middle position.

 7 Turn the control valve control key to the middle position.

 8 Turn off the auxiliary engine.

 9 Turn off the power of the control box.

C. Empty the garbage tank

 1 Turn on the power of the control box and point the control button of the control valve to the position of the main valve.

 2 Start the main engine of the vehicle.

 3 Depress the vehicle clutch.

 4 Turn on the oil pump clutch switch attached to the vehicle (pull outward).

 5 Release the vehicle clutch at an appropriate speed.

 6 Turn the back door control button on the control box to the open position, and then point to the middle position after 5 seconds.

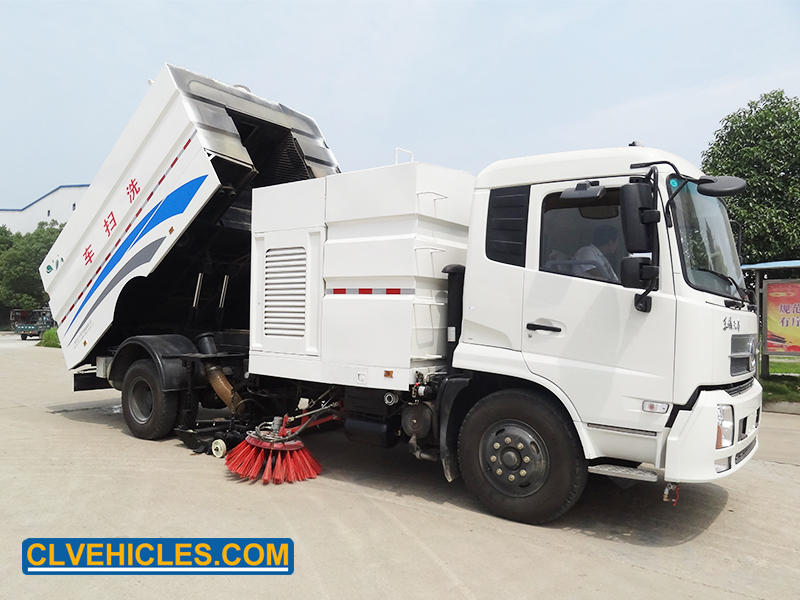

 7 Turn the car control button to the up position, according to the car tilt angle, you can point the control button to the middle position at any time, at this time the car tilts up and stops.

 8 Garbage cleaning.

 9 After cleaning the garbage, point the car control button to the down position, and after the car is fully returned, point the control button to the middle position.

 10 Turn the back door control key to the closed position, and then point to the middle position after 10 seconds.

 11 End of garbage cleaning.

 12 Depress the vehicle clutch.

 13 Close the additional oil pump clutch control button (push inward).

 14 Release the vehicle clutch at an appropriate speed.

 15 Point the control valve of the control box to the middle position.

 16 Power off the control box.
