Brand:
CLVEHICLES.COMModel No.:
CLW5063JGKEQ16FMinimum Order Quantity:
1 UnitPrice:
USD 32000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
Wireless Controlled Aerial Lift Vehicle

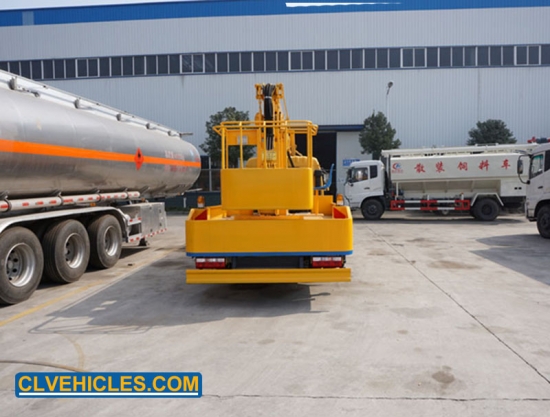

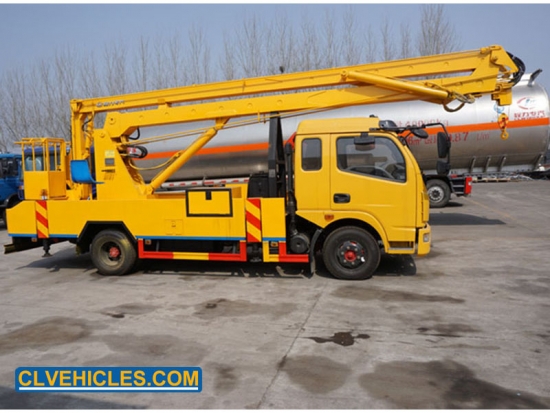

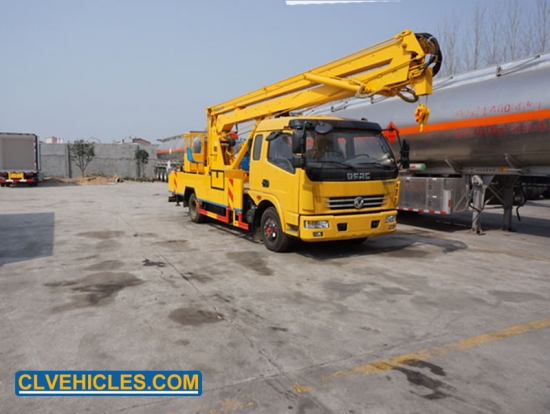

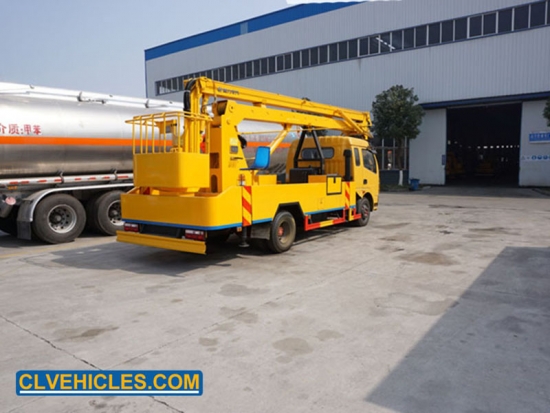

DONGFENG Wireless Controlled Folding 16 Meters Aerial Lift Vehicle is a folding type Aerial Platform Truck with remote control function. It has three folding arms and provides temporary access for people or equipment to inaccessible areas of 16 meters height. The arm shaft is compact, flexible and large operating range. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.
Quick Details
|
Chassis Brand |
DONGFENG |
|
Horsepower |
115hp |
|
LHD/RHD |
LHD/RHD |
|
Type |
Folding Type |
|
Working Height |
16 meters |
| Color |
As requirements |
Applications
Bucket Truck is mainly used for municipal engineering,municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1.It uses SINOTRUK chassis, which has choices for both LHD and RHD. And the cab has advanced design with fully automatic welding manipulator ABB.
2.It is folding type, which has price advantage compared with telescopic type Bucket Truck. The working altitude can reach to 14 meters . And the bucket loading capacity is about 200KG with non-slip body.
3.Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4.Computer controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5.Slewing mechanism adopts adjustable type, which is easy to adjust.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
||||
|
Truck model |
CLW5063JGKEQ16F |
|||
|
Cab |
DONGFENG double rows of seats, with A/C |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
95 |
|||
|
Overall dimension (mm) |
Appro.7400*1980*3000 |
|||
|
GVW (kg) |
Appro. 5390 |
|||
|
Mass in working order( kg) |
Appro. 5000 |
|||
|
Wheelbase (mm) |
3300 |
|||
|
Tire |
7.00R16 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
WLY 5 forward speed and 1 reverse speed |
|||
|
Bridge |
Front axle load-bearing |
2.4 tons |
||
|
Rear axle load-bearing |
4.2 tons |
|||
|
Engine |
Brand |
YUCHAI |
||
|
Model |
YC4F115-30 |
|||
|
Fuel Type |
Diesel fuel |
|||
|
Emission Standard |
Europe III |
|||
|
Type |
Water-cooled four-stroke, supercharged inter-cooling, turbo charged |
|||
|
Exhaust (ml) |
2659 |
|||
|
Max output power/rotate speed (hp /rpm ) |
115/3200 |
|||
|
Max torque/rotate speed (N.m/rpm) |
285/2200 |
|||
|
BrakingSystem |
Service Brake |
Air brake |
||
|
Park Brake |
Spring energy |
|||
|
Electric system |
24V |
|||
|
Special Function |
||||
|
Working height (m) |
16 |
|||
|
Max working radius (m) |
8 |
|||
|
Boom type |
Three sections folding working boom |
|||
|
Rated loading in the bucket(kg) |
250 |
|||
|
Bucket size (mm) |
1300*1000*1000 |
|||
|
Rotating speed (r/min) |
0-2 |
|||
|
Rotation Angle |
360°continuously |
|||
|
t Span of supporting legs |
Horizontal |
Appro. 3500mm |
||
|
longitudinal |
Appro. 4000mm |
|||
|
Boom control mode |
1.Bucket control 2.Manual operation 3. Remote control |
|||
|
Supporting legs |
Four hydraulic supporting legs with manual operation |
|||
|
Other configuration |
1. Balance amplitude limiting system 2. LCD Monitor 3. Wireless walkie-talkie 4. Manual emergency pump 5. Strobe light on supporting leg |
|||
|
Accessories |
1.Basket with engine start - off device 2.Lighting on Basket (55W) 3.Wired and wireless controllers (CAN-bus) 4.Proportional Joystick Controller 5.Emergency power unit 6.Proportional Joystick Controller |
|||
|
Working Condition: |
1.Altitude: 0-4500m 2.Temperature: -350C~+450C 3.Relative humidity: 80% 4.Wind force: ≤8 degree |
|||
|
Features: 1.Front Handrear H legs, good stability,whichcan be operated at the same time or independently, andadapt to a variety of working conditions. 2.Computer controlled, automatic limit, alarming when indangerous work, excellent safety performance. 3. With a monitor, real-time display of the vehicle operating conditions. 4.Hexagonal working arm, synchronization telescope, compact structure, high efficiency and wide operating range. 5. External telescopic cylinder, chain telescopic mechanism, easier to observe the fault point, convenient maintenance. 6. WithCAN-buscontrol system, thecircuit is neat and simple. 7.The vehicle hasthree operation ways: platform operation, operating on the ground, and remote control operation, which is safe, reliable and high efficiency. 8.Slewing mechanism adopts adjustable type, which is easy to adjust. 9. Non-slip body 10. Toolbox (2 pieces) |
||||
