DONGFENG KINGRUN 15ton ranking garbage trucks with hook arm lift

The hook-arm garbage truck is a special vehicle used for garbage transfer and unloading operations in urban garbage compression stations.


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLW5250GBLJ
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD32800
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

DONGFENG KINGRUN 15ton ranking garbage trucks with hook arm lift


The hook-arm garbage truck is a special vehicle used for garbage transfer and unloading operations in urban garbage compression stations. It consists of a truck chassis, a dump cylinder, a rear door cylinder, an attached frame, a garbage bin and a rear door swing lever. The operation is completed by the hydraulic control system, and the control mode can be manual or electrical control. It is mainly used for garbage removal in urban and rural garbage compression stations.

Quick Details



Chassis Brand DONGFENG
Carriage body volume  8-15CBM
Filling Cycle Time 50-60s/once

Hydraulic Pressure

20Mpa


Applications


Hydraulic hooklift hoists are mounted on heavy duty trucks to enable hauliers to change out flatbeds, dumpster bodies, and similar containers. Primarily used in conjunction with tilt frame bodies and specialised containers, generally designed for the transportation of materials in the waste, recycling, scrap and demolition industries.

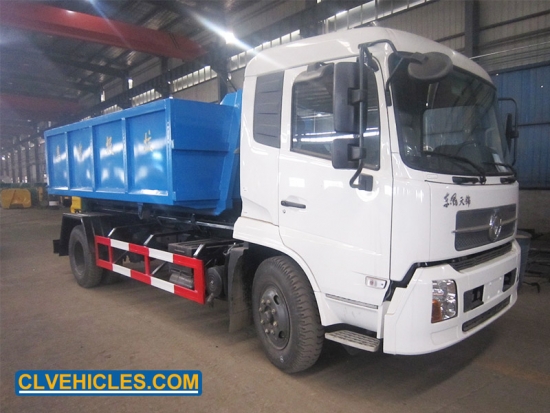

hook arm garbage truck

Competitive Advantages

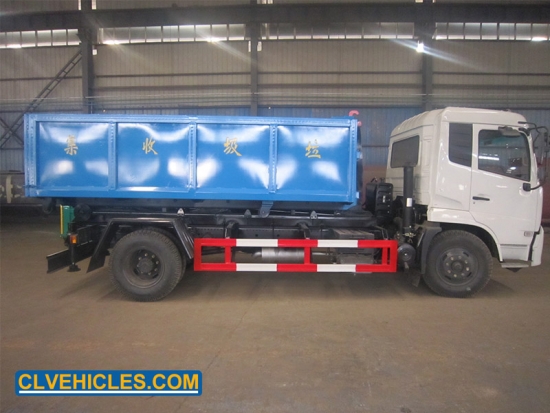

removable garbage truck with hook arm



Product Details

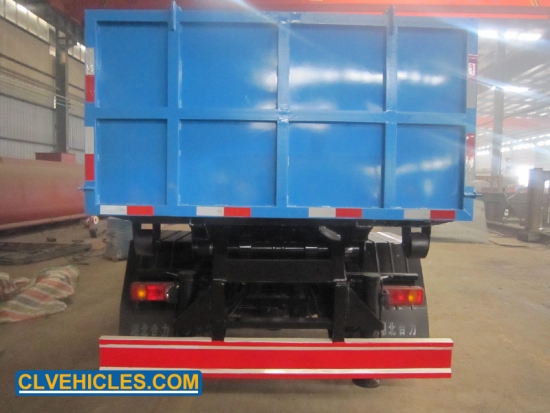

arm roll off garbage truck

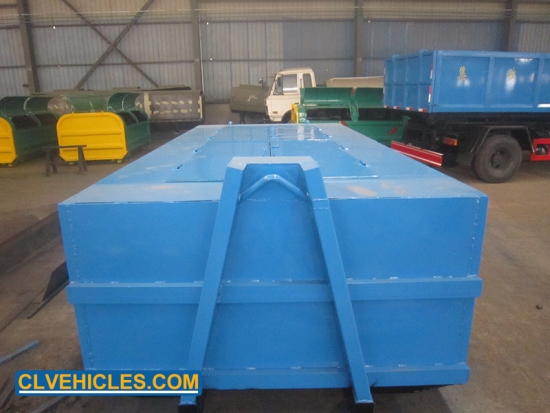

Hook Lift Garbage TruckGarbage bins for arm hook truck

Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Chassis brand

Dongfeng

Cab

One and half row cab

Driving Type

4*2

Max Speed (km/h)

100

Overall dimension(mm)

8900×2500×2900

GVW( kg)

15000

Mass in working order( kg)

8800

Wheelbase(mm)

4700

F/R track base(mm)

1569/1530

F/R overhang(mm)

1068/1997

Approach/Departure Angel

22/25

Tire

11.00R20

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

8-speed

Bridge

Front axle

5T

Rear axle

10T

Enging

Model


B190-33


Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

6800

Max output power/rotate speed (hp /rpm )

190/2800

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Upper-Body  specification

Material of tank

material : Q235,Thickness :3mm (side) 4mm(bottom)

Operation control system

Electrically hydraulic control

Container load time

50-60s

Container unload time

40-50s

Garbage unloading way

Lifting and dump

Hydraulic system pressure

20Mpa

Standard configuration

Hook lift system , sub frame, lock cylinder, multiple valve, operating handle
