ISUZU 3000 liter Water Tank Fire Truck
Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
It is ideal for fire brigades that need reliable, large-capacity vehicles to effectively handle various fire incidents and ensure the safety of life and property.
Brand:
CLVEHICLES.COMModel No.:
CL5185GXFQ3Minimum Order Quantity:
1 UnitPrice:
USD53000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

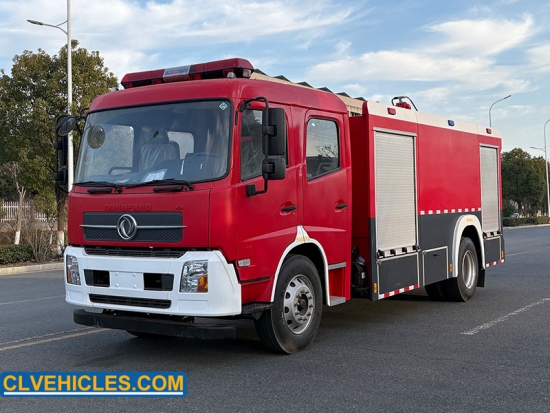

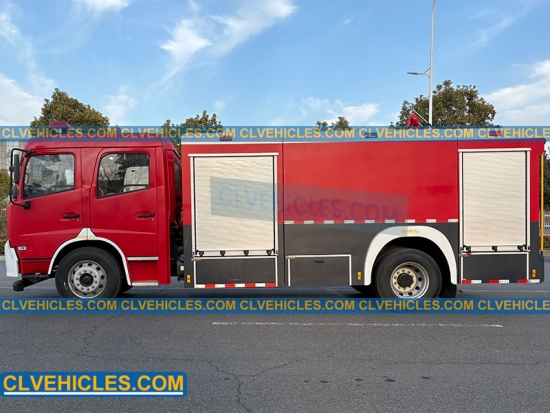

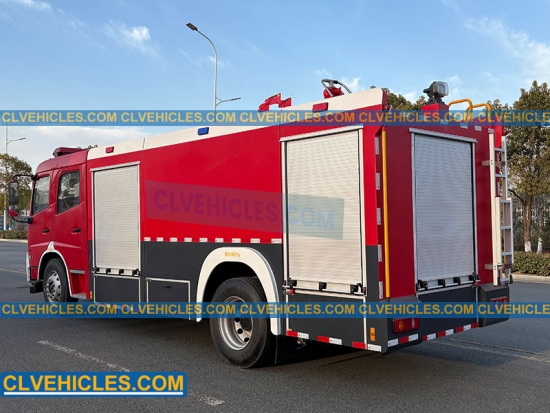

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDONGFENG KINGRUN 5000L Water 1000L Foam Tank Fire Fighting Truck
The Dongfeng 5000L Water 1000L Foam Tank Fire Truck provides versatile firefighting capabilities for a variety of emergency situations. It is equipped with a 5000-liter water tank and a 1000-liter foam tank, which can effectively extinguish both ordinary fires and chemical fires. This truck is designed for rapid response and efficient firefighting, thereby enhancing safety and control at the scene. Its advanced foam system ensures thorough firefighting and is particularly suitable for extinguishing flammable liquid fires. It adopts a durable chassis, combining maneuverability and powerful performance, making it ideal for driving in urban environments.
Quick Details
| Product name |
Fire fighting truck |
|
Water Tank Capacity |
5000L |
|
Foam Tank Capacity |
1000L |
|
Chassis Brand |
DONGFENG KINGRUN |
|
Horsepower |
210hp |
|
Fire Pump |
CB10/40 |
|
Fire Monitor |
PL32 |
Applications
Fire truck is mainly used for fire response tasks, most national fire departments, also use it for other emergency rescue purposes.Fire engines can transport firefighters to disaster sites and provide them with a variety of tools to carry out relief missions.
1.ISUZU chassis and engine , perfect and reliable performance.
2.Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet.
3.Independent fire pump room , ensure the smooth progress of the work.
4.Intelligent control integration system ,mange the working state of appearance directly
5.It is with ISUZU chassis ,perfect performance!
Customer Services
|
Chassis Specification |
|||||
|
Truck model |
CLW5185GXFQ3
|
||||
|
Cab |
DONGFENG KINGRUN |
||||
|
Driving Type |
4*2 Left hand driving |
||||
|
Max Speed (km/h) |
95 |
||||
|
Overall dimension（mm） |
8450*2500*3500
|
||||
|
GVW（ kg） |
18100 |
||||
|
Mass in working order（ kg） |
10650 |
||||
|
Wheelbase（mm） |
5000 |
||||
|
F/R track base（mm） |
1960/1855 |
||||
|
F/R overhang（mm） |
1335/2300 |
||||
|
Approach/Departure Angel |
26/14 |
||||
|
Tire |
275/80R22.5 |
||||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||||
|
Steering |
Hydraulic steering with power assistance |
||||
|
Gear box |
6-speed |
||||
|
Bridge |
Front axle |
4.5T |
|||
|
Rear axle |
9T |
||||
|
Enging |
Model |
ISB210 50 |
|||
|
Fuel Type |
Diesel fuel |
||||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
||||
|
Exhaust（ml） |
5900 |
||||
|
Max output power(hp) |
210 |
||||
|
Max torque(N.m) |
750 |
||||
|
Braking system |
Service Brake |
Air brake |
|||
|
Park Brake |
Spring energy |
||||
|
Eletric system |
24v |
||||
|
Upper-Body specification |
|||||
|
Tank |
Structure |
Welding, there is clapboard inner. |
|||
|
Material |
Water Tank |
High quality carbon steel plate, anti-rust treatment |
|||
|
Capacity
|
Total |
6000L |
|||
|
|
Water Tank | 5000L |
|
||
|
Foam Tank |
1000L | ||||
|

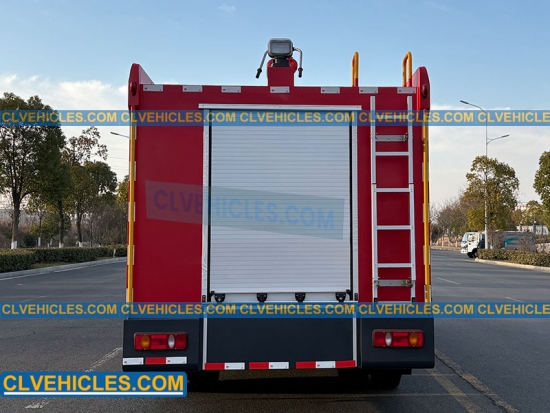

Equipment box |
Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. |
||||
|

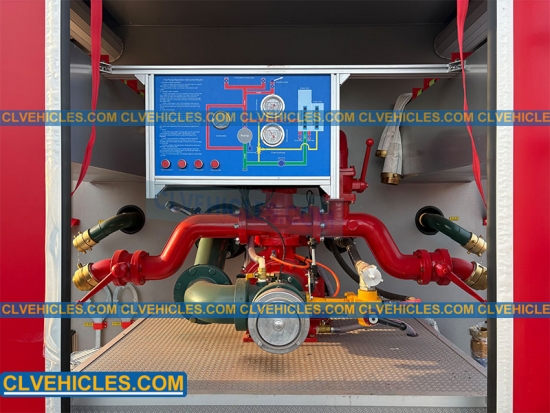

pump room |
on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. |
||||
|
Special PartsParameter |
Fire Pump |
Type |
Normal pressure fire pump |
||
|
Model |
CB10/40 |
||||
|
Flux |
40L/S |
||||
|
Pressure |
1.0Mpa |
||||
|
Fire Monitor |
Type |
For waterand foam |
|||
|
Model |
PL32 |
||||
|
Flux |
32L/S |
||||
|
Pressure |
1.0Mpa |
||||
|
Additional drive system |
Use sandwich PTO, splashing-type lubricate, can put out fire when driving. |
||||
|
Additional operation system |
PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on |
||||
|
Additional cooling system |
The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating |
||||
|
Additional Electrical system system |
warning light ,warning sirens |
||||
|
Pump pneumatic control valve switch，Pump speedometer，Electronic level gauge |
|||||
|
Fire lights, pump room lights, equipment box lights |
|||||
|
Additional instrumentation |
pressure gauge |
||||
|
speedometer |
|||||
|
level gauge |
|||||
|
vacuum gauge |
|||||
|
Carriage |
Carriage is made of high quality steel and Aluminum embossed sheet |
||||
|
Rolling shutter door |
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. |
||||
|
color |
The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. |
||||
Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
The truck is composed by the tank, pump room, equipment boxes, power output and transmission system, piping systems, electrical systems and other components, widely used in urban public security fire brigades, petrochemical, industrial and mining enterprises, forests, ports and other departments.
Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially. For functions, it is divided into several kinds, including Pump truck, Ladder truck, and other trucks with some special equipment.
Fire truck, also known as fire engines, refer to special vehicles used to perform fire fighting tasks. The fire department in most countries of the world will also use it for other emergency rescue purposes.
Fire fighting truck is specially used for fire fighting vehicles or other emergency rescue purposes. It can be divided into pump truck(water supple vehicle sprinkling water or fire), aerial(high save) and other special vehicles according to their function.
Fire truck, also known as fire engines, refer to special vehicles used to perform fire fighting tasks. The fire department in most countries of the world will also use it for other emergency rescue purposes.
