DongFeng KINGRUN High Pressure Road Washing Truck

High Pressure Road Washing Truck equipped with 9000 liter water tank and German high-pressure water pump.Maximum pressure of washing up to 16MPa.
  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLW5160TXSL4
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD58000 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

DongFeng KINGRUN High Pressure Road Washing Truck


The high pressure washing truck is refitted on DongFeng chassis and installs with auxiliary engines, fans, high-pressure pumps, clean water tanks, dustbins, left and right sweeping plates, wide suction with spray bars, low-pressure flushing system, sweeper dust-reducing system, hydraulic system, and electronic control system.There are nine kinds of working modes are available for selection.


Quick Details


Product name High Pressure Road Washing Truck

Water Tank Capacity

9000L

Garbage Tank Capacity

7000L

Chassis Brand

DONGFENG KINGRUN KR

Horsepower

170hp

Sweeping Width

3.2m

High Pressure Cleaning Width

3.5m

High Pressure Cleaning Speed

3-20Km/h

Maximum Cleaning Capacity

70000M2/h

Clean efficiency

≥ 95%

Maximum Suction Size

120mm


Applications


Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.

High Pressure Road Washing Truck


Competitive Advantages

1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.

2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.

3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.

4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.

5.It is with DongFeng chassis ,perfect performance!


High Pressure Road Washing Truck


Product Details

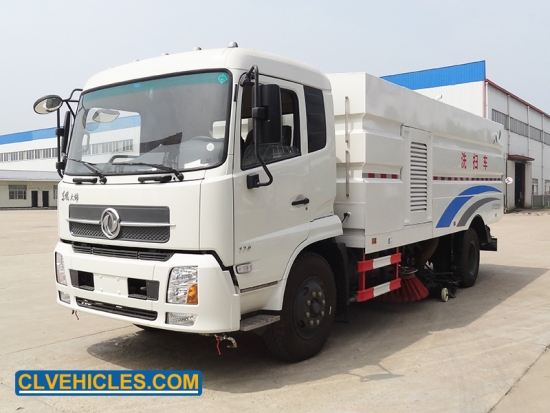

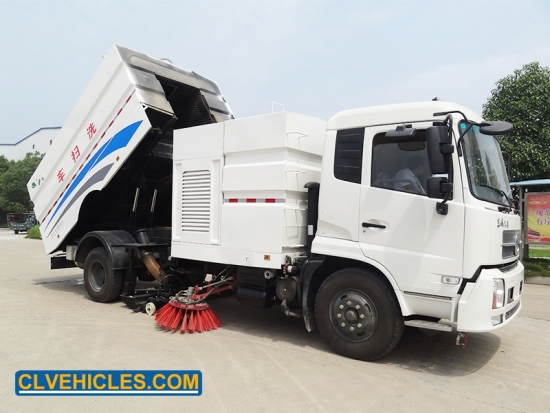

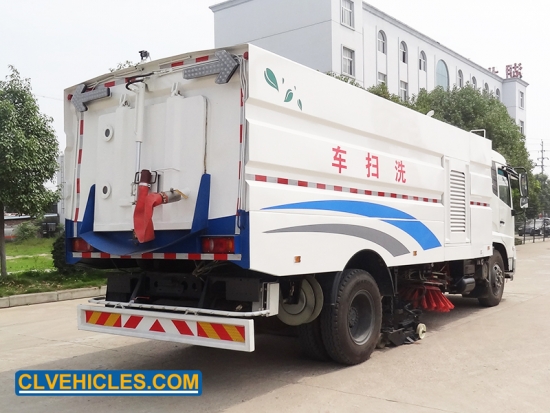

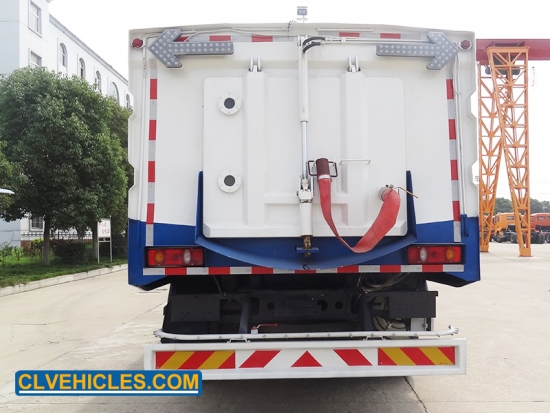

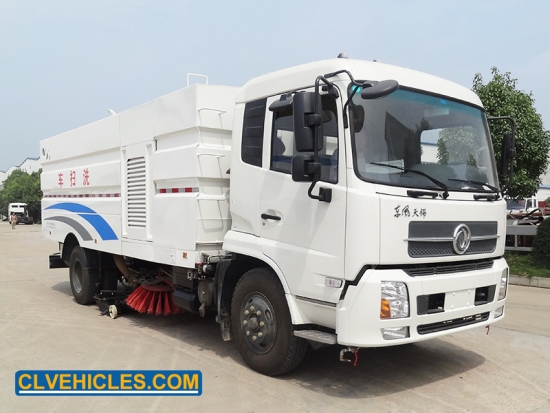

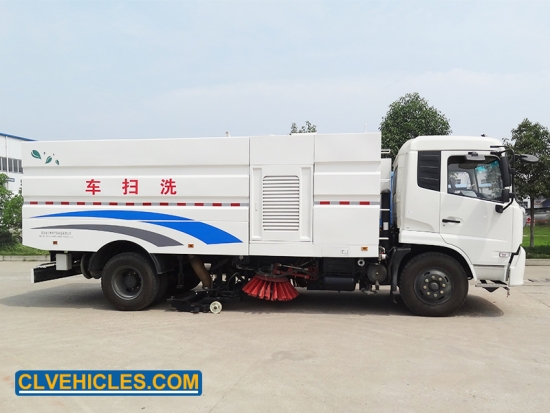

 High Pressure Road Washing Truck



Customer Services









Product Parameters

Vehicle performance and parameters

Item

Parameter

Unit

Working Performance

Max sweep width

3.5

m

Low pressure flushing width

24

m

Sweep speed

3—20

km/h

Max sweep capacity

70000

m2/h

Max inhalation of granularity

≥110

mm

Angle of unloading

≥48

Volume of water tank

9000

L

Volume of garbage tank

7000

L

Driving Performance

Max speed

98

km/h

Max gradeability

30

%

Braking distance

≤10

m

Min turning diameter

≤13.6

m

Fuel Performance

Fuel consumption(Driving)

≤12

L/100km

Fuel consumption(Sweep working at 8km/h)

6.5

L/h

2.7

L/10000m2

Quality Parameters

Curb weight

11350

kg

Rated capacity

4255

kg

GVW

16000

kg

Dimension Parameter

Overall dimensions

8280*2490*3100

mm

Wheelbase

4700

mm

Track front

1880

mm

Track rear

1800

mm

Front suspension

1430

mm

Rear suspension

2150

mm

Approach angle

20

Departure angle

13


Main parts and parameters

Chassis

Chassis model

DFL1160

Engine model

Cummins B170-33

Engine power

125kw/ 170hp

Clutch system

single disc, dry type, diaphragm spring clutch

Gearbox

Fast 8JS85E    8speed +2reverse

Driving axle

5T/10T

Cabin

153G type one and half row, with A/C

Tire

10.00R20

Vice-fan Engine

Brand

Cummins

Rated power

125kw/170hp

Fuel type

Diesel, share with chassis fuel tank

Draught Fan

Type

high pressure centrifugal specialized draught fan

Rated speed

2600—2900r/min

Actuator type

Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission

Hydraulic System

Type

open type and electrohydraulic control system

Main part

gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump

Hydraulic relief pressure

15Mpa

Hydraulic oil tank

60L

Spray Watering

Main part

electric water pump, water filtration system, spray nozzle, water tank



Electric System

Composition

Madeof chassis electric system and vice-fan engine with other work operating system

Systemvoltage

12V

Battery model

12-80A.H

High pressure flushing system

High pressure pump

Germany plunger pump

Rated pressure

20MPa

Working pressure

10Mpa

Rated flow

106L/min

Rated speed

1000r/min

Control type

Cylinder driving electric control

Low pressure flushing system

Low pressure pump

80QZB60/90

Rated flow

1000L/min

Head of delivery

90m

Flushing width

24m

Sweeping Device

Type

Two sweeping devices between two axle in the middle, symmetric distribution on both side, drive by hydraulic motor, three speed level control, independent control

Diameter

f900m

Rotate speed

Three level :110r/min 80r/min  60r/min

Dip angle

Forerake 4o—6o  ,Out incline 2o—4o

Suction Nozzle

Type

U-shaped, Free to move

Diameter

f200mm

Ground clearance in working

5—10mm

Accessories

LED arrows lamp

Schneider Control switch

Draught fan(maintenance-free)

Manual pump emergency system

Anti-overflow alarm device on water and dust tank

Low level alarm device on water and dust tank

Working and parking monitor in cabin

SEND A MESSAGE
CLVEHICLES is one of the experienced truck manufacturer, export various special trucks, accept custom srevice, welcome to visit our factory and showroom to know more about us.
( This * is Required )
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
Related Product
DongFeng road washing vehicle

DongFeng KINLAND KL 12000 Liter Water Tank and 10000 Liter Dustbin Road Washing Vehicle

6x4 type washing vehicle is equipped with 12CBM water tank and 10CBM dustbin, large size will extend working time and improve work efficiency.

street cleaning  truck

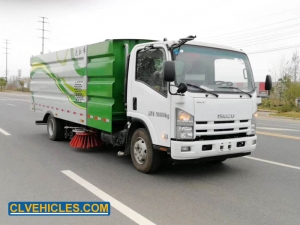

Isuzu 700P street cleaning truck
