DongFeng KINGRUN High Pressure Road Washing Truck
High Pressure Road Washing Truck equipped with 9000 liter water tank and German high-pressure water pump.Maximum pressure of washing up to 16MPa.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Brand:
CLVEHICLES.COMModel No.:
CL5160TXSF5Minimum Order Quantity:
1 UnitPrice:
USD58000 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcFAW J5K RHD High Pressure Sweeper and Washing Truck

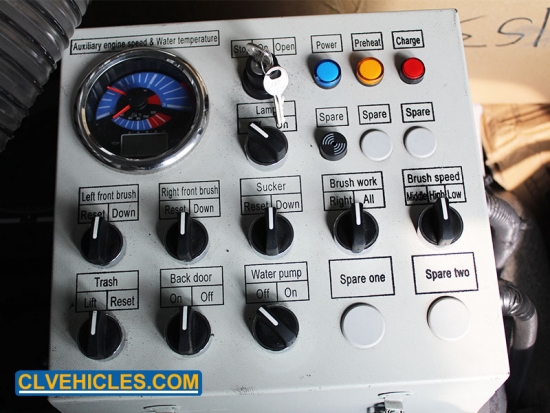

The high pressure washing truck is refitted on DongFeng chassis and installs with auxiliary engines, fans, high-pressure pumps, clean water tanks, dustbins, left and right sweeping plates, wide suction with spray bars, low-pressure flushing system, sweeper dust-reducing system, hydraulic system, and electronic control system.There are nine kinds of working modes are available for selection.It is set up a complete new pneumatic conveying system with parts wind volume filtration for parts reverse blow circulation as well as wind channel switch air damper during rainy day operation, which can realize working condition switch between dry dust collection operation and sweep operation in rainy day, so which can working in all weather condition without reference to weather condition.
Quick Details
| Product name |
High Pressure Road Washing Truck |
|
Water Tank Capacity |
9000L |
|
Garbage Tank Capacity |
7000L |
|
Chassis Brand |
FAW J5K |
|
Horsepower |
170hp |
|
Sweeping Width |
3.2m |
|
High Pressure Cleaning Width |
3.5m |
|
High Pressure Cleaning Speed |
3-20Km/h |
|
Maximum Cleaning Capacity |
70000M2/h |
|
Clean efficiency |
≥ 95% |
|
Maximum Suction Size |
120mm |
Applications
Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.
1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.
2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.
3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.
4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.
5.It is with DongFeng chassis ,perfect performance!
Customer Services
|
Truck Specification |
||
|
Chassis model |
CLW5160TXSF5 |
|
|
Cab |
FAW J5K flat cab, with power steering. Electronicflame-out，withA/C |
|
|
Driving Type |
4*2 Right hand driving |
|
|
Max Speed (km/h) |
90 |
|
|
Overall dimension（mm） |
8700*2490*3100 |
|
|
GVW（ kg） |
12000 |
|
|
Mass in working order（ kg） |
16000 |
|
|
Wheelbase（mm） |
5340 |
|
|
Tire |
275/70R22.5 (6+1) |
|
|
Clutch |
Single-plate 380mm hydraulic-Air Assisted |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
6-speed FAW CA6TBX085 |
|
|
Bridge |
Front axle |
5500KG |
|
Rear axle |
9500KG |
|
|
Engine |
Model |
FAW CA6DF2D-18 Euro2 |
|
Fuel Type |
Diesel fuel |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Max output power/rotate speed (hp /rpm ) |
180/2300 |
|
|
Max torque/rotate speed(N.m/rpm) |
650/1350-1600 |
|
|
Braking System |
Service Brake |
Full air Dual Circuit with ABS |
|
Park/Emergency System |
Spring brakes/Rear Booster |
|
|
Electric system |
24v |
|
|
Upper-Body specification |
||
|
Vice generator |
||
|
Model |
B170 |
|
|
Rated power (kw) |
125KW |
|
|
High pressure cleaning |
||
|
Cleaning speed (km/h) |
3-20 |
|
|
Cleaning width(m) |
3.5 |
|
|
Cleaning pressure (mpa) |
10 |
|
|
Pump flow(L/MIN) |
154 |
|
|
Suction sweep operation |
||
|
Cleaning efficiency |
≥95% |
|
|
The maximum diameter of the suction body(mm) |
110 |
|
|
Suction sweep width(mm) |
2.3-3.5 |
|
|
Maximum cleaning power （m3/h） |
70000 |
|
|
Butterfly dish brush overhang dimension(mm) |
≥400 |
|
|
Working speed (km/h) |
3-20 |
|
|
Water tank body |
||
|
Rated capacity （m3） |
9 |
|
|
Garbage tank body |
|
|
|
Rated capacity（m3） |
7 |
|
|
Discharge door opening angle |
≥50º |
|
|
Hydraulic system |
||
|
Model |
Open, electrical control |
|
|
The main element |
Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve |
|
|
Pressure (mpa) |
16 |
|
|
Hydraulic oil tank capacity (l) |
60 |
|
|
Hydraulic oil temperature (ºC) |
60 |
|
|
Electrical system |
||
|
Model |
DC24V |
|
|
voltage |
24V |
|
|
Battery |
24V（2 set 12 v battery seriesconnection ） |
|
|
High pressure water system |
||
|
Type : |
Piston pump |
|
|
Model |
German PF36 |
|
|
Pressure (mpa) |
10 |
|
|
Ratating speed (r/min) |
1150 |
|
|
Valve type |
Pilot pressure valve |
|
|
Pressure for valve (mpa) |
7 |
|
|
Nozzle type |
High pressure cleaning |
|
|
Water filter |
Strainer |
|
|
Sprinkle system |
||
|
The main elements |
Electric diaphragm pump, water filters, nozzles, etc. |
|
|

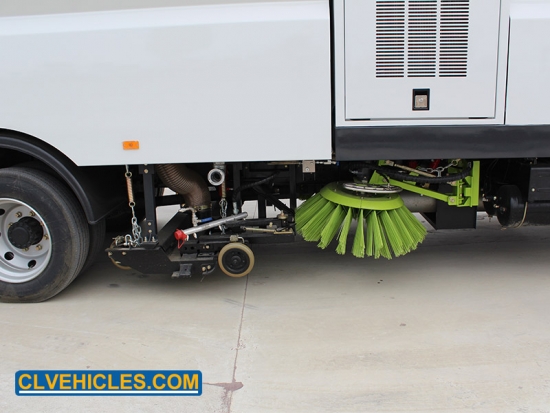

Sweeper disk device |
||
|
Model |
Center twosweeper disk,controlled bya hydraulic motor, front right can be independently controlled with avoidance and reset function |
|
|
Diameter (mm) |
850 |
|
|
Speed |
High :110 medium: 80 ,low :50 |
|
|
Angel |
Forward 4-6º roll 4-7º |
|
|
Sucker device |
||
|
Model |
Double suction port, hydraulically controlled, spring suspension. |
|
|
Diameter (mm) |
180 |
|
High Pressure Road Washing Truck equipped with 9000 liter water tank and German high-pressure water pump.Maximum pressure of washing up to 16MPa.
6x4 type washing vehicle is equipped with 12CBM water tank and 10CBM dustbin, large size will extend working time and improve work efficiency.
Street cleaning truck is suitable for the cleaning on highway,ring road,urban main road,airport,mechanized cleaning of the wharf.
High Pressure Road Washing Truck equipped with 9000 liter water tank and German high-pressure water pump.Maximum pressure of washing up to 16MPa.
The Road Sweeper Truck is using cleaning and high-pressure wash working together, Garbage collection, Sewage recovery to wash and sweep the road.
In the middle of two legislation sweep, in the middle of Ultra wide mouthpiece, inside have high pressure water spray bar and the high pressure spray bar in left and right side.
