FORD V348 High Quality Ward-type Ambulance

FORD ambulance is also called ambulance car, is one vehicle for treatment, monitoring and transport of critically ill patients. It is widely used to all levels medical institutions.


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5041XJHJ5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 38,500 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

FORD V348 ward-type 2.2T diesel ambulance car

FORD Ambulance Car is suitable for common patients’ transmission, patients who need to be rescued at once with perfect medical equipment on vehicle and infected patients with unknown virus, etc.

Quick Details



Size of ambulance
5780×2000×2690
A/C
Include
Chassis brand
FORD
Horsepower
136hp(Euro 5)
Outside
Provide free logo design,both sides doors  pasted with cross mark
Oxygen supply system

One 10-liter oxygen cylinders

One directly connected oxygen cylinder with oxygen pressure reducing valve

First aid
Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher

Applications


Ambulance designed and equipped for the treatment, monitoring and transportation of critically ill patients. Ambulance equipped with first aid resuscitation equipment and essential medicines that can rescue critically ill or injured persons on site or during transportation.

Transfer type: transporter ambulance is the most common ambulance that can be used to transport patients with relatively stable condition to hospital. Only some simple medical treatments such as infusion, oxygen inhalation, hemostasis, bandaging and so on are allowed in transit.

Guardianship type: guardianship ambulance refers to the possession of first aid recovery equipment and necessary drugs, capable of rescuing critically ill and injured people at the scene or in transit.

Ambulance


Competitive Advantage



1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you


2.  2.2T large diesel exhaust, high speed for transportation


3. Engine use German Continental company newest technology


4. Gearbox use German GFT 6-speed, equipped with Multicone synchronizer,the noise is greatly reduced


5. Install satellite positioning and vehicle video surveillance to fully meet the requirements of the new first aid regulations


6. Ambulance equipped with complete medical equipment with economic price


7. Chassis is American high quality brand FORD TRANSIT


Product Details


FORD Ambulance

Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Chassis Specification

Truck model

CLW5037XJHJ5



Cab

FORD  V348 CABIN

Driving Type

4*2 Left hand driving

Max Speed (km/h)

156

Overall dimension(mm)

5341×2032×2480

Ambulance Van dimension (mm)

2680×1730×1750

GVW(kg)

3300

Mass in working order(kg)

2530

Wheelbase(mm)

3300

Approach/Departure Angel

21/25

Tire

215/75R16LT

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

5-Speed gear box

Suspension

Front

Front McPherson independent suspension

Rear

Rear suspension leaf spring without independent suspension

Engine

Model

ECOBOOST4G2OB5L

Fuel Type

Petrol

Type

2.0T In-line four cylinder supercharged cold cylinder direct injection

Exhaust(ml)

1997

Max output power/ rotating speed(hp/rpm)

203/5500

Max Torque/rotating speed(nm/rpm)

300/3000

Braking system

Service Brake

Air brake and dish brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body specification

basic configuration

Medical warehouse air conditioning and heating

Circuits and medical appliances

Alarm and warning system

Long Row Standard Police Lights

100 watt siren and handheld control

power supply system

500 watt power inverter

220v power port

control system

Medical warehouse seesaw control switch

Oxygen supply system

one10-liter oxygen cylinders, special shock-absorbing clamps

One directly connected oxygen cylinder with oxygen pressure reducing valve



humidification bottles

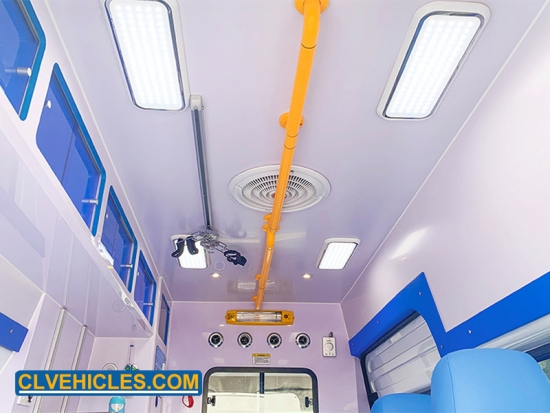

Medical warehouse interior

Original car interior,

partition wall,

push-pull observation window on the partition wall,

pill cabinet behind the partition wall,

fixed oxygen cylinder beside the pill cabinet,

long seat belt and seat belt pre-buried, medical floor leather

Seat system

2 seat long soft seat on the right,

one forward seat on the right

First aid

Automatic loading stretcher,

sliding infusion stand with 2 sets of infusion bottle hooks,

fire extinguisher

Exterior

Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors

basic configuration

Medical warehouse air conditioning and heating

Circuits and medical appliances

Alarm and warning system

Long Row Standard Police Lights

100 watt siren and handheld control

power supply system

500 watt power inverter

220v power port

control system

Medical warehouse seesaw control switch

Oxygen supply system

one10-liter oxygen cylinders, special shock-absorbing clamps

One directly connected oxygen cylinder with oxygen pressure reducing valve
