Mercedes-Benz ambulance equipped with warm air and air condition, the cab and the medical cabin walls separate installation, install 3 bar chair on the right side of the medical cabin.
Brand:
CLVEHICLES.COMModel No.:
CL5030XJHCD6Minimum Order Quantity:
1 UnitPrice:
USD 67,700 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcMercedes-Benz ward-type 2.0T automatic transmission petrol ambulance car
With the flashing of warning lights and the whistling of alarms, there is no doubt that an ambulance rushed to the scene of an emergency call. All the major traffic routes will magically let it go. Drivers can drive at the edge of the roadway, on the sidewalk, or even in the opposite direction - anywhere, as long as an ambulance can pass. Like firefighters who rush to the scene of a fire, ambulances need to fight every minute, because it may mean the difference between life and death.
Quick Details
Size of ambulance
5370×1928×2400
A/C
Include
Chassis brand
Mercedes-Benz
Horsepower
210hp(Euro 5)
Transmission
7-speed automatic transmission
Oxygen supply system
two 10-liter oxygen cylinders, special shock-absorbing clamps
Upholstery
ABS composite material, high-duty,anti-microbial
First aid
Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher
Applications
Ambulance designed and
equipped for the treatment, monitoring and transportation of critically ill patients.
Ambulance equipped with first aid resuscitation equipment and essential
medicines that can rescue critically ill or injured persons on site or during
transportation.
Transfer
type: transporter ambulance is the most common ambulance that can be used to
transport patients with relatively stable condition to hospital. Only some
simple medical treatments such as infusion, oxygen inhalation, hemostasis,
bandaging and so on are allowed in transit.
Guardianship type: guardianship
ambulance refers to the possession of first aid recovery equipment and
necessary drugs, capable of rescuing critically ill and injured people at the
scene or in transit.
Competitive Advantage
1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you
2. 2.0T 210hp petrol engine with 185km/h high speed
3. With ECO automatic start-stop control M274 engine, excellent shock absorber ability
4. With 7G-TRONIC PLUS automatic transmission, Cost-efficient, petrol exhaust only 8.6L/100km
5. Install satellite positioning and vehicle video surveillance to fully meet the requirements of the new first aid regulations
6. Ambulance equipped with complete medical equipment with economic price
7. Chassis is well-known Mercedes-Benz
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
||||
|
Truck model |
CLW5030XJHCD6 |
|||
|
Cab |
Mercedes-Benz CABIN |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
185 |
|||
|
Overall dimension（mm） |
5370×1928×2400 |
|||
|
Ambulance Van dimension (mm) |
2500×1600×1670 |
|||
|
GVW（kg） |
3100 |
|||
|
Mass in working order（kg） |
2600 |
|||
|
Wheelbase（mm） |
3430 |
|||
|
Approach/Departure Angel |
16.5/12.5 |
|||
|
Tire |
235/55R17 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Steering with electric power assistance |
|||
|
Gear box |
7-Speed Automatic gear box |
|||
|
Suspension |
Front |
Front Mcpherson independent suspension |
||
|
Rear Rear |
Rear half drag arm suspension |
|||
|
Engine |
Model |
Benz M274 |
||
|
Fuel Type |
Petrol |
|||
|
Type |
2.0T In-line four cylinder supercharged cold cylinder direct injection |
|||
|
Exhaust（ml） |
1991 |
|||
|
Max output power/ rotating speed(hp/rpm) |
155/5500 |
|||
|
Max Torque/rotating speed(nm/rpm) |
300/1200-4000 |
|||
|
Braking system |
Service Brake |
Air brake and dish brake |
||
|
Park Brake |
Spring energy |
|||
|
Electric system |
24v |
|||
|
Upper-Body specification |
||||
|
basic configuration |
Medical warehouse air conditioning and heating |
|||
|
Circuits and medical appliances |
Alarm and warning system |
Long Row Standard Police Lights Or Various popular special-shaped police lights |
||
|
100 watt siren and handheld control |
||||
|
Power supply system |
Original vehicle power supply system |
|||
|
External power supply system |
||||
|
AC circuit protection system |
||||
|
Available for usb / 12v / 220v uninterruptible power supply |
||||
|
1000w Sine wave inverter system |
||||
|
control system |
Micro-circuit centralized control system Cockpit emergency start system Integrated switch control LCD display equipment |
|||
|
Oxygen supply system |
two 10-liter oxygen cylinders, special shock-absorbing clamps |
|||
|
oxygen pressure reducing valves, |
||||
|
humidification bottles |
||||
|
hidden oxygen pipes, international oxygen ports |
||||
|
Ventilation system |
Two-way ventilation fan |
|||
|
Disinfection system |
Mosaic UV anti-virus lamp |
|||
|
Light system |
Medical special led light Rear spotlight Car left and right side lights |
|||
|
Intercom system |
Front and rear window intercom, one-way control |
|||
|

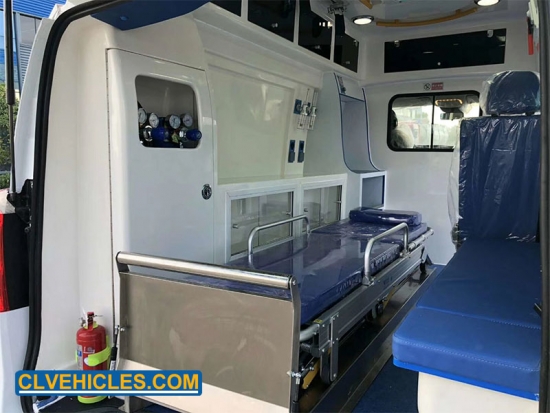

Medical warehouse interior |
The interior adopts abs conforming material or overall mold forming process. The surface is smooth, antibacterial, high hardness, and the floor is easy to clean. |
|||
|
partition wall, |
||||
|
push-pull observation window on the partition wall, |
||||
|
pill cabinet behind the partition wall, |
||||
|
fixed oxygen cylinder beside the pill cabinet, |
||||
|
long seat belt and seat belt pre-buried, |
||||
|
Seat system |
3 seat long soft seat on the right |
|||
|
Folding reverse independent seat with three-point safety belt |
||||
|
First aid |
Automatic loading stretcher, |
|||
|
sliding infusion stand with 2 sets of infusion bottle hooks, |
||||
|
fire extinguisher |
||||
|
Exterior |
Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors |
|||
Famous brand with easy after-sales maintenance and economic price , save cost for big order.
The car floor using acid and alkali resistance, fire prevention, anti-slip, anti-static floor medical cabin around four convex edge, prevent the accumulation and antirust, easy clean with water.
The cockpit and medical module adopt the independent cooling and heating air conditioning system, the medical cabin has the heating fan, and can be controlled independently.
FORD negative pressure ambulance is equipped negative pressure device can form negative pressure in the car to prevent from spreading in the car and provide medical care in the car.
FORD ambulance is also called ambulance car, is one vehicle for treatment, monitoring and transport of critically ill patients. It is widely used to all levels medical institutions.
FOTON G9 ambulance has good driving quality and plenty of power. The space designed reasonable fully equipped with medical equipment.
