This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
The front of this open-box can be lifted up so that the materials are discharged on the ground behind the truck.
Brand:
CLVEHICLES.COMModel No.:
CL3053JM326Minimum Order Quantity:
1 UnitPrice:
USD 15000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

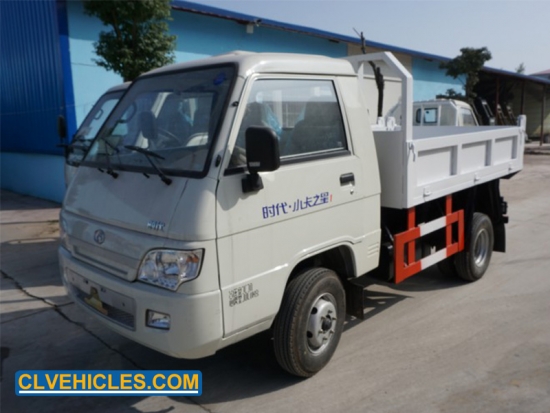

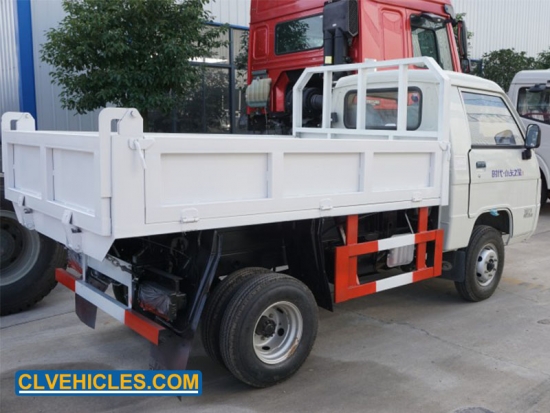

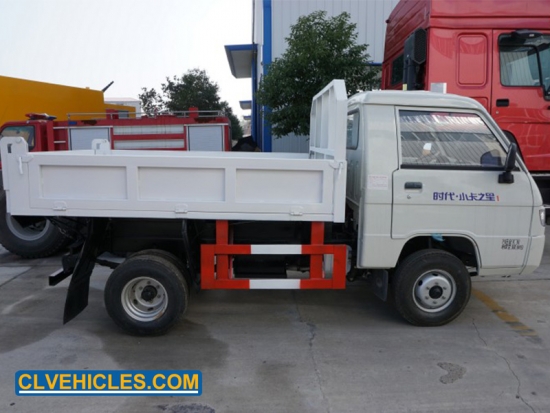

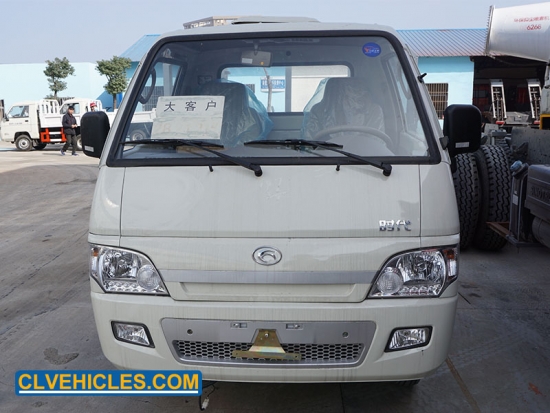

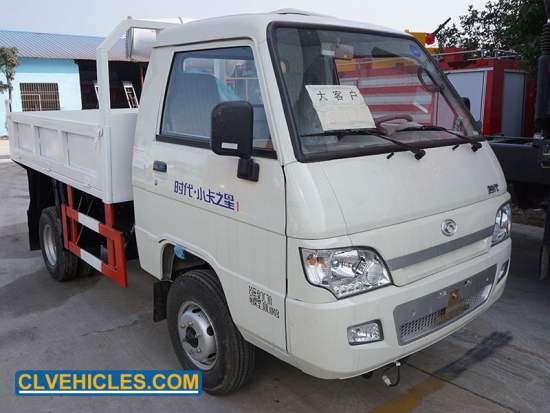

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcFOTON Forland 3ton small capacity tipper truck
We are a leading manufacturer of dump truck , also named tipper truck and dumper . we can provide customers all kinds of dump truck with competitive price and high quality, We can also design for different kinds of dump truck,Following is the dump truck detail feature , any question, please feel free to contact me .
Quick Details
|
Chassis Brand |
FOTON |
|
Payload Capacity |
3ton-5ton |
|
Material of Tank |
carbon steel |
|
Horsepower |
39hp
|
| Application |
Construction project, heavy duty transportation |
Applications
A transfer dump is a standard dump truck pulling a separate trailer with a movable cargo container, which can also be loaded with construction aggregate — gravel, sand, asphalt, klinkers, snow, wood chips, triple mix, etc.
|
|
|
|
Unique metal support ring welded structure allowing good cylinder stability and high cylinder expanding resistance. |
High strengthen steel compartment. |
|
|
|
| New & modern cab with big space and more comfort, all electrical equipment are controlled by ECO, can be left or right side. |
Driving axle has big loading capacity, each axle is good stability, high safety factor and ability to work under high level pressure |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
|
Vehicle Description |
|||||
|
Vehicle model |
Tipper truck |
Overall dimensions (mm) |
4316×1508×1920 |
||
|
GVW (kg) |
Appro×2000 |
Fact loading capacity(kg) |
1500 |
||
|
Mass in working order (kg) |
Appro×1150 |
Max. Speed (km/h) |
90 |
||
|
Chassis Description |
|||||
|
Chassis Model |
BJ1020 |
||||
|
Cab |
Single row non-longhead cab can turn over |
||||
|
Color |
Optional |
||||
|
Allowable person in cab |
2 |
||||
|
Wheel base (mm) |
2456 |
||||
|
Front/Rear track base (mm) |
1260/1260 |
||||
|
Front/Rear overhang (mm) |
795/1065 |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
760 |
|||
|
Rear axle |
1140 |
||||
|
Traction system |
4×2 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Oil brake |
||||
|
Electric system |
24V |
||||
|
Transmission |
5-speed |
||||
|
Spring plate |
5/4 |
||||
|
Tire specification |
175/70R14 |
||||
|
Tire quantity |
4+1 |
||||
|
Engine Description |
|||||
|
Engine model |
LAIDONG480 |
||||
|
Emission standard |
Euro 1 |
||||
|
Exhaust/output |
1617ml/28kw |
||||
|
Horse power |
39hp |
||||
|
Up-parts Description |
|||||
|
Max capacity(kg) |
1500 |
||||
|
Dump box dimension (L*W*H)(mm) |
2500*1410*320 |
||||
|
Dump box material |
Carbon Steel |
||||
|
Dump box thickness (mm) bottom/side |
4/3 |
||||
|
Hydraulic cylinder |
Mid-Double Cylinder |
||||
|
Dump box color |
Optional |
||||
|
Working Condition: |
1、Altitude: 0-4500m 2、Temperature: -350C~+450C 3、Relative humidity: 80% 4、Wind force: ≤8 degree |
||||
These trucks can be used in construction of large industrial structures and hydraulic facilities, in construction of highway systems as well as in technological departments of the enterprises of processing industry.
Greatly save time and labor for unloading. Shorten transportation cycle and improve production efficiency.
The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency,the whole truck structure has characteristics lower center of gravity,with higher security when lifting the cargo body.
Good cargo body structure, high rigidity, high loading capacity. Good sealing structure has the better sealing effect. Lower fuel consumption.
All parts are well-maintenance, original. can be inspected. Low working hours, original paint, cheap and high quality. Spare parts available, best working machine for you
Shacman designed mature dumper truck chassis, rebuilding dump special device, easy loading and fast unloading.High efficiency, low cost, new technique, low fuel consumption, enduring service life.
