This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Dump truck is widely used in transporting the construction material, such as sand, stone, gravel, coal, earthwork etc.
Brand:
CLVEHICLES.COMModel No.:
CL1040JM471Minimum Order Quantity:
1 UnitPrice:
USD 16900Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

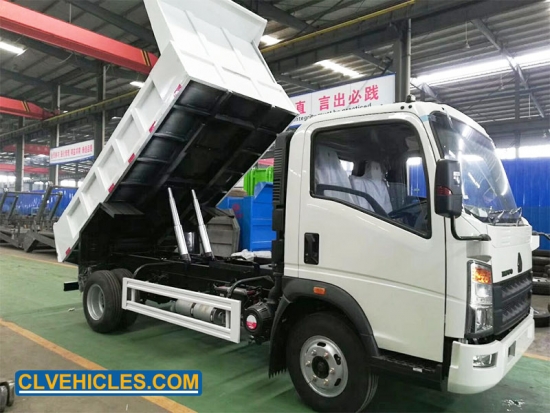

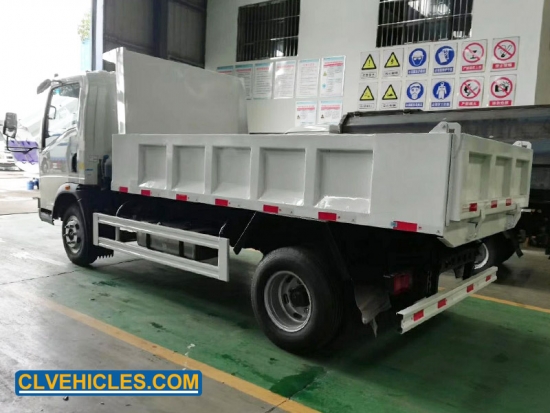

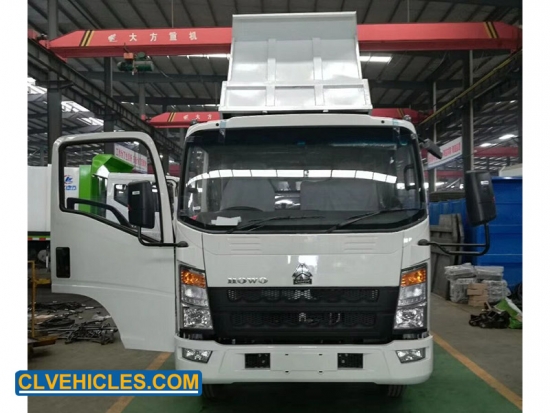

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 3ton Garbage Dump Tipper truck
China HOWO 3ton Garbage Dump Tipper trucks are in great demand from customers, the proven product, which features reliable structure, great loading capacity, excellent power, reliable performance. This dump truck model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation. If you plan to purchasing, I could provide you with the best price and comprehensive service.
Quick Details
|
Chassis Brand |
HOWO |
|
Payload Capacity |
3ton-5ton |
|
Material of Tank |
carbon steel |
|
Horsepower |
102hp
|
| Application |
Household waste project, light duty transportation |
Applications
A transfer dump is a standard dump truck pulling a separate trailer with a movable cargo container, which can also be loaded with construction aggregate — gravel, sand, asphalt, klinkers, snow, wood chips, triple mix, etc.
|
|
|
|
Unique metal support ring welded structure allowing good cylinder stability and high cylinder expanding resistance. |
High strengthen steel compartment. |
|
|
|
| New & modern cab with big space and more comfort, all electrical equipment are controlled by ECO, can be left or right side. |
Driving axle has big loading capacity, each axle is good stability, high safety factor and ability to work under high level pressure |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Vehicle Description |
|||||
|
Vehicle model |
Dump truck |
Overall dimensions (mm) |
5500×2020×2450 |
||
|
GVW (kg) |
≤5500 |
Fact loading capacity(t) |
3 |
||
|
Curb weight (kg) |
Appro×2720 |
Max. Speed (km/h) |
90 |
||
|
Chassis Description |
|||||
|
Chassis Model |
HOWO |
||||
|
Cab |
Forward control cab with A.C |
||||
|
Color |
Optional |
||||
|
Allowable person in cab |
2 |
||||
|
Wheel base (mm) |
2800 |
||||
|
Front/Rear track base (mm) |
1940/1845 |
||||
|
Front/Rear overhang (mm) |
1315/1890 |
||||
|
Number of axles |
2 |
||||
|
Axle |
Front axle |
2000 kg |
|||
|
Rear axle |
3500 kg |
||||
|
Traction system |
4*2 |
||||
|
Operation control system |
Power steering |
||||
|
Braking system |
Full air |
||||
|
Electric system (V) |
12 |
||||
|
Gear box |
WLY6T100 |
||||
|
Number of gears |
6 speeds + 1 reverse |
||||
|
Tire specification |
7.00R16 |
||||
|
Tire quantity |
6+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
ISUZU ENGINE |
||||
|
Engine model |
JE493ZLQ3A |
||||
|
Engine type |
Water cooling, four stroke, direct injection, supercharged and mid-cooling |
||||
|
Emission standard |
Euro 3 |
||||
|
Exhaust (ml) |
2771 |
||||
|
Max. output power (kw) |
75 |
||||
|
Max. horse power (hp) |
102 |
||||
|
Rated speed (rpm) |
3600 |
||||
|
Max. torque/ speed (N.m / rpm) |
260 / 2000 |
||||
|
Up-parts Description |
|||||
|
Dump box dimension (mm) |
3000×1800×600mm |
||||
|
Dump box type |
Rectangle type with reinforcing rib |
||||
|
Material |
Carbon steel |
||||
|
Thickness of side/bottom plate (mm) |
3/ 4 |
||||
|
Door open way |
Rear single open |
||||
|
Hydraulic ram for dump |
Middle set |
||||
|
Working Condition: |
1、Altitude: 0-4500m 2、Temperature: -350C~+450C 3、Relative humidity: 80% 4、Wind force: ≤8 degree |
||||
These trucks can be used in construction of large industrial structures and hydraulic facilities, in construction of highway systems as well as in technological departments of the enterprises of processing industry.
Greatly save time and labor for unloading. Shorten transportation cycle and improve production efficiency.
The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency,the whole truck structure has characteristics lower center of gravity,with higher security when lifting the cargo body.
Good cargo body structure, high rigidity, high loading capacity. Good sealing structure has the better sealing effect. Lower fuel consumption.
All parts are well-maintenance, original. can be inspected. Low working hours, original paint, cheap and high quality. Spare parts available, best working machine for you
Shacman designed mature dumper truck chassis, rebuilding dump special device, easy loading and fast unloading.High efficiency, low cost, new technique, low fuel consumption, enduring service life.
