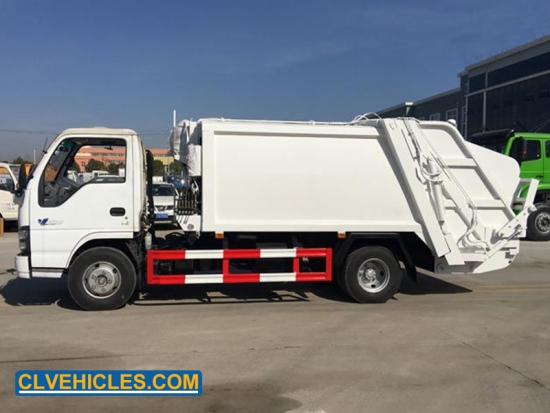

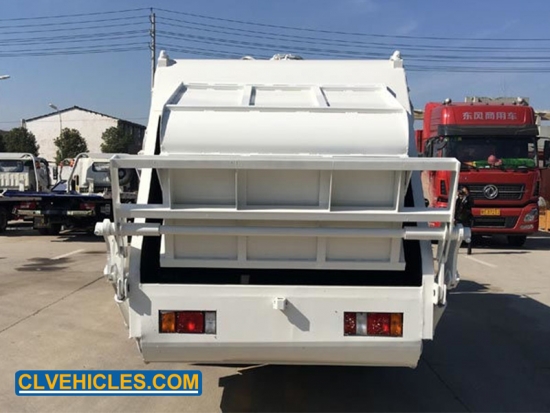

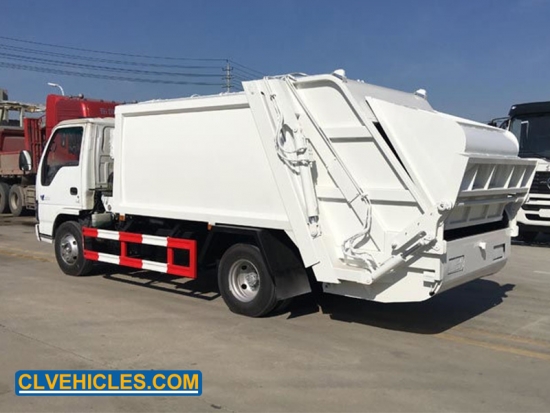

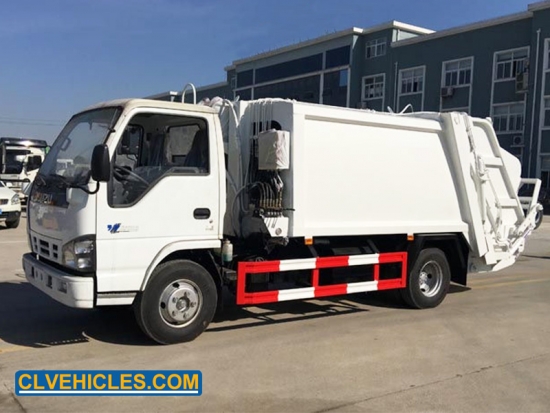

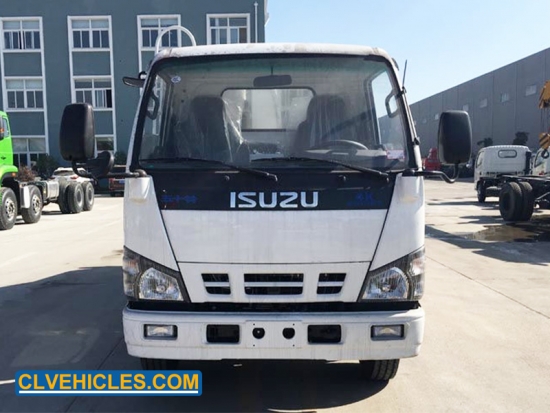

ISUZU 6 wheels 6CBM rear bin lifter garbage compactor truck
Compression garbage collection truck adopts domestic advanced design concept, with the characteristics of uniform force, stable structure and reliable performance.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Compression standard: high-quality carbon steel box of WISCO, strengthen the base plate with support, two-way compressed, easy to clean sewage box open mode, filler for overall concentric shaft structure.
Brand:
CLVEHICLES.COMModel No.:
CLW5070YSLJMinimum Order Quantity:
1 UnitPrice:
USD25600Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcISUZU 100P hydraulic system compression garbage truck
Refuse compactor garbage truck is composed of the sealed compartment, hydraulic system, the operating system. Type vehicle is fully sealed, self-compressed, self-dumping, all the compression process of the sewage effluent into the car, the more thorough solution to the waste transport in the process of secondary pollution problems, to avoid inconvenience to the people, the key parts imported components, with pressure, good sealing, easy operation, and safety. After the hanging buckets optional flip flip bucket agencies or institutions refuse.
Quick Details
Chassis Brand | ISUZU |
Volume of Garbage Tank | 6000L |
Filling Cycle Time | 50-60s/once |
Hydraulic Pressure |
16Mpa |
Applications
The garbage compactor truck (garbage compacting truck) is used to collect, transport and clearing up wastes, advoiding the secondary pollution. Features of the garbage dump truck, one kind of new environmental truck, are easy, effective, and enviromental.
Garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
Truck Specification |
||||
Truck model |
CLW5070YSLJ |
|||
Cab |
Single row cab |
|||
Driving Type |
4*2 Left hand driving |
|||
Max Speed (km/h) |
115 |
|||
Overall dimension(mm) |
6865×1870×2200 |
|||
GVW( kg) |
8200 |
|||
Mass in working order( kg) |
2460 |
|||
Wheelbase(mm) |
3360 |
|||
F/R track base(mm) |
1569/1530 |
|||
F/R overhang(mm) |
1068/1997 |
|||
Approach/Departure Angel |
22/25 |
|||
Tire |
700R15 |
|||
Clutch |
Single-plate dry diaphragm spring clutch |
|||
Steering |
Hydraulic steering with power assistance |
|||
Gear box |
5-speed |
|||
Bridge |
Front axle |
2.5T |
||
Rear axle |
4.8T |
|||
Enging |
Model |
4JB1CN |
||
Fuel Type |
Diesel fuel |
|||
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|||
Exhaust(ml) |
2771 |
|||
Max output power/rotate speed (hp /rpm ) |
98/3400 |
|||
Braking system |
Service Brake |
Compressed air brake |
||
Park Brake |
Spring energy |
|||
Auxiliary brake |
engine exhaust brake |
|||
Eletric system |
24v |
|||
Upper-Body specification |
||||
Material of tank |
material : Q235,Thickness :4(mm) side /4(mm) rear |
|||
dirty tank volume |
6 m³ |
|||
filler volume |
500L |
|||
filing time(s) |
8~10s |
|||
filling cycle time(s) |
50~60s/once |
|||
Discharge type |
Dumping |
|||
Time for dumping |
30-40S |
|||
Hydraulic pressure |
16mpa |
|||
Controlling way |
Manualy and electrical control |
|||
Hydraulic pump |
532 model |
1 set | ||
Multi-way valve |
DL-15B-6 |
1 set | ||
Flap cylinder |
80/45-410*180 |
2 set | ||
Lifting cylinder |
80/45-900*580 |
2 set | ||
Scraper cylinder |
80/45-700*415 |
2 set | ||
Skateboard cylinder |
90/50-980*670 |
2 set | ||
Push plate cylinder |
YSTB-1180*2420 |
1 set | ||
The electromagnetic valve |
UZCT-115/24V |
2 set |
