ISUZU 700P 8CBM Light duty Waste compressor lorry

Compactor garbage truck is the new type of sanitation vehicle that for collects and transfers the garbage, avoid secondary pollution.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5090YSLJ
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD36700
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

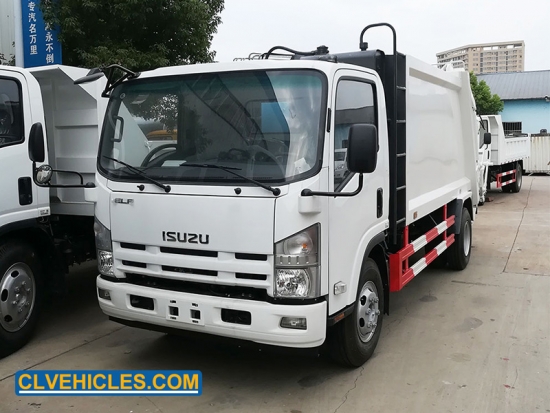

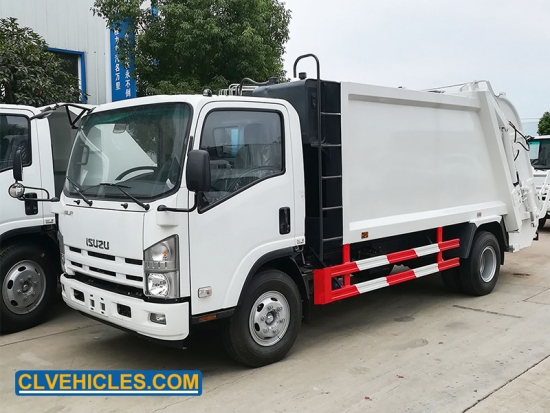

ISUZU 700P 8CBM Light duty Waste compressor lorry


The compactor garbage truck adopts PLC machine Electra-hydraulic integration, control system. Through the car filler device and other special equipment to achieve garbage into, strong filling. Put the garbage into the compartment and then compaction and propulsion it, sewage into the sewage tank, solving the secondary pollution by garbage transport process.

Quick Details



Chassis Brand ISUZU
Volume of Garbage Tank 7000L
Filling Cycle Time 50-60s/once

Hydraulic Pressure

16Mpa


Applications


The garbage compactor truck (garbage compacting truck) is used to collect, transport and clearing up wastes, advoiding the secondary pollution. Features of the garbage dump truck, one kind  of new environmental truck, are easy, effective, and enviromental.

Garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized.




Competitive Advantages



Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Cab

Single row cab

Driving Type

4*2 Left hand driving

Max Speed (km/h)

115

Overall dimension(mm)

7865×1870×2200

GVW( kg)

8200

Mass in working order( kg)

2460

Wheelbase(mm)

3815

F/R track base(mm)

1569/1530

F/R overhang(mm)

1068/1997

Approach/Departure Angel

22/25

Tire

8.25-20

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

6-speed

Bridge

Front axle

4T

Rear axle

7T

Enging

Model

4HK1-TCG40

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

5190

Max output power/rotate speed (hp /rpm )

190/2600

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Upper-Body  specification

Material of tank

material : Q235,Thickness :4(mm) side /4(mm) rear

dirty tank volume

7m³

filler volume

500L

filing time(s)

8~10s

filling cycle time(s)

50~60s/once

Discharge type

Dumping

Time for dumping

30-40S

Hydraulic pressure

16mpa

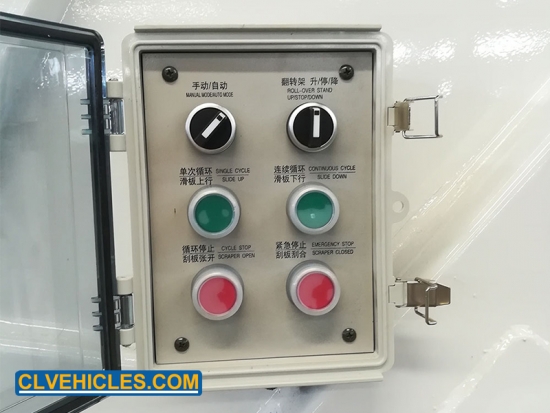

Controlling way

Manualy and electrical control

Hydraulic pump

532 model

 1 set

Multi-way valve

DL-15B-6

 1 set

Flap cylinder

80/45-410*180

 2 set

Lifting cylinder

80/45-900*580

 2 set

Scraper cylinder

80/45-700*415

 2 set

Skateboard cylinder

90/50-980*670

 2 set

Push plate cylinder

YSTB-1180*2420

 1 set

The electromagnetic valve

UZCT-115/24V

 2 set
