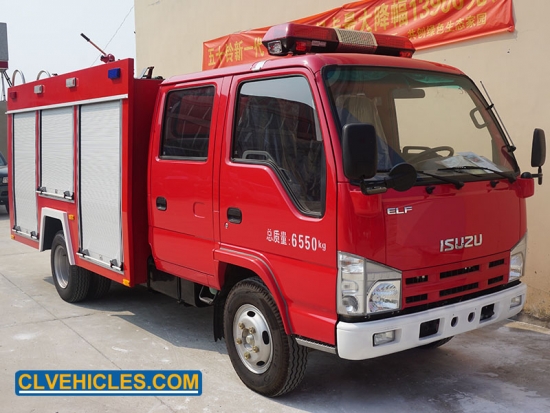

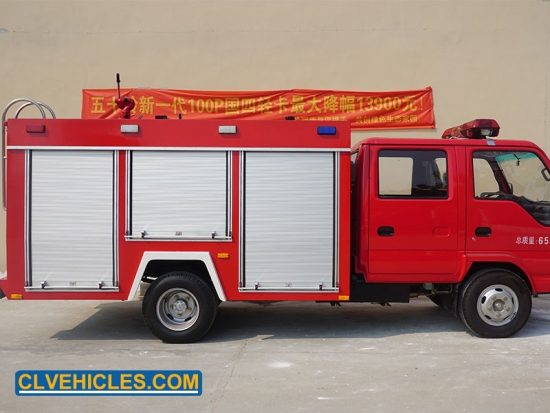

ISUZU 3000 liter Water Tank Fire Engine

The truck is composed by the tank, pump room, equipment boxes, power output and transmission system, piping systems, electrical systems and other components, widely used in urban public security fire brigades, petrochemical, industrial and mining enterprises, forests, ports and other departments.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5080GXFQ2
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD33000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

ISUZU 3000 liter Water Tank Fire Engine


The fire truck is usually kept in fire bureau, and is driven to the accident location by the fire fighter. Most fire trucks are painted in red, but still some rare places that is painted in yellow. The siren is usually taken as the standard device for the truck.


Quick Details


Product name

Fire fighting truck

Water Tank Capacity

2500L

Foam Tank Capacity

1500L

Chassis Brand

ISUZU

Horsepower

120hp

Fire Pump

CB10/30

Fire Monitor

PL24


Applications


Fire truck is mainly used for fire response tasks, most national fire departments, also use it for other emergency rescue purposes.Fire engines can transport firefighters to disaster sites and provide them with a variety of tools to carry out relief missions.



Competitive Advantages

1.ISUZU chassis and engine , perfect and reliable performance.

2.Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet.

3.Independent fire pump room , ensure  the smooth progress of the work.

4.Intelligent control integration system ,mange the working state of appearance directly

5.It is with ISUZU chassis ,perfect performance!



Product Details





Customer Services





Product Parameters


Chassis Specification

Truck model

CLW5070GXFQ2

Cab

ISUZU 600P CABIN

Driving Type

4*2 Left hand driving

Max Speed (km/h)

95

Overall dimension(mm)

6360*2000*2740

GVW( kg)

6530

Mass in working order( kg)

4175

Wheelbase(mm)

3360

F/R track base(mm)

1504/1425

F/R overhang(mm)

1015/1890

Approach/Departure Angel

24/14

Tire

6.50-16 (6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

MSB 5-speed

Bridge

Front axle

2.5T

Rear axle

4.8T

Enging

Model

4KH1-TCG4O

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

2999

Max output power/rotate speed (hp /rpm )

120/2900

Max torque/rotate speed(N.m/rpm)

290/1500-2900

Braking  system

Service Brake

Oil brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body  specification

Tank

Structure

Welding, there is clapboard inner.

Material

Water Tank

High quality carbon steel plate, anti-rust treatment

Capacity



Total

3000L


Water Tank 2500L

Foam Tank

1500L

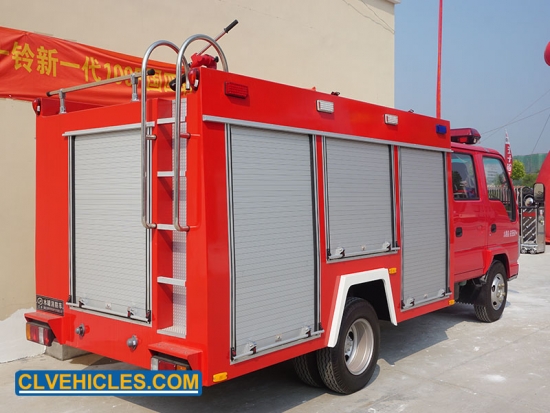

Equipment box

Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box.
Structure: whole frame is welded to ensure intension and rigidity.
Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed.

pump room

on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.

Special

PartsParameter

Fire Pump

Type

Normal pressure fire pump

Model

CB10/30

Flux

30L/S

Pressure

1.0Mpa

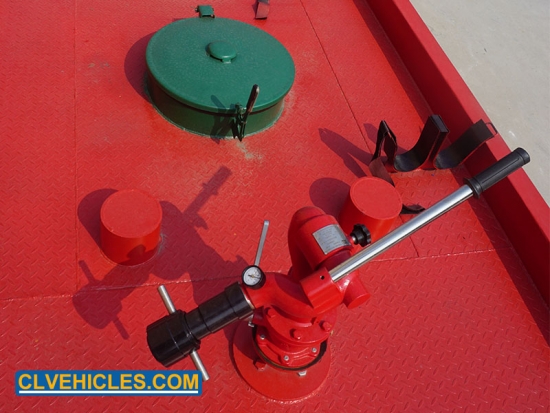

Fire Monitor

Type

For waterand foam

Model

PL24

Flux

24L/S

Pressure

1.0Mpa

Additional drive  system

Use sandwich PTO, splashing-type lubricate, can put out fire when driving.

Additional operation system

PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on

Additional cooling system

The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating

Additional Electrical system system

warning light ,warning sirens

Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge

Fire lights, pump room lights, equipment box lights

Additional instrumentation

pressure gauge

speedometer

level gauge

vacuum gauge

Carriage

Carriage is made of high quality steel and Aluminum embossed sheet

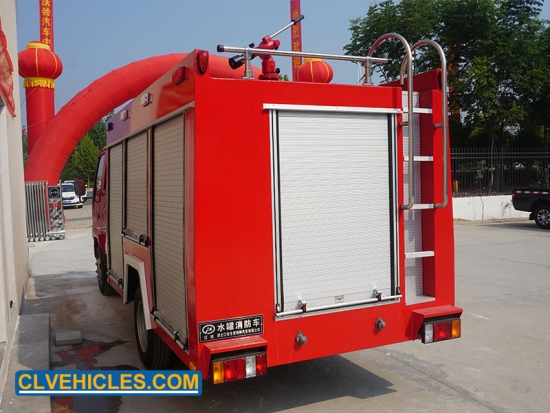

Rolling shutter door

Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.

color

The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck.
