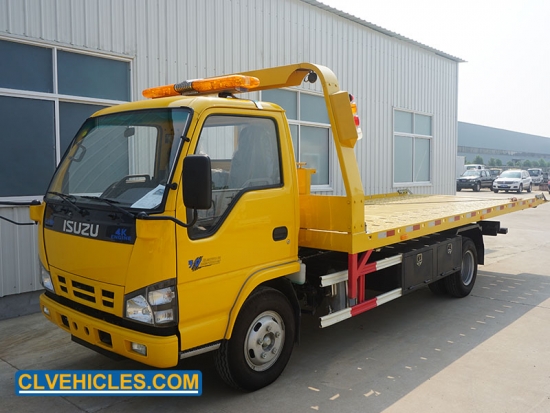

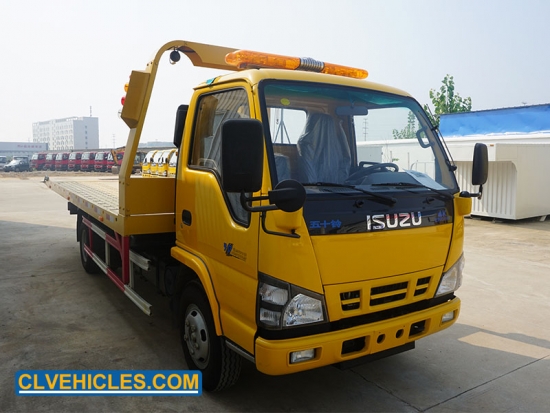

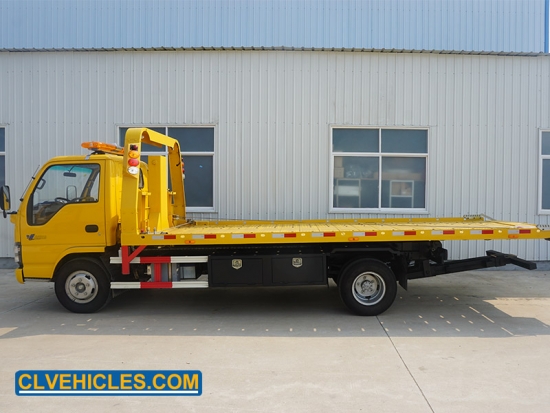

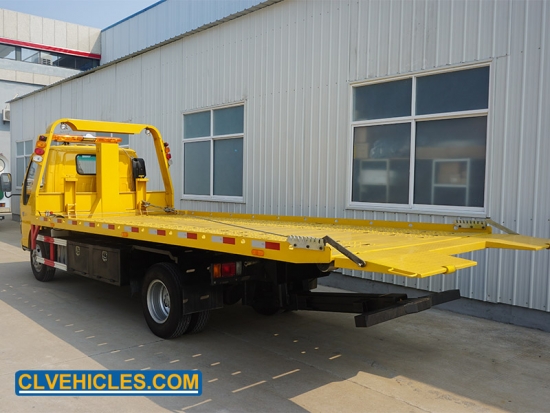

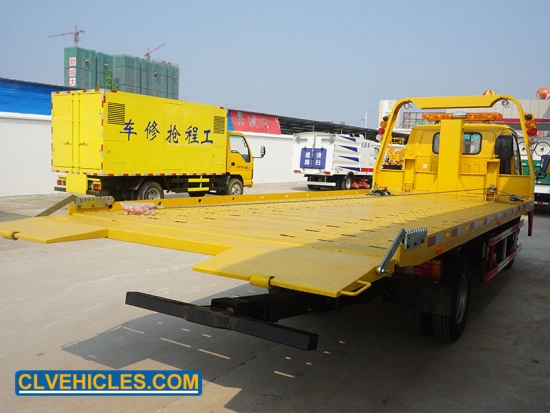

ISUZU 600P 4 ton deck wrecker towing truck

Wrecker Tow Truck is equipped with emergency operation equipment .When the car is breakdown on the road, an accident is happend, especially on high grade highway, wrecker's mission is to towing the trouble truck or car away from the site of accident, to ensure the road unimpeded.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5082TQZD5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD25200
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

ISUZU 600P 4 ton deck wrecker towing truck


The tow truck wrecker is also called road wrecker truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck,  etc.
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.


Quick Details



Deck Loading 4000kg

Deck Length

5600mm

Chassis Brand

ISUZU 600P

Max Lifting Capacity of Under Lift

3000kg

Max Towing capacity of under Lift

5000kg

Max Pulling Force of Winch

4000kg


Applications


Wrecker tow truck is used to move disabled, improperly parked, impounded, or otherwise indisposed motor vehicles. This may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather, or towing or transporting one via flatbed to a repair shop or other location.




Competitive Advantages



A pair of training wheels makes towing working easily when wheels are damaged

Extra Strength Winch with 21 meters steel cable

Manual joystick with instructions on side body of the truck makes control work easily

The tire belt keep car stability on wrecker truck


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Truck model

CL5082TQD5

Cab

ISUZU600P single row cabin

Driving Type

4*2

Max Speed (km/h)

103

Overall dimension(mm)

7305*2380*2250

Mass in working order( kg)

4800

GVW( kg)

7300

Wheelbase(mm)

3815

F/R track base(mm)

1504/1522

F/R overhang(mm)

1015/2475

Approach/Departure Angel

16/12

Tire

7.00-16

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

MSB 5-speed gear box

Bridge

Front axle

2.5T

Rear axle

4.8T

Enging

Model

4KH1-TCG40

Horse power

120HP

Displacement

2999L

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body  specification

Hydraulic Under Lift at Rear

Max Lifting weight(kg)

3000

Max. Rated towing weight(kg)

5000

Max effective length of boom   (mm)

1700

Extension traveling of boom     (mm)

1340

Hydraulic winches & steel cables

Type:

Planetary type

Quantity (set)

1

Max. Pulling power of winch (kgs)

4000

Length of steel cable(m)

21

Speed of winch (m/min)

3.23

Diameter of winch(cm)

11

Back load platform



External dimension of platform (length×width)(mm)

5600*2350

Max. Loading of platform(kgs)

4000

Min. Elevation of full extending platform °

10

Extension traveling of platform

3000

Power take off

Type

PTO drive from transmission

Wrecker Operation

Description

Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.

Hydraulic System

Description

uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.

Safety Device

Auto brake  for winch

Automatic safe brake in case winch / Engine fail.

Hydraulic valves

Necessary hydraulic pressure relief & lock valve/ valves
