Isuzu 600P Vacuum Dust Truck Mounted Sweeping Machines

Road Sweeper Trucks are environmental protection trucks, who adopt omni-directional water spraying. The structure are four brush discs in the middle and sucking disc in rear position to make there are no no flying dust and enough suction supplied.
  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5080TSL1
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD39500
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

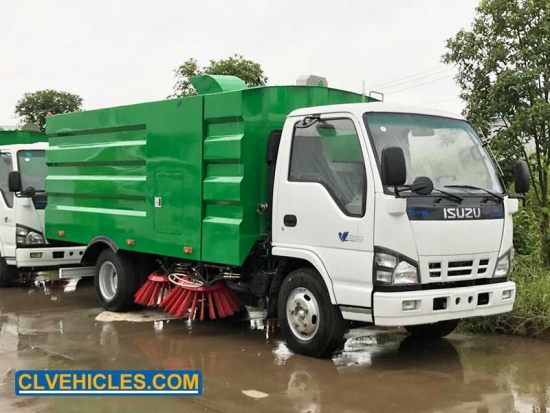

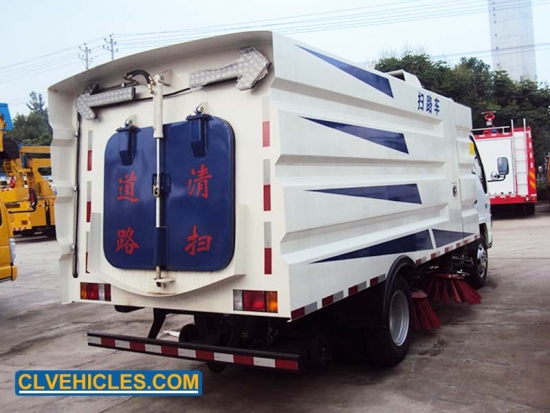

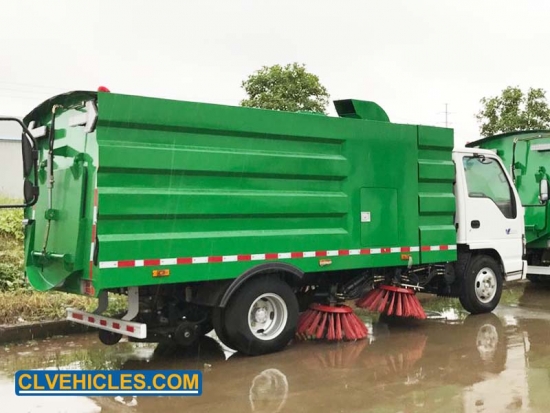

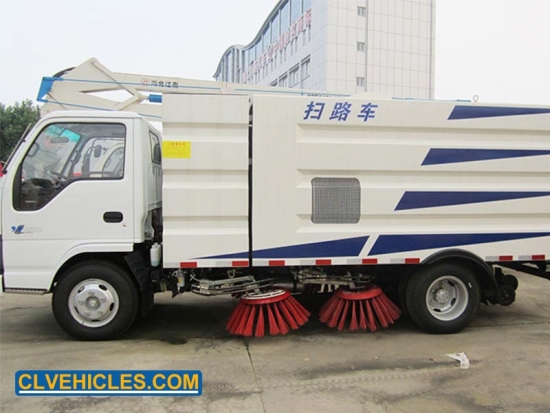

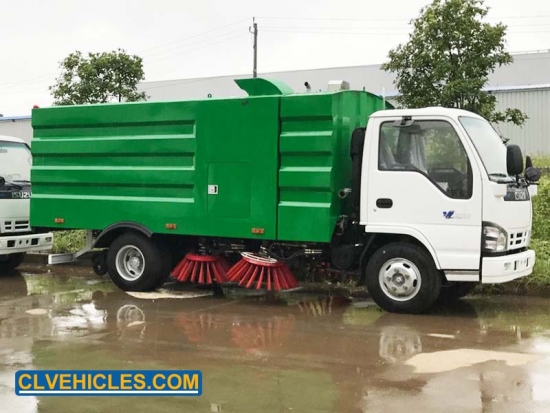

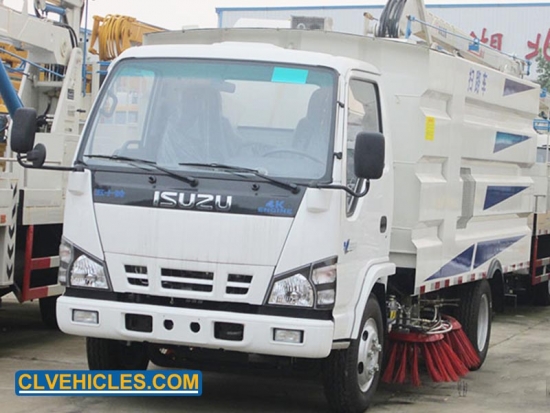

Isuzu 600P Vacuum Dust Truck Mounted Sweeping Machines


Street cleaning truck is specially used in road cleaning and collecting rubbish and transporting them to garbage collection spot.You can see this vehicle on the main street,central park,airport and some other places.As one of the city sanitary equipment,it functions efficiently and makes our city and environment clean and pretty good.


Quick Details


Product name

Road sweeper truck

Water Tank Capacity

2000L

Garbage Tank Capacity

7000L

Chassis Brand

ISUZU 600P

Horsepower

120hp

Sweeping Width

3.2m

High Pressure Cleaning Width

3.5m

High Pressure Cleaning Speed

3-20Km/h

Maximum Cleaning Capacity

60000M2/h

Clean efficiency

≥ 95%

Maximum Suction Size

120mm


Applications


Washing and cleaning truck is widely used in brushing ,suction and transportation of dusts ,muds ,soil ,sand , stone chips ,gravels and other small particles on the ground of city roads and areas.

High Pressure Road Washing Truck


Competitive Advantages

1.Our road sweeper truck has free maintenance fan which can reduce the maintenance cost and get long service life.

2.Water tank and garbage tank is made of stainless steel for better anti-corrosion performance and easy maintenance.

3.It is also with wear-resisting sweeper brush and oil –less rotating mechanism.

4.The parts is from famous brand such as Italian motor ,Schneider witch control ,Taiwanese multifold solenoid valve.

5.It is with ISUZU chassis ,perfect performance!


High Pressure Road Washing Truck


Product Details



Other Types of Road Washing Truck:




                      Water Tank: 12000 L                                                         Water Tank: 9000 L

                      Garbage Tank: 10000 L                                                      Garbage Tank: 7000 L


Customer Services




Product Parameters

Vehicle performance and parameters

Item

Parameter

Unit

Working Performance

Max sweep width

3.5

m

Low pressure flushing width

24

m

Sweep speed

3—20

km/h

Max sweep capacity

60000

m2/h

Max inhalation of granularity

≥110

mm

Angle of unloading

≥48

Volume of water tank

2000

L

Volume of garbage tank

7000

L

Driving Performance

Max speed

98

km/h

Max gradeability

30

%

Braking distance

≤10

m

Min turning diameter

≤13.6

m

Fuel Performance

Fuel consumption(Driving)

≤12

L/100km

Fuel consumption(Sweep working at 8km/h)

6.5

L/h

2.7

L/10000m2

Quality Parameters

Curb weight

4700

kg

Rated capacity

4255

kg

GVW

7300

kg

Dimension Parameter

Overall dimensions

6335*2050*2680

mm

Wheelbase

3815

mm

Track front

1504

mm

Track rear

1425

mm

Front suspension

1015

mm

Rear suspension

1375

mm

Approach angle

24

Departure angle

15


Main parts and parameters

Chassis

Chassis model

QL1070

Engine model

4KH1-TCG40

Engine power

88kw/ 120hp

Clutch system

single disc, dry type, diaphragm spring clutch

Gearbox

5speed +1reverse

Driving axle

2.5T/4.8T

Cabin

ISUZU single row, with A/C

Tire

7.50-16

Vice-fan Engine

Brand

JMC

Rated power

64 kw/78hp

Fuel type

Diesel, share with chassis fuel tank

Draught Fan

Type

high pressure centrifugal specialized draught fan

Rated speed

2600—2900r/min

Actuator type

Driveby vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission

Hydraulic System

Type

open type and electrohydraulic control system

Main part

gear pump, cycloid motor, hydrocylinder, magnetic valve, hydraulic hand pump

Hydraulic relief pressure

15Mpa

Hydraulic oil tank

60L

Spray Watering

Main part

electric water pump, water filtration system, spray nozzle, water tank



Electric System

Composition

Madeof chassis electric system and vice-fan engine with other work operating system

Systemvoltage

12V

Battery model

12-80A.H

Suction Nozzle

Type

U-shaped, Free to move

Diameter

f200mm

Ground clearance in working

5—10mm

Accessories

LED arrows lamp

Schneider Control switch

Draught fan(maintenance-free)

Manual pump emergency system
