Featuring full hydraulic operation, it includes a back pressure valve, high-pressure hydraulic filter, two-way balance valves, and special hydraulic lines for plateau conditions.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
Superstructure Configuration: 10,000 Liters sewage tank, Carbon steel, MORO PM110 vacuum pump

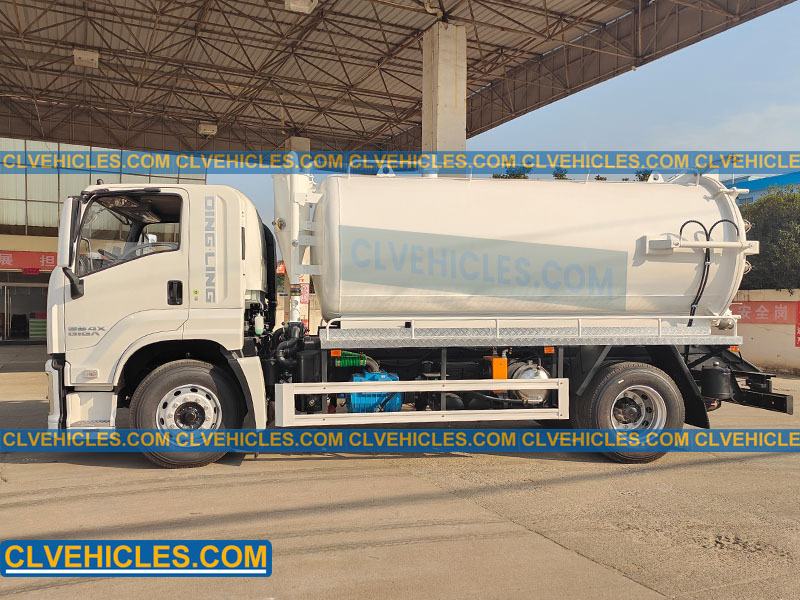

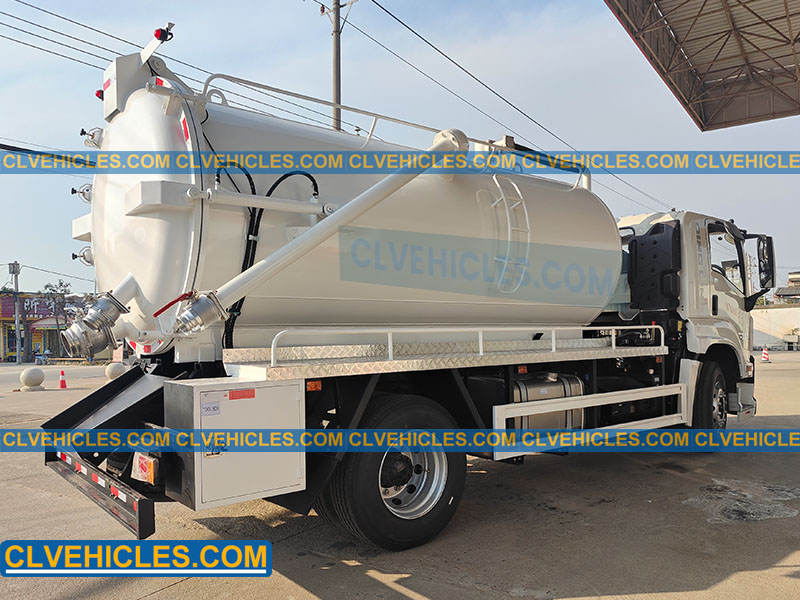

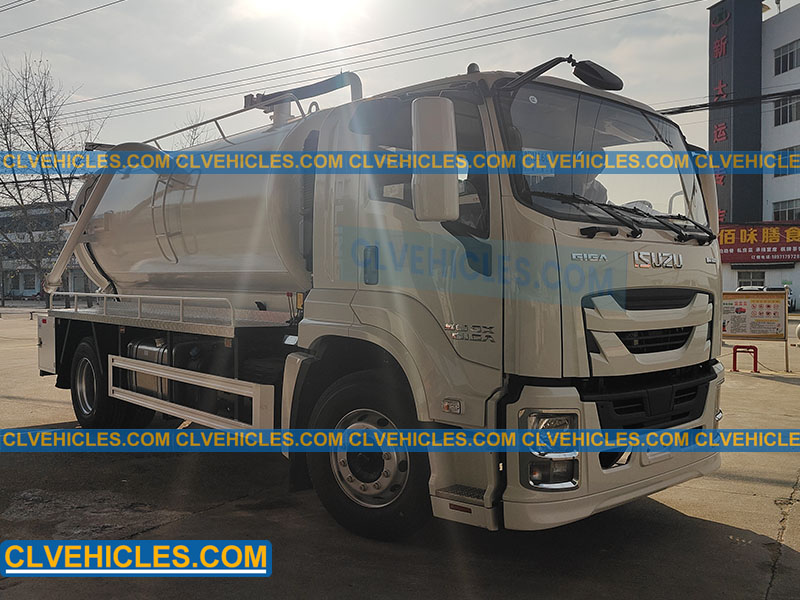

The ISUZU 10CBM Sewage Tank Truck is a high-capacity, heavy-duty vacuum tanker engineered for efficient and reliable sewage and sludge collection in municipal, industrial, and rural sanitation applications.
Built on the robust ISUZU "4X-Class Mini Giga" chassis with a white, air-conditioned cab and right-hand drive, it features a Euro VI-compliant 4HK1-TCG60 engine delivering 205 horsepower—ensuring strong performance, low emissions, and fuel efficiency. The 4x2 drivetrain, 4500mm wheelbase, 6-speed manual transmission, and 295/80R22.5 tires provide excellent stability and maneuverability, while front drum brakes, power steering, and ABS enhance safety.
The 10-cubic-meter tank is fabricated from 6mm-thick carbon steel and internally coated with epoxy anti-corrosion paint to resist chemical degradation and extend service life. Key operational features include three rear sight glasses for waste level monitoring, dual-stage anti-spill protection with a top-mounted overflow valve, hydraulic tank lifting, and hydraulically operated rear cover for quick unloading. A built-in hand-washing station adds convenience for operators after handling tasks.
At the heart of the system is an Italian-made Moro PM110-AP vacuum pump, paired with a dedicated cooling system for sustained high-performance suction. Stainless steel ball valves—DN100 inlet and DN150 outlet—are equipped with protective caps, and a hand throttle at the control panel allows precise engine speed regulation during operation.
Both side platforms are fitted with anti-slip aluminum checkered plates for safe access. Supplied with two 6-meter and eighteen 10-meter (3-inch) suction hoses, the truck is fully ready for immediate deployment. With English-labeled instruments and nameplates, this model is tailored for international markets, combining ISUZU’s renowned reliability with professional-grade sewage handling capabilities for demanding sanitation operations worldwide.
