ISUZU 3000 liter Water Tank Fire Truck
Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
This truck ensures reliable operation during emergency response. Its durable build and large capacity make it ideal for professional fire departments requiring rapid and effective firefighting capabilities.
Brand:
CLVEHICLES.COMModel No.:
CLW5185GXFQ3Minimum Order Quantity:
1 UnitPrice:
USD59000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

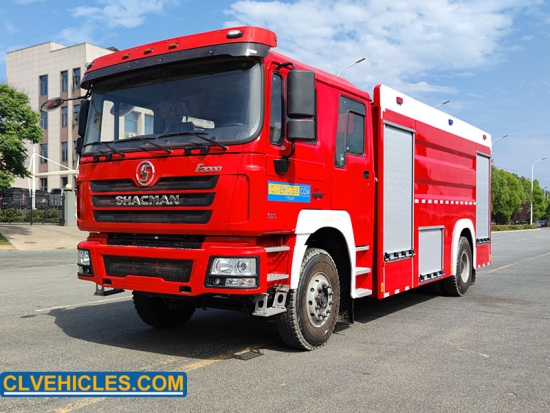

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcSHACMAN F3000 12CBM Water And Foam Tank Fire Fighting Truck
The SHACMAN F3000 300hp 12CBM Water and Foam Tank Fire Fighting Truck is a high-capacity vehicle designed for efficient fire suppression in urban and industrial settings. Powered by a 300hp engine, it offers strong performance and mobility. The 12 cubic meter tank carries both water and foam, enhancing versatility in tackling various types of fires. Equipped with a powerful pump system and advanced safety features.
Quick Details
| Product name |
Fire fighting truck |
|
Water Tank Capacity |
10000L |
|
Foam Tank Capacity |
2000L |
|
Chassis Brand |
SHACMAN |
|
Horsepower |
300hp |
|
Fire Pump |
CB10/60 |
|
Fire Monitor |
PL48 |
Applications
Fire truck is mainly used for fire response tasks, most national fire departments, also use it for other emergency rescue purposes.Fire engines can transport firefighters to disaster sites and provide them with a variety of tools to carry out relief missions.
1.ISUZU chassis and engine , perfect and reliable performance.
2.Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet.
3.Independent fire pump room , ensure the smooth progress of the work.
4.Intelligent control integration system ,mange the working state of appearance directly
5.It is with ISUZU chassis ,perfect performance!
Customer Services
|
Truck Specification |
|||
|
Chassis model |
SHACMAN |
||
|
Cab |
F3000 double row cab, with power steering,with A/C,adjustable seats,electric window |
||
|
Driving Type |
4*2 Left hand driving |
||
|
Max Speed (km/h) |
95 |
||
|
Overall dimension（mm） |
9100x2510x3520mm |
||
|
GVW（kg） |
41000 |
||
|
Mass in working order （kg） |
13600 |
||
|
Wheelbase（mm） |
5600 |
||
|
F/R track base （mm） |
1460/2105 |
||
|
Approach/Departure Angel |
11/20 |
||
|
Tire |
12.00R20 |
||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||
|
Steering |
Hydraulic steering with power assistance |
||
|
Gear box |
RTD-11509C 9-speed with 1 reverse |
||
|
Bridge |
Front axle |
MAN7.5T |
|
|
Rear axle |
MAN16T |
||
|
Engine |
Model |
WP10.300E22 (Euro 2, 300HP) |
|
|
Fuel Type |
Diesel fuel |
||
|
Type |
Water-cooled six-stroke, direct injection, turbocharged |
||
|
Exhaust（ml） |
9726 |
||
|
power/ hp |
300 |
||
|
Torque |
1390N.m |
||
|
Braking system |
Service Brake |
Compressed air brake |
|
|
Park Brake |
Spring energy |
||
|
Auxiliary brake |
engine exhaust brake |
||
|
Electric system |
24V |
||
|
Fuel tank |
300l Aluminum alloy fuel tank |
||
|
Upper body specification |
|||
|
Superstructure |
Water Tank |
Volume |
10000L |
|
Material |
high quality carbon steel plate, |
||
|
Foam Tank |
Volume |
2000L |
|
|
Material |
high quality carbon steel plate, |
||
|
Fire pump |
Type |
Normal pressure fire pump |
|
|
Model |
CB10/60 |
||
|
Pressure: |
1.0Mpa |
||
|
Flow: |
60L/s |
||
|
Suction depth |
≥ 7m |
||
|
Fire monitor |
Type |
Water & Foam |
|
|
Model: |
PL48 |
||
|
Flow |
48L/S |
||
|
Working pressure: |
≦1Mpa |
||
|
Range: |
≥ 60m(water) ≥ 55m(foam) |
||
|
Rotation angle |
360o |
||
|
PTO |
Fire pump driving by Sandwich PTO, take power from engine |
||
|
Pump room |
With pump system and pipeline, reasonable structure. Easily operate. |
||
|
Fire pump dashboard |
Vacuum pressure gauge: Indicating the vacuum inside the pump |
||
|
Pressure gauge: Indicating the pump outlet pressure; |
|||
|
Tachometer: Indicating the pump rotational speed |
|||
|
Liquid level indicator: a set of LEDs indicates the level of liquid |
|||
|
Equipment box |
Install on both side of carriage, for store fire tools. |
||
|
Structure: Full welded frame to ensure intension and rigidity. |
|||
|
Material: frame is Carbon steel, inner aluminum embossed sheet. |
|||
|
Aluminum alloy rolling shutter door with lock for every equipment box |
|||
|
Light |
Warning light: Lightweight Rectangular, installed on the top of cab. |
||
|
Siren:80W. With FM/ Public Address System and megaphone |
|||
|
Equipment box light and pump room light |
|||
|
Rotate floodlight install on the top os pump room |
|||
|
Fire strobe light (blue&red) install on both side of carriage |
|||
|
Customized |
Pump outlet use DN150 valve(connect valve will put at the right side) |
||
|
Color |
Fire Red |
||
|
Other: Rear aluminum alloy ladder 1 set Folded aluminum alloy ladder(9m) Fire tank electrophoretic paint
|
|||
Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
The truck is composed by the tank, pump room, equipment boxes, power output and transmission system, piping systems, electrical systems and other components, widely used in urban public security fire brigades, petrochemical, industrial and mining enterprises, forests, ports and other departments.
Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially. For functions, it is divided into several kinds, including Pump truck, Ladder truck, and other trucks with some special equipment.
Fire truck, also known as fire engines, refer to special vehicles used to perform fire fighting tasks. The fire department in most countries of the world will also use it for other emergency rescue purposes.
Fire fighting truck is specially used for fire fighting vehicles or other emergency rescue purposes. It can be divided into pump truck(water supple vehicle sprinkling water or fire), aerial(high save) and other special vehicles according to their function.
Fire truck, also known as fire engines, refer to special vehicles used to perform fire fighting tasks. The fire department in most countries of the world will also use it for other emergency rescue purposes.
