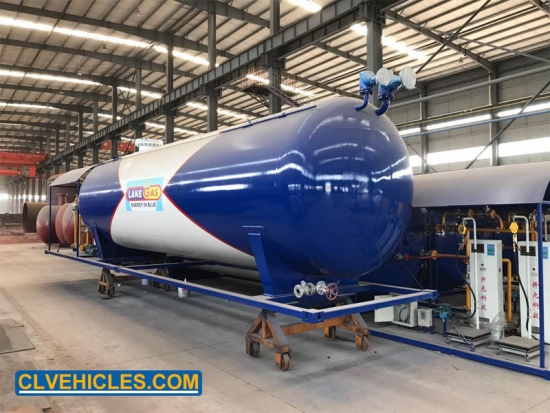

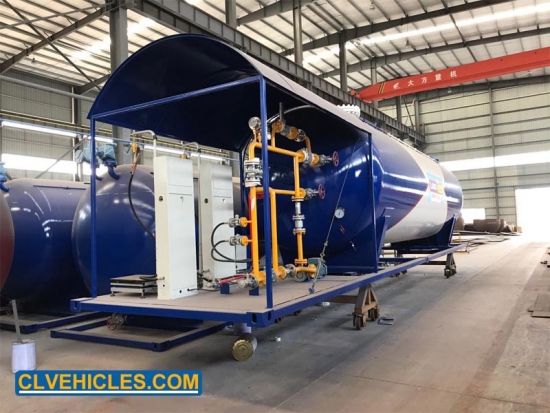

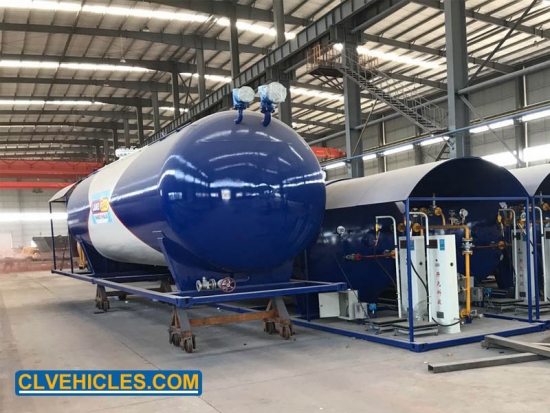

40CBM LPG Skid Station 40,000Liters LPG Filling Station

Nigeria gas filling station consists of a storage tank and two pumps, Pipe section,one pump forms unloading system, another forms filling system, these two systems under fault conditions can be used temporarily.



  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL2019LP25
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD25000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters


Pressure Vessel 40CBM LPG Filling Station 20MT LPG Cylinder Station


Most important Specification of this Coriolis mass meter is :high accuracy ,will not affect any accuracy even in different height or temperature environment,it can measure by mass .It can show 4 units at the same time in LPG dispenser as: liter,gallon,mass,kg

For more function of this kind of meter ,if you are interested ,we can send you details of manual book ,or if you have experience for using EMERSON ,KROHNE,Endress+Hause type mass meter in your market ,you can know our Coriolis mass meter also,we have the same function ,now very popular in the market .



Quick Details



Material of tank Carbon steel Q345R

Propane tank capacity

40000 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


LPG skid station equipped with two hydrocarbon pumps, one unloading pump, one twin screw pump, can be used interchangeably to meet the dump truck, car filling, cylinder filling, flip, sewage, emptying, emergency cut off , Level alarm, leak alarm and other functions.




Competitive Advantages



Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


40 M3 LPG TANK DIMENSIONS

Volume of Tank

40CBM

Filling Weight

15960 kg

Tank Weight

8630 kg

Thickness of Shell (mm)

12mm

Thickness of Endplate (mm)

14 mm

Tank Diameter (mm)

2300 mm

Tank Dimensions (mm) (length x width x height)

10040 x 2324 x 2914 mm

Material of Tank and Main Pressure Parts

Carbon Steel Q345R

Filling Medium

Liquefied Petroleum Gas ( Propane)

Design Pressure

1.77 MPa

Corrosion Allowance

1 mm

Medium Density

500 kg/ M3

Manufacturing Standard:Pressure vessels,Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.

Main parts of LPG Tank

Item

Specification

Quantity

Discharge Pipe

DN80

1

Inflow Pipe

DN80

1

Outlet

DN50

1

Gas phase balance pipes

DN50

2

Manhole

DN450

1

Drain Hole

DN50

1

Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,

Pressure gauge, Temperature Gauge.

Skid Parts List will be show in separated page below.

LPG Skid Part list

Item

Model Number

Quantity (PCS)

LPG Tanker

40CBM

1

LPG Filling scale

/

1

Filling pump (Chinese Brand)

/

1

Motor (Chinese Brand)

/

1

Cut-off Valve

J41N-40 DN50

25
