Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcBEIBEN 6X4 5000L Pressure Under Wing Airplane Refueling Truck

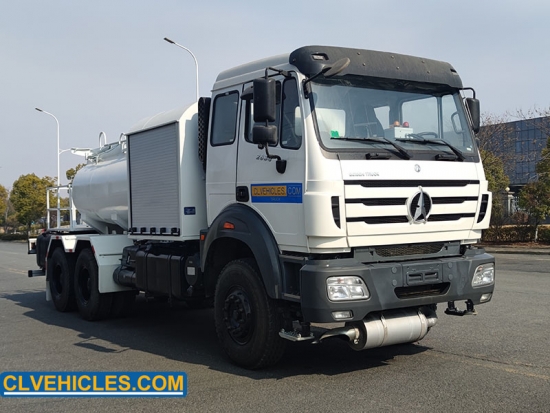

The BEIBEN 6X4 5000L Pressure Under Wing Airplane Refueling Truck is designed for safe and efficient aircraft fueling operations. With a 5000-liter tank capacity and pressure refueling system, it ensures fast and reliable fuel delivery. Built on a sturdy 6x4 chassis, this truck offers excellent stability and traction, ideal for use in airports and aviation bases. It features under-wing refueling capability, meeting international aviation fueling standards. Equipped with safety devices and advanced controls, it provides secure and precise fueling performance in various operational conditions.
Quick Details
|
Chassis Brand |
BEIBEN |
|
Fuel Tank Capacity |
5000L |
|
Material of Tank |
Aluminum steel |
|
Horsepower
|
380hp
|
| Storage |
Aviation kerosene JETA1 |
|
Filling system |
Bottom filling system |
Applications
Fuel tank truck (also called fuel dispensing truck ,oil transfer truck ,diesel truck ,petrol fuel tanker ,crude oil tanker truck , refueler tanker truck ,diesel fuel tanker ,oil tanker ) is used to transport oil , diesel , gasoline ,kerosene,etc. It can be divided into many compartments to transport different types of fuels ,lubricant ,crude oil ,alcohol. Oil pump equipped ,with pump in pump out function
|
|
|
|
The material of tank body is made of 4-6mm thick carbon steel with high quality . Other stainless steel or aluminum alloy is available. |
Can be designed to an independent sub-warehouse to transport different oil with the same time. |
|
|
|
|
All tankers can be equipped with computer and flow-meter |
European standard equipment for option. |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
|||
|
Cab |
BEIBEN NG80 cab with air conditioning |
||
|
Driving Type |
6*4 left hand driving |
||
|
Max Speed (km/h) |
90 |
||
|
Overall dimension (mm) |
8810*2480*3100 |
||
|
GVW (kg) |
25000 |
||
|
Mass in working order (kg) |
11270 |
||
|
Wheelbase (mm) |
4450+1450 |
||
|
F/R track base (mm) |
2022/1830/1830 |
||
|
F/R overhang (mm) |
1578/2090 |
||
|
Approach/Departure Angel |
28/12 |
||
|
Tire |
12.00R20 |
||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||
|
Steering |
Hydraulic steering with power assistance |
||
|
Gear box |
9 speeds + 1 reverses |
||
|
Axle |
Front axle |
7.5T |
|
|
Rear axle |
13/13T |
||
|
Engine |
Model |
WP10.380E32 |
|
|
Fuel Type |
Diesel fuel |
||
|
Type |
Water-cooled, four-stroke, direct injection, turbocharged |
||
|
Exhaust (ml) |
9726 |
||
|
Max output power (hp) |
380 |
||
|
Max torque (N.m) |
1600 |
||
|
Braking system |
Service Brake |
Compressed air brake |
|
|
Park Brake |
Spring energy |
||
|
Superstructure Specification |
|||
|
Fuel tank |
|||
|
Design Volume |
5000L |
||
|
Tank shape |
Ellipsoid |
||
|
Compartment |
Single |
||
|
Material of tank |
Aluminum alloy (5182) |
||
|
Thickness of tank plate |
5.6 mm |
||
|
Thickness of head plate |
5.7 mm |
||
|
Transport medium |
Aviation kerosene |
||
|
Safety accessories |
|||
|
Manhole cover |
European standard cover |
||
|
Breathing valve |
|||
|
Anti-overflow probe |
|||
|
Gas recovery joint |
|||
|
Discharge port and installation location |
1. 50# hydraulic reel with nozzle for fuel truck, 20 meters length, with large character flow meter 0.2 level accuracy, flow rate 500L/min; 2. DN65 hydraulic reel with aviation voltage stabilizing joint , 20 meters ,with large-character flow meter 0.2 level accuracy, flow rate 850L-1200L/min; 3. Explosion-proof lamp; 4. With European standard system, oil and gas recovery and anti-overflow system 5. Coalescing separator (90F/hour); 6. Self-priming centrifugal pump (pump in and pump out) with auxiliary drive shaft driven hydraulic station; 7. 3-inch float level gauge; 8. HYJ-63X connector valve on the left (equipped with oil and gas recovery connector, equipped with four-position three-way) elastic soft connection; 9. Operating equipment box; 10. Remote magnetic switch, hand throttle (including cylinder), in-pipe pressure control valve, Venturi tube, high liquid level control valve, magnetic refueling program controller; 11. Four pressure gauges before (after) filtration, with differential pressure gauge, Venturi pressure gauge and hydraulic pressure gauge; 12. Sampling before/after the filter/sewage discharge (closed circuit sampler); and self-made sampling recovery cylinder; 13. Protective net on the top of the tank, with movable guardrails, ladders inside and outside the tank; 14. 2 pieces of unloading boxes/one piece each of tool boxes/operating boxes; 15. 2 sets of single-bridge folding fenders, side protection/rear protection/pipeline/ball valve /Gaskets/bolts are complete. |
||
The Fuel tanker truck is used for example to transport gasoline to filling stations.Tank trucks are constructed of various materials depending on what products they are hauling. These materials include aluminium, carbon steel, stainless steel, and fiberglass reinforced plastic (FRP).
Very suitable for transporting and refueling gasoline and diesel for cars, big vehicles, motor, and other engineering mechanism.
For oil tank truck, according to the transport medium, the configuration and different places, there are many different titles, such as: tanker, tank truck, oil tanker,refueling truck, tax-control refueling truck,fuel tanker, Petrol tanker, coal tar carrier, lube oil carrier, crude oil transporter, heavy oil transporter, oil transporter and so on.
Oil tankers mainly transport liquid objects such as water, petroleum, fuel, diesel, asphalt and some chemical liquids, such as asphalt, sulphuric acid, etchant, etc.Because of tankers transport liquid has great particularity, CLVEHICLES.COM produced specifically for these problems for production, oil tank truck tank welding, welding interface without defects, accessories are well-known brands at home and abroad, to ensure the safety and reliability of the tanker.
Fuel tank trucks are able to carry multiple products at once due to compartmentalization of the tank into 2, 3, 4, 5, 6 or in some rare cases more tank compartments. This allows for an increased number of delivery options. These trucks are commonly used to carry different grades of gasoline to service stations to carry all products needed in one trip.
Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
