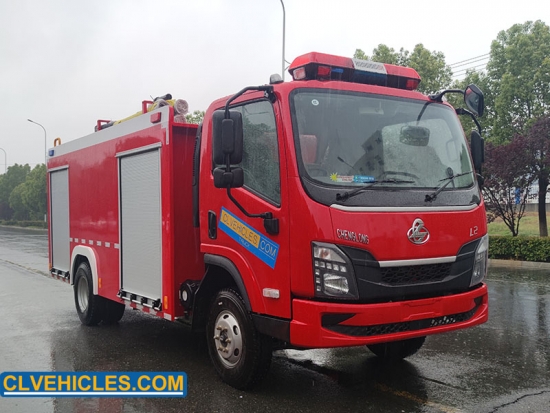

CHENGLONG 5CBM Middle Pressure Foam Fire Fighting Truck

Special Function

Water Tank

Capacity

4300L

Material

Q235 Carbon steel, 4mm

Configuration

1. Welding, there is clapboard inner,no less than 3 compartment

2. Water level indicator

3. Two manholes, With quick locking and opening device

4. One overflow valve device

5. One level Indicator

6. One drain outlet

7. One air breather valve

Foam tank

Capacity

Not less than 300L

Material

Q235 Carbon steel, 4mm

Configuration

One manhole, With quick locking and opening device

There is a way to send foam solution into the foam mixing system with a shut-off valve that can be controlled at the fire extinguishing system control panel or according to the manufacturer's standard

One level Indicator

Type

Middle & normal pressure fire pump, two stage impeller

Model

CB20.10/15.30

Flux

1800L/m @ 1MPa, 900L/m @2MPa

Pressure

1MPa and 2 MPa

Inlet Diameter

Ф100mm

Outlet Diameter

Two Ф80mm (3 inches) outlets

Two Ф65mm (2.5 inches) outlets

Water Intake Time

≤35s

Suction depth

7m

Material

Stainless steel

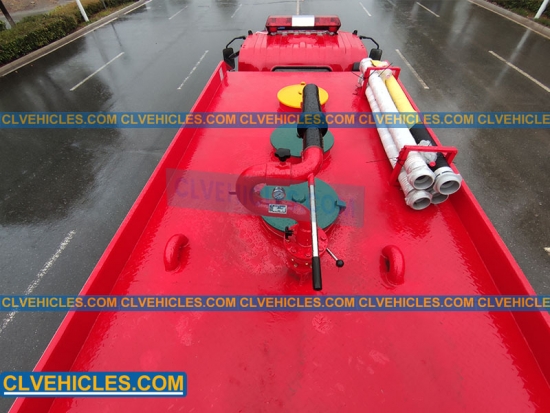

Water/foam monitor can adjust the spray to be a fine stream

Can rotate and spray horizontally not less than 360 degrees (continuously without end) Adjust the spray angle down not less than 10 degrees and lift the angle up not less than 80 degrees

1) There is a foam pumping system used with the foam mixing set to distribute foam solution in all directions to the outside. The foam flow rate can be adjusted.

2) The foam mixing set can be used with all types of foam solution without causing damage or damage.

Use sandwich PTO, splashing-type lubricate, can put out fire when driving.

Cabinet is made of galvanized steel

On the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.

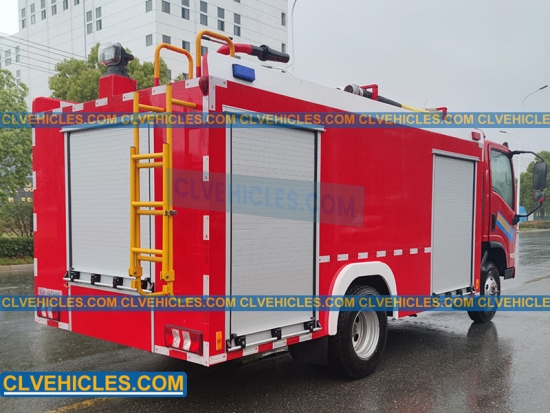

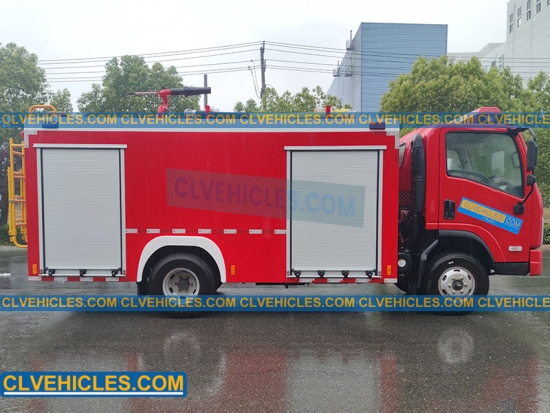

Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.

1) There is a way to pump water from an external water source of not less than 3 inches with a ball valve system installed, with a diameter of not less than 3 inches, at the rear of truck not less than 1 set

2) There is a water suction way from a water tank of not less than 3 inches with a ball valve system installed, with a diameter of not less than 3 inches, 1 set, installed according to the manufacturer's standards

3) Discharge water supply, not less than 2.5 inches, 2 sets, with a ball valve system installed, with a diameter of not less than 2.5 inches, 2 sets, installed at the rear of the tank

4) Water supply for the water monitor, not less than 2.5 inches, with a ball valve system installed, with a diameter of not less than 2.5 inches, 1 set

5) The ball valve is a high-quality product, ball valve type

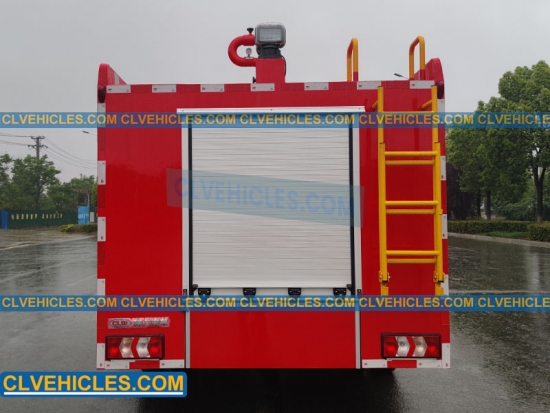

A foot pedal is installed at the rear for climbing up the stairs to control the spraying of the water gun platform. The foot pedal is lined with non-slip aluminum or stainless steel with a non-slip pattern.

There is a steel ladder for climbing up to control the spraying of the water gun platform, installed at the rear of the vehicle.

Red color

1.Fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle.
2.Tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle.
3.The outside is very beautiful, the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle.
4.All operating switch and meter is accord with standard nameplate.
