ISUZU 3000 liter Water Tank Fire Truck
Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Ideal for urban and industrial emergency response, this truck combines mobility, water capacity, and aerial capability in one unit.
Brand:
CLVEHICLES.COMModel No.:
CLW5161GXFMinimum Order Quantity:
1 UnitPrice:
USD78600Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcCHENGLONG M3 300hp 5ton Water Fire Truck With Aerial Platfrom

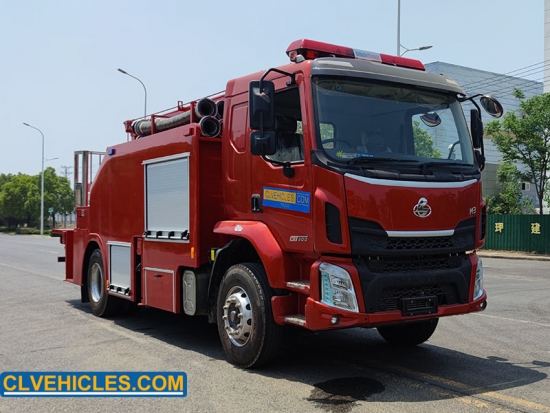

The CHENGLONG M3 300hp 5-ton Water Fire Truck with 14m High Aerial Platform is a powerful and versatile firefighting vehicle. Equipped with a 300hp engine and a 5-ton water tank, it delivers strong performance for extended fire suppression operations. The 14-meter aerial platform provides elevated reach for rescues and high-angle firefighting. Its durable build and advanced safety features ensure reliability and operator protection in demanding situations.
Quick Details
| Product name |
Fire fighting truck |
|
Water Tank Capacity |
5000L |
|
Foam Tank Capacity |
- |
|
Chassis Brand |
DONGFENG CHENGLONG M3 |
|
Horsepower |
300hp |
|
Fire Pump |
CB10/50 |
|
Fire Monitor |
PS50+PS40 |
Applications
Fire truck is mainly used for fire response tasks, most national fire departments, also use it for other emergency rescue purposes.Fire engines can transport firefighters to disaster sites and provide them with a variety of tools to carry out relief missions.
1.ISUZU chassis and engine , perfect and reliable performance.
2.Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet.
3.Independent fire pump room , ensure the smooth progress of the work.
4.Intelligent control integration system ,mange the working state of appearance directly
5.It is with ISUZU chassis ,perfect performance!
Customer Services
|
Chassis Specification |
||
|
Chassis Model |
M3 Euro 5 |
|
|
Chassis Manufacturing Date |
Year of 2024 |
|
|
Cab |
M31RBS flat-top cab, single bed-room, mechanical M31RBS flat-top single-bedroom cab, mechanical full-floating cab suspension, manual hydraulic flip, mechanical vibration damping driver's seat, electric doors and windows, remote control central lock, air conditioning, outer sunshade; multi-state switch, cab power Switch, PTO switch, same color bumper + fender |
|
|
Driving Type |
4x2 Right hand driving |
|
|
Max Speed (km/h) |
90 |
|
|
Overall Dimension (mm) |
8000×2500×3300 |
|
|
GVW (kg) |
18000 |
|
|
Curb Weight( kg) |
7450 |
|
|
Wheelbase (mm) |
4500 |
|
|
Clutch |
Φ430mm, hydraulic control with air booster, side pushing |
|
|
Tire |
Type |
11R22.5 |
|
Nos |
6+1 pieces |
|
|
Gear box |
Model |
9JS119T-B |
|
Type |
Manual |
|
|
Forward Speeds |
9 |
|
|
Rear Speeds |
1 |
|
|
Axle |
Axle Nos |
2 |
|
Front/rear axle loading (kg) |
7000/12000 |
|
|
Spring |
Front/rear spring |
3/4+3 |
|
Engine |
Brand |
Yuchai |
|
Model |
YCS06300-50 |
|
|
Emission Standard |
EURO 5 |
|
|
Fuel Type |
Diesel fuel |
|
|
Cylinder Nos |
6 |
|
|
Output Power (kw) |
221 |
|
|
Exhaust(ml) |
6230 |
|
|
Max torque/max torque speed (N.m/rpm) |
1200/1200-1700 |
|
|
Braking System |
|
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake. |
|
Electric system |
24V, 120Ah（2） |
|
|
Special Function |
|||
|
Tank |
Water Tank |
Capacity |
4000L to 6000L |
|
Material |
Q235 Carbon steel |
||
|
Configuration |
1. Welding, there is clapboard inner. 2. Water level indicator 3. One manhole, With quick locking and opening device 4. One overflow valve device 5. One level Indicator 6. One drain outlet 7. One air breather valve |
||
|
Fire Pump |
Type |
normal pressure fire pump |
|
|
Model |
CB10/60 |
||
|
Flux |
60l/s@1MPa |
||
|
|
Suction port |
Φ150mm |
|
|
|
Outlet |
Two Φ80mm outlets, two Φ65mm outlets |
|
|
Water Monitor |
Model |
PS50 |
|
|
Flow |
50 L/S |
||
|
Covering range |
≥ 65m |
||
|
Pitching Rotation Angle |
-35°~ 75° |
||
|
Horizontal Swing Angle |
0 ~360° |
||
|
|
Position |
Located at platform |
|
|
Electric water monitor |
40L/s, located at front of bucket, electric control and manual control |
||
|
PTO |
Sandwich PTO, splashing-type lubricate, can put out fire when driving. |
||
|
Equipment Locker |
Equipment Locker is made of high-quality steel and Aluminum embossed sheet |
||
|
Pump room |
On the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. |
||
|
Rolling Shutter Door |
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. |
||
|
Color |
Red color |
||
|
Technical Requirement |
1.Fire
fighting vehicle is accord with GB7965 Performance requirements and test
methods for fire fighting vehicle. |
||
Fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
The truck is composed by the tank, pump room, equipment boxes, power output and transmission system, piping systems, electrical systems and other components, widely used in urban public security fire brigades, petrochemical, industrial and mining enterprises, forests, ports and other departments.
Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially. For functions, it is divided into several kinds, including Pump truck, Ladder truck, and other trucks with some special equipment.
Fire truck, also known as fire engines, refer to special vehicles used to perform fire fighting tasks. The fire department in most countries of the world will also use it for other emergency rescue purposes.
Fire fighting truck is specially used for fire fighting vehicles or other emergency rescue purposes. It can be divided into pump truck(water supple vehicle sprinkling water or fire), aerial(high save) and other special vehicles according to their function.
Fire truck, also known as fire engines, refer to special vehicles used to perform fire fighting tasks. The fire department in most countries of the world will also use it for other emergency rescue purposes.
