DFAC 5000L 4x2 High Pressure Industrial Sewer Jet Trucks

DONGFENG 5cbm small volume high pressure jetting and flushing trucks are mounted on 2-axles truck chassis. Combined with the function of waste suction and cleaning.



  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5081XLCA1
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 25700
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

 DONGFENG 5000 Liters Small Volume Top Quality Vacuum Jetting Flushing Trucks


The Vacuum truck models have been designed using the latest technology specifically for local operating conditions. Each model in the range is built to handle the toughest cleanups, including sewerage, line cleaning, industrial sumps and slurries, wet ash, excavation material, and toxic waste or other dangerous materials. Each is designed with focus on a specific application, and there is definitely a model available to meet your requirements.



Quick Details



Tank Capacity

5CBM

Tank Material

Carbon Steel

Chassis brand

DONGFENG

Horsepower of Engine

115hp

Vacuum Pump Brand

Italy BP/ Weilong/ Domestic Pump

Color

As requirements


Applications


These powerful and efficient vacuum tank truck are designed to vacuum up and recover a wide range of different materials, from liquids, solids, thick sludge , all while leaving the surface below safe and clean.
Vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.

Vacuum Truck



Competitive Advantages


1, The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO).

2, The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.

3. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.

4, The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.

5, Italy or Spain vacuum pumps ,Stainless steel, Anti-rust coating inside tank if necessary.


Product Details

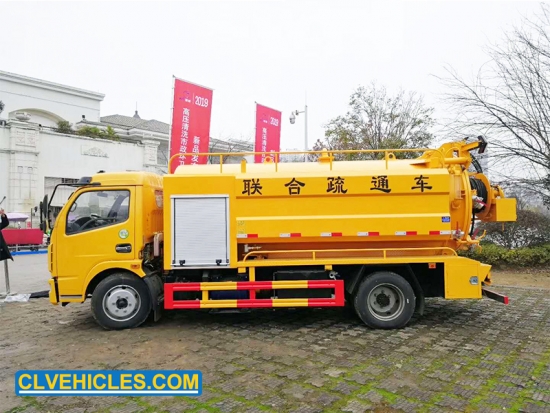

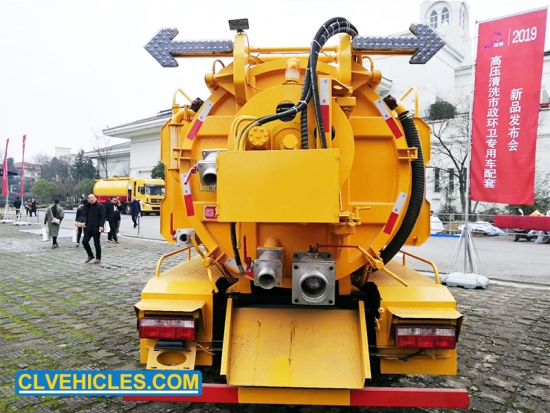

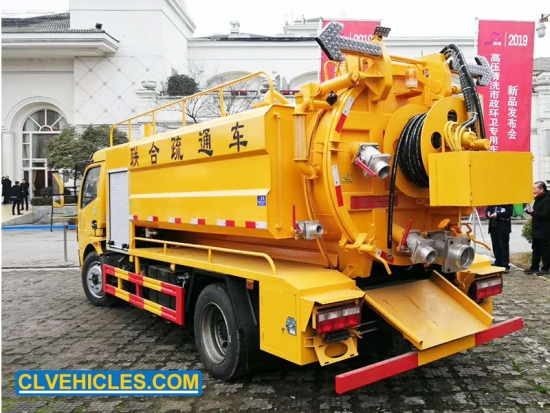

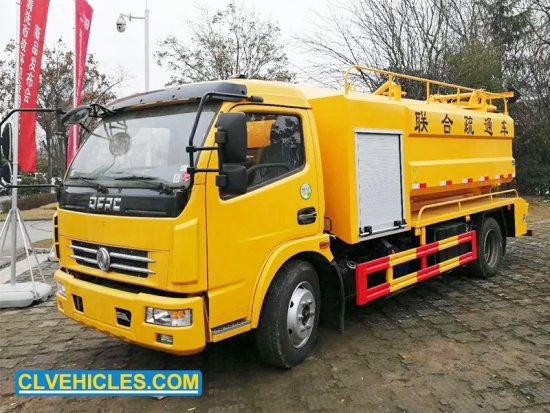

 Vacuum Truck


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.


Sewage suction truck


Product Parameters



Chassis Specification

General

Chassis Brand

DONGFENG

Overall dimension

6600*2200*2860mm

GVW

11000kg

Mass in working order

5800kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating or cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YC4F115-30

Power

115HP7.00R16 14PR

Displacement

2650ml

Emission Standard

Euro 3

Chassis

Drive Type

4*2 (left hand driving)

Transmission

Manual

Wheelbase

3300 mm

Tire

7.00R16(6+1)

Max Speed

95km/h

Electric system

24v

Upper-Body Specification

Upper body

Body capacity

5cbm

Material

Carbon Steel

High Pressure Pump

Italy   Pump  16MPa

China  Pump  24Mpa

Flow Speed

120L/Min

Hose

High Pressure hose 60m

Hose reel

Auto

Suction head

6m

Nozzles

A cluster of nozzles included

Standard accessories

Warning lights,Music alarm,Basic tool kit

Optional

Back alarm and Camera can be equipped.
